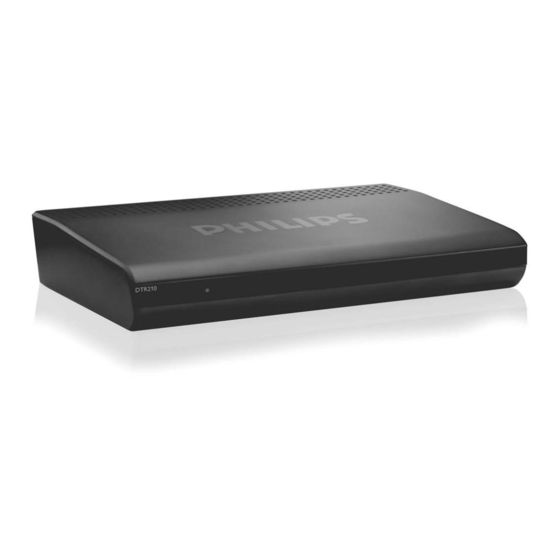

Digital Set Top Box
DTR 210
User Manual
Thank you for choosing Philips.
Need help fast?
Read your User's Manual first for quick tips that make using your Philips
product more enjoyable.
If you have read your instructions and still need assistance, you may access
our online help at www.philips.com/support
or call
0906 1010 016 (£0.15/minute)
Advertisement
Table of Contents
Related Manuals for Philips Digital Set Top Box DTR210
Summary of Contents for Philips Digital Set Top Box DTR210
- Page 1 User Manual Thank you for choosing Philips. Need help fast? Read your User’s Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support or call 0906 1010 016 (£0.15/minute)
-
Page 2: Table Of Contents
Contents Quick Start Guide ..... 3 Connecting to a Television ..... 3 Connecting to a Television and Recorder . -
Page 3: Quick Start Guide
Quick Start Guide Connecting to a Television UHF Aerial RF in connector Connecting to a Television and Recorder UHF Aerial Example TV set, rear panel SCART input on TV SCART to SCART cable (supplied) SCART output to TV Set Top Box rear panel Example TV set, rear panel SCART input on TV SCART to SCART... -
Page 4: Introduction
Introduction Thank you for purchasing this product which has been designed and manufactured to give you many years of trouble-free service. About This User Manual This user guide contains all the information you need to know about how to setup and watch available 'Freeview' channels using your set top box. -
Page 5: Environmental Markings
The "Green Dot" affixed on cardboard means PHILIPS pays a financial duty to the "Avoidance and Recovery of Packaging Waste" organization. NTRODUCTION... -
Page 6: Getting Started
- User Manual (This publication) If any of these items are damaged or missing, please contact us at: Philips CE, The Philips Centre,Surrey 0906 1010 016 (£ 0.15/min) Please make sure that you have the model number of your set top box, before contacting us. The label showing the type and serial number is underneath your receiver. -
Page 7: Digital Set Top Box
Digital Set Top Box Front view IR Receiver / Red LED, Normal Operation - off, Standby - on Rear view RF in from Aerial Mains Adaptor Plug this into a 230V AC outlet socket The Remote Control Using the Remote Control To use the remote control, point it towards the front of the set top box. -
Page 8: Connecting Your Digital Set Top Box To Other Equipment
Connecting Your Digital Set Top Box to other equipment The following diagrams are of typical configurations only, and may differ slightly to your existing external equipment. If you are unsure on how to connect to your set top box, always consult your manufacturer's user guide supplied with your equipment. Connecting to a Television and DVD player UHF Aerial Set Top Box rear panel... -
Page 9: Connecting To A Tv And Audio Equipment
Connecting to a TV and audio equipment UHF Aerial connector Set Top Box rear panel Example audio equipment, rear panel Example TV set, rear panel SCART input on TV SCART to SCART cable (supplied) RF Out SCART connec- output RF In to TV Set Top Box Power Supply Adaptor... -
Page 10: Switching On For The First Time
Switching on for the first time 1 Connect your equipment according to the appropriate system diagram given on the previous pages and power up/turn on the equipment. During initialisation the indicator on the front panel will flash red for a few seconds and then remain off. If the indi- cator is red (stand by) press the Power key on the remote control. -
Page 11: Using The Set Top Box
Using the Set Top Box Channel List The Channel List presents a list of all channels found dur- ing the channel search described earlier. The list com- prises radio and TV channels. They have been allocated a channel (reference) number and are listed in this numeri- cal order. -
Page 12: To Lock A Channel
Remote key Press once Press twice Press three times Press four times Press five times Press six times Press seven times Press eight times Press nine times 5 Use to step along the characters of the name and modify each as required. The new name can be shorter or longer than the existing name. -
Page 13: Changing Channels
Changing Channels You can change channels by using any of the following methods: Channel browse keys Use the P+ and P- keys (channel up/down) to browse up and down the available channels. Number keys (0-9) The complete channel number must be entered within 3 seconds of the first digit entry. -
Page 14: Parental Settings
Parental Settings The Parental Setting feature allows you to password pro- tect groups of menus or allow access to all menus. 1 Use to highlight Parental Settings. 2 Press and enter the Lock Key when asked for it (default is 0000). The window below displays: 3 Use to step through and display the available options:... -
Page 15: Electronic Program Guide
6 Use the number keys (0 - 9) to set the start time 7 Use to step to the End time. 8 Use the number keys (0 - 9) to set the end time 9 Use to step to the Date. 10 Use the number keys (0 - 9) to set the date 11 Press to apply changes and move the entered data to... -
Page 16: Favourites
Favourites When Favourites are enabled (see the Configuration win- dow earlier), then only the channels that you selected as your favourite channels will be stepped through when you use the channel browse keys, P+ and P-. Note: Even with Favourites enabled, you can still choose from all available channels by either entereing the channel number by using the Number keys or from the service list. -
Page 17: Troubleshooting
Troubleshooting If you experience an operating problem with your Digital Set Top Box, please refer to the trouble-shooting table below and then the notes that follow. Symptom No picture and no sound No picture or picture is blocky in appearance Sound but no picture Cannot receive station that you could receive before... -
Page 18: Technical Data
Technical Data General - DVB terrestrial Free-To-Air receiver compliant to EN 300 744 - MHEG5 and LCN support - UHF frequency range support - Video and Audio out via 2x SCART - Digital audio out - Fast channel search - Reed-Solomon decoding support (EN 300 744) - Automatic FEC selection (1/2, 2/3, 3/4, 5/6, 7/8) - MPEG2 Transport Stream support: ISO/IEC 13818-1 - DVB-Video/-Audio support: ISO/IEC 13818-2, -3... -
Page 19: Guarantee
Guarantee This set top box is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials or workmanship, the set top box will either be replaced, a refund given or repaired free of charge (where possible) during this period by the dealer from whom you purchased. - Page 20 3111 176 53261...
