Exibel C2664SC SONY 420TVL Instruction Manual

Security Camera
Art.no 36-4811 Model C2664SC SONY 420TVL
Please read the entire instruction manual before use and save it for
future reference. We reserve the right for any errors in text or images
and for making any necessary technical changes to this document.
If you should have any questions concerning technical problems please
contact our Customer Services.

Product description

• 1/4" Sony CCD image sensor
• 12 infrared night-vision light-emitting diodes
• BNC connector for connection to a video system such as DVR
system 36-4793
• Swivel and tilt wall/ceiling bracket
• For indoor and outdoor use
• Extension cable
• BNC to RCA adaptor
• Mains adaptor

Safety

• The camera must not be connected a power supply exceeding
12 V.
• The mains adaptor is for indoor use only.
• Never disassemble the camera or any of its accessories. Certain
components inside the casing carry dangerous electrical current.
Contact with these could result in electric shock.

Assembly

Even though the camera is designed for outdoor use, it should be
installed under cover such as the eaves of your roof if possible to
protect it from excessive rain and snow. It should also be located away
from direct sunlight and dusty environments.
GREAT BRITAIN · For consumer contact, please visit www.clasohlson.co.uk and click on customer service.
English

Installation

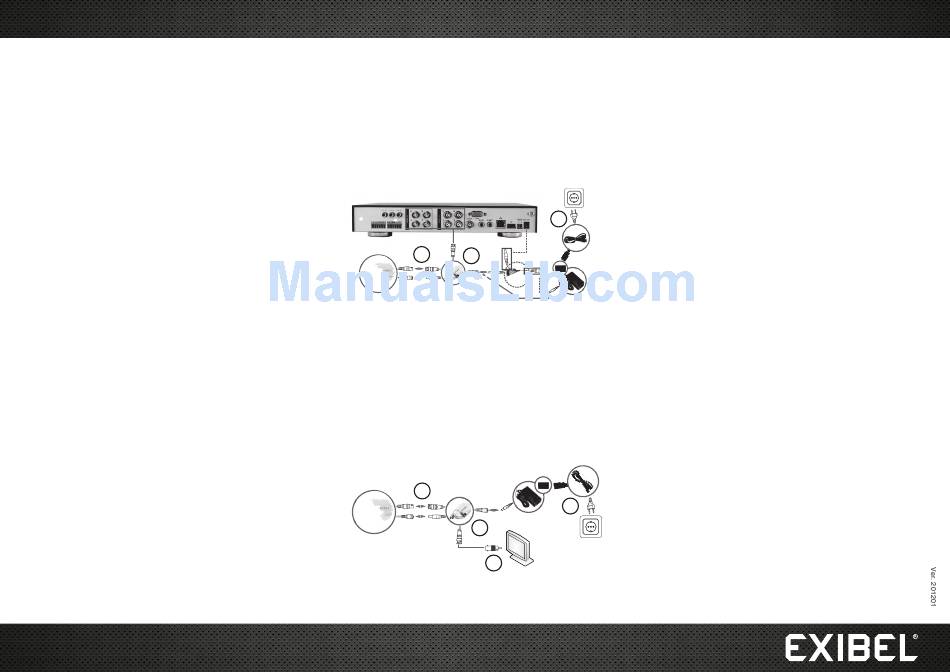

Example 1: Connecting to a DVR system
1. Connect the camera's connection cables to the supplied extension
cable.
2. Connect the extension cable to the included mains adaptor (or to
the power output feed from the mains adaptor which is connected
to DVR system) and connect the BNC connector to one of
the video recorder's VIDEO-IN sockets.
3. Connect the mains adaptor to a wall socket.
1
2
Example 2: Connecting to a TV
1. Connect the camera's connection cables to the supplied extension
cable.
2. Connect the power connector on the end of the extension cable
to the included mains adaptor and connect the BNC connector to
the included BNC-RCA adaptor.
3. Connect the extension cable to the RCA VIDEO-IN socket on
your TV.
4. Connect the mains adaptor to a wall socket.
5. Set your TV to receive video signals from the RCA VIDEO-IN.
Read your TV set's instruction manual for details.
1
2
3

Disposal

This product should be disposed of in accordance with local regula-
tions. If you are unsure how to proceed, contact your local authority.

Specifications

Image sensor
Effective pixels
Signal system
Sync system
3
Horizontal resolution
Lens
Minimum illumination
Backlight compensation
Gain control
Shutter speed
White balance
Signal to noise ratio
Video output
Power supply
IR LEDs
Infrared range
Operating temperature
4
1/4" SONY CCD
PAL: 500 (H) × 582 (V)
NTSC: 510 (H) × 492 (V)
PAL/NTSC
Internal
420 TV lines
3.6 mm
0 lux
Auto
Auto
1/50 (1/60)-1/100,000 (s)
Auto
>48 dB (AGC off)
1.0 Vp-p, 75 Ω (BNC)
12 V DC
12 pcs
15 m
–10 to +50 °C
