Summary of Contents for Mingda Glitar 4

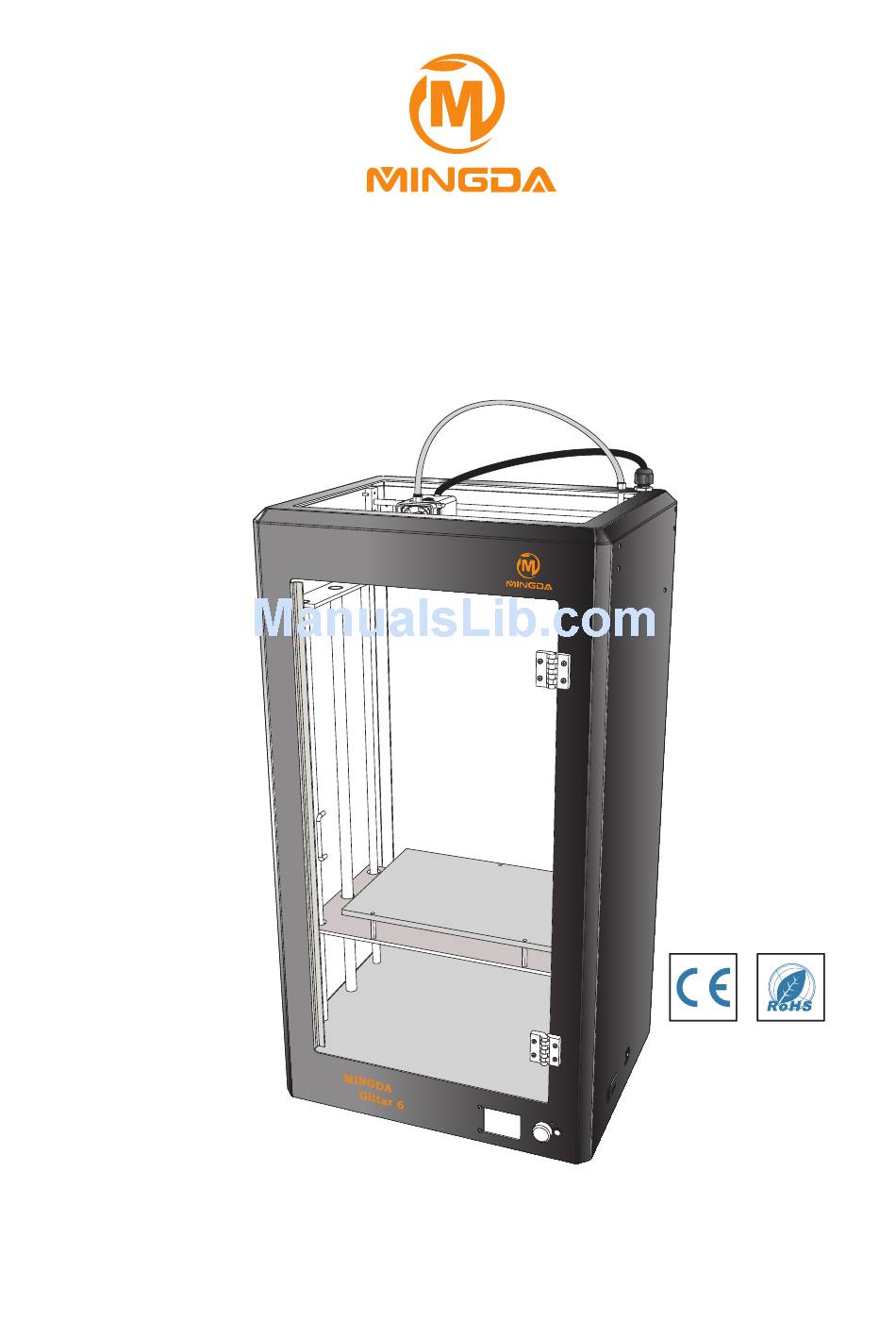

- Page 1 Glitar Series Desktop 3D Printer User Guide MINGDA Technology Co.,LTD...
- Page 2 Overview Material tube Extruder Door Metal housing Knob Power switch Material bracket Control knob Power inlet USB port SD card Display Model Dimensions(H×W×D)mm Print range(H×W×D)mm Glitar 4 Glitar 5 Glitar 6 825×450×360 600×300×200...
-
Page 3: Installation
Unpack 35kg Installation Disassemble screws Assemble screws on opposite... - Page 4 Install hot bed Note: Because Mingda 3D printer is very exact, in case of hot bed has deviation during transportation, hot bed was packed individually. Install material bracket&filament material Insert filament material to tube SD Card Power Connect power cable...
- Page 5 Welcome-MING DA-15.3262 5:23:28 25 00 25/0 SD: No SD file to print! PreheatABS PreheatPLA Back ClearBed ClearHead OFFLINE Rotate control knob to Select PreheatPLA, temperature option, press control knob. change the nozzle temperature to 200°C, select Back to return main interface. Once temperature is up to Once melting wire flows out 200 °C, press retainer, and...
- Page 6 If gap is too large or too less, it needs to adjust the stopping switch. Printing Welcome-MING DA-15.3262 5:23:28 200 00 200/0 SD: Mingda OFFLINE SD Card Power Select Choose File(*.gcode) Mingda1.gcode Mingda2.gcode Mingda3.gcode Mingda4.gcode Mingda5.gcode Insert SD Card LastPage...
- Page 7 Installing Cura 14 version and guide...
- Page 8 Range 0.1~0.2 It’s not available for ABS material.
- Page 9 FAQ&Solutions Printing Problem Q1: The filament doesn't stick onto the build plate. - A1: The gap between nozzle and build plate is too big. - A2:The build plate has not been leveled yet. - A3: Kapton tape has not been sticked on the build plate yet; or the non-sticky top layer of the Kapton tape is not removed.
- Page 10 2. The deformation of machine framework caused by external force during the transportation. 3. The cable connection of X.Y motor is loose.Please open the machine base, check and re-connect the cable. Mingda Technology Co.,Ltd. Address: MinLe Technical Building,Minle Industrial Zone, Meiban Road, Longhua New district,Shenzhen,Guangdong Province, China.
