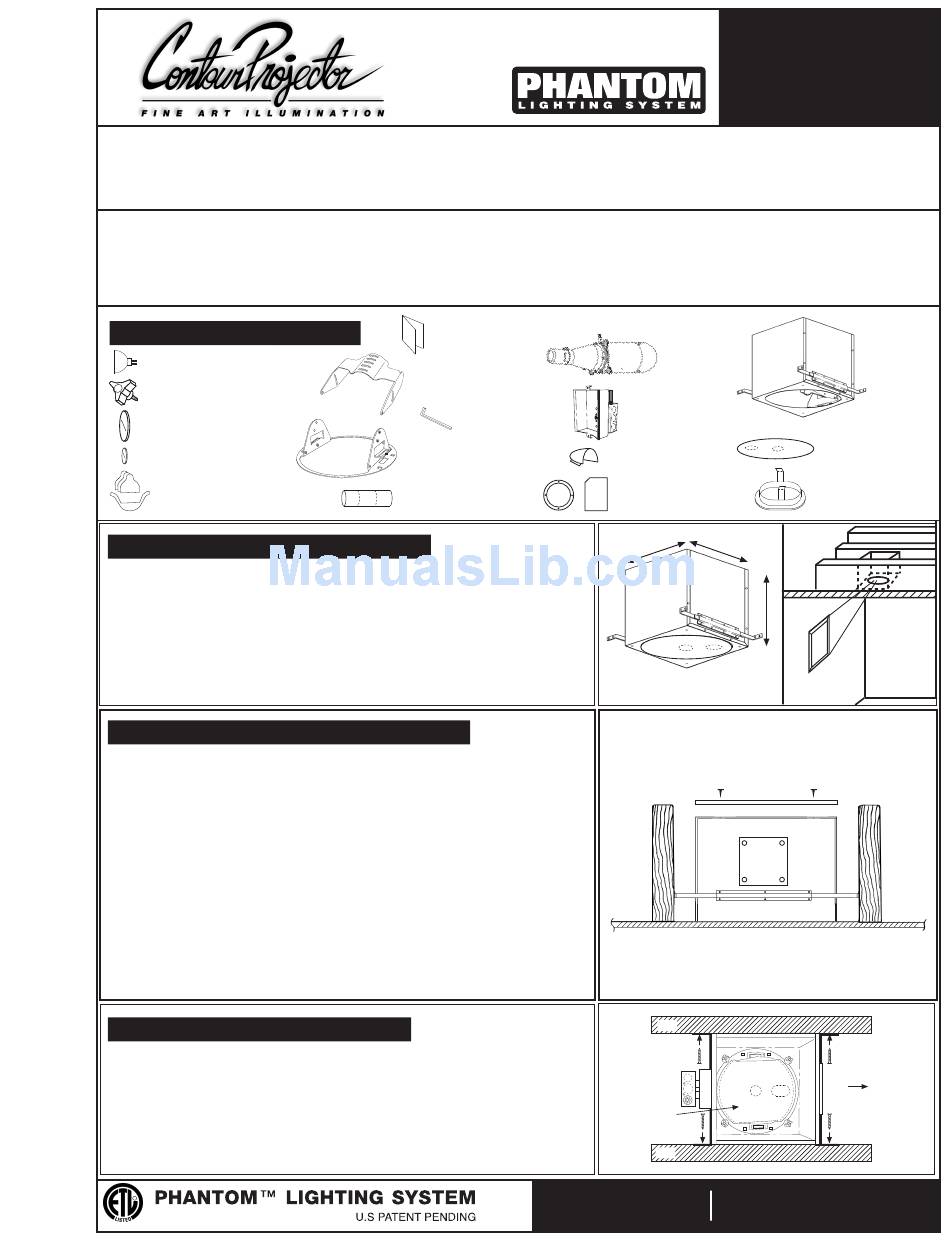

Phantom Tech Projector User Manual

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To ensure full compliance with local
codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box
before proceeding. Retain these instructions for maintenance reference. TECHINCAL SUPPORT (800) 863-1184 8am-4pm CDT M-F
INSTALLATION PROCEDURE FOR PHANTOM TOP–ACCESS FIXTURE
REMOVE THE FIXTURE AND MOUNTING HARDWARE FROM THE CARTON. IDENTIFY ALL PARTS AND READ THE FOLLOWING
ASSEMBLY INSTRUCTIONS BEFORE PROCEEDING WITH THE INSTALLATION. THE INSTRUCTIONS ARE IN A STEP BY STEP SEQUENCE
FOR CORRECT AND EASY ASSEMBLY. PLEASE FOLLOW THE SEQUENCE! SAVE THE CARTON AND ALL PACKING MATERIALS UNTIL
JOB IS COMPLETE. SAVE THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE!
1. COMPONENTS CHECK LIST
(1) MR 16 Lamp (EYC)
(3) Black Knobs
(2) Condensing Lenses
(3) Focal Lenses
(3) Sets of Shutters
2. DETERMINE MOUNTING LOCATION
A projector supplement has been provided to illustrate projector
performance, location and beam configurations. Determine the
exact location and verify adequate space between rafters and
depth of ceiling cavity to accommodate housing before
proceeding. Because this a custom installation a second person
might be required to assist in the application.
3. INSTALL HOUSING / ATTIC ACCESS ONLY
Once you have determined the best location for the projector,
go into the attic to see if you have the area necessary to install
the housing. Using a Philips head screwdriver make a hole in
the best location for the projector trim. After making your hole
go to the floor below and check to see if it is in the correct
location. Keep the hole that you made with the screwdriver in
the center of the elongated hole in the heat shield. Adjust the
housing forward or backward as needed. The mounting arms
are turned inwards for shipping purposes, rotate the arms to
the outward position so that you will have a better drilling
position for your mounting screws. Extend the mounting arms
to fit snuggly between joists and screw into place. Tighten the
three hex head screws to anchor the arms and secure to
housing.
4. CUT OPENING FOR CUSTOM TRIM
Using the heat shield and a key hole saw, cut around edge of
appropriate knock out hole as clean as possible. Elongated
hole is for angle aiming and the center hole is for vertical
aiming. It is OK if the housing and projector are not centered
on painting. The projector works perfectly at angles off center
of art. For vertical appplications no trim is provided.
R
ETL LISTED, LUMINAIRES TO UL STD 1598
& TRACK LIGHTING TO UL STD 1574
C US
73355
(1) Projector Supplement
(1) Mounting Cradle
(1) Allen Wrench
(1) Rotating Ring
(1) Breakaway Cone
ILLUMINATIONS
L i g h t i n g D e s i g n
INSTRUCTION SHEET
TA SERIES
TOP-ACCESS
U.S.. PATENT PENDING
(1) Projector
(1) Junction Box
(1) Glare shield
(1) (Optional) Slide
12" 12"
9"
Joist
Heat Shield
Joist
607 Durham Drive
Houston, Texas 77007-5316
Tel: 713-863-1133 / Fax: 713-863-0044
(1) Housing
(1) Heat shield
(1) Custom Trim
Art
