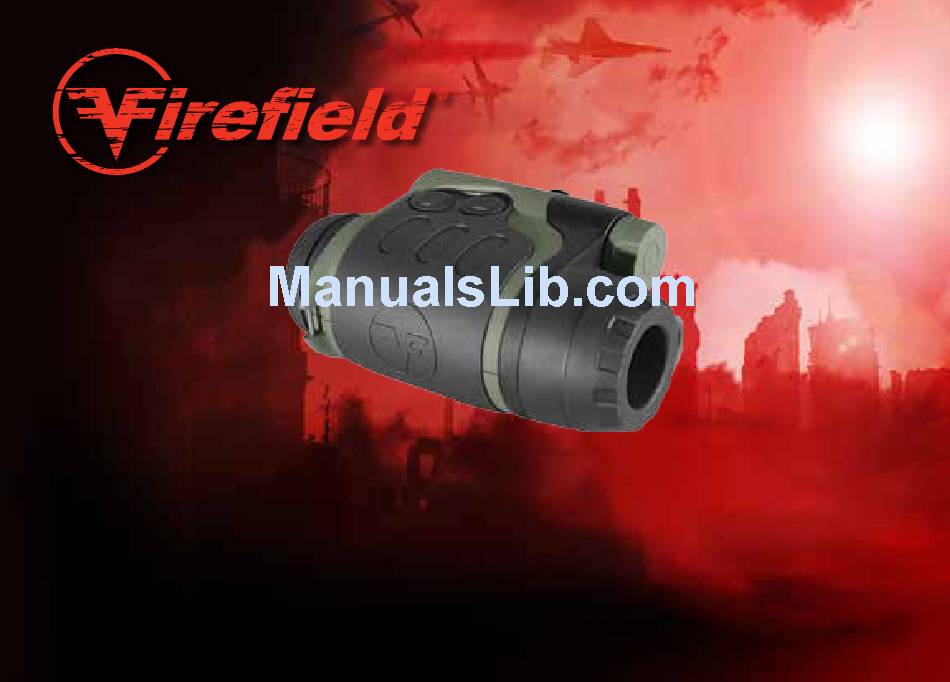

- Page 1 ® *FF24125 shown Spartain Night Vision Monocular/Goggles USER MANUAL FF24122WP/FF24125/FF24127...
- Page 2 Engineered for high intensity, fast-paced situations, from paintball games to tactical training simulations to home defense, Firefield products are designed for the next generation shooter and serious gun enthusiast. Our goal is to provide optimal solutions for demanding tactical, hunting and competitive training situations.
- Page 3 The device can also accommodate accessories like IR Flashlights. Firefield Spartan is equipped with two 1⁄4 inch tripod mounts that allow fixing the monocular onto a head mount and use as goggles. This device features excellent ergonomics, compact dimensions and handy controls.
- Page 4 DIAGRAM 1) Lens cap (attaches to side of unit) 2) IR button 3) On button 4) Eyepiece 5) Objective lens...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICATIONS FF24125 FF24122WP FF24127 Generation Visual Magnification, x Objective Lens, mm Resolution, lines/mm Angular field of view, degree Max detection range*, m Eyepiece adjustment, dptr ±4 ±4 ±4 Operating voltage, V 3(1xCR123A) 3(1xCR123A) 3(1xCR123A) Tripod mount, in Operating time (IR on), hour Degree of Protection, IP code IPX6/IPX7 (acc. -
Page 6: Warnings And Precautions
• light level. • Your Firefield Spartan was designed to be self-contained. Do not open the body of the scope or otherwise attempt to service this device. If such need arises return the unit for replacement or repair. -
Page 7: Battery Installation
Spartan ‘s warranty! BATTERY INSTALLATION Your Firefield Spartan runs on a single CR123A battery. To install, unscrew the battery compartment cover, insert the battery into the battery compartment observing the marking on the cover of the battery compartment, replace the battery cover carefully. Do not overtighten. - Page 8 • Direct your Firefield Spartan at an object to be viewed and adjust the final focus by rotating the objective lens focusing ring until the image is optimal. When screwing the objective lens into the housing, it focuses on farther objects, when screwing out - on closer ones.
- Page 9 CAUTION Your Firefield Spartan can be used in extreme cold. However, when the unit is brought back into a warm environment, you MUST wait approximately 2-3 HOURS before using the unit again. Failure to do so may result in damage as a result of condensation accumulating on the internal circuitry of the unit.
- Page 10 HEAD MOUNT DIAGRAM 1) Mounting screw 2) Adapter plate 3) Horizontal adjustment knob 4) Vertical adjustment knob 5) Release Button OPERATION 1. Adjust the size of the mask to fit your head using the straps. The mount must closely fit your head. 2.
-
Page 11: Maintenance
• Clean the lens with professional lens cleaning supplies intended for use with multicoated optics. • Blow any dust or dirt off the lenses using dry, compressed air. • Clean the Firefield Spartan housing with a soft, clean cloth coated in some synthetic cleaning means. -
Page 12: Troubleshooting
TROUBLESHOOTING The scope will not turn on... Check that the battery is installed properly. Install the battery according to the (+) and (-) polarity, ensuring that the markings on the battery and battery compartment correspond with one another. Check the battery contact to ensure it is clean and free of corrosion; if necessary, clean the contact. Make sure that the external contact lug is not bent. - Page 13 Bright light sources, such as headlights, may cause visibility to decrease or disappear and the image to flicker. Turn the power off and turn the scope away from the light source; visibility will restore itself in several minutes. FIREFIELD WARRANTY Please visit www.fire-field.com for warranty details and information.
