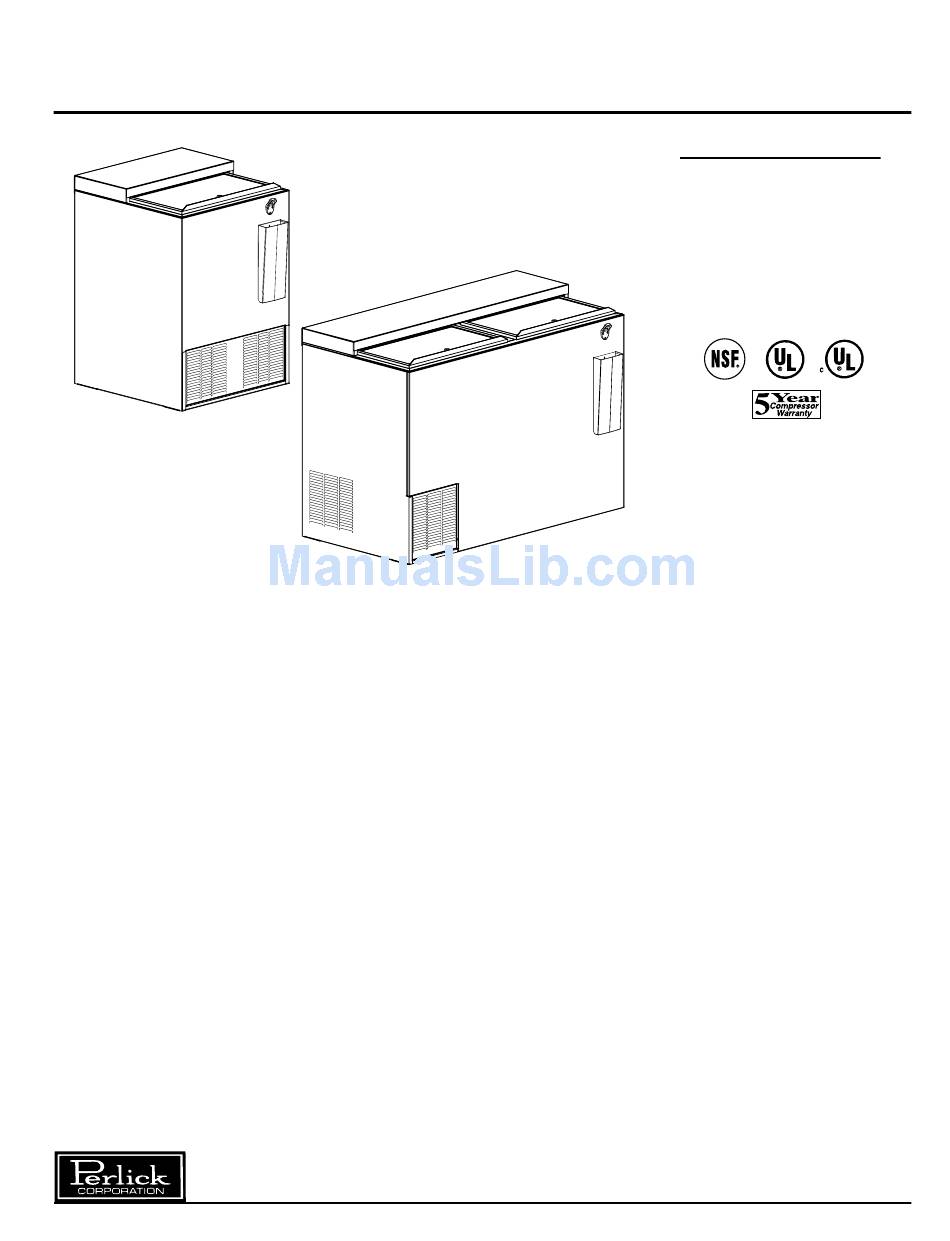

INSTALLATION AND OPERATION INSTRUCTIONS
FLAT TOP BOTTLE COOLER
IMPORTANT INFORMATION
This manual has been prepared to assist you in the
installation of your Bottle Cooler and to acquaint you
with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, call Perlick at
1-800-777-7267 or your dealer who can provide you
with a list of qualified service agents. For your own
protection, never return merchandise for credit with-
out our approval.
We thank you for selecting a Perlick product and
assure you of our continuing interest in your
satisfaction.
IMPORTANT WARRANTY INFORMATION
A Warranty card is enclosed that must be completed
and mailed to the Perlick Corporation to register the
warranty. If the card is not returned to Perlick, the
warranty period will begin from the date the
equipment is shipped from the factory.
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
MODEL NOS.
Table of Contents
Cabinet Specifications ..........................................2
Installing
Uncrating and Inspection ................................3
Plumbing .........................................................3
Electrical..........................................................3
Adjusting Partitions .........................................3
Installing Casters and Legs.............................3
Placing the Cabinet.........................................3
Sealing to the Floor.........................................3
Temperature Control .............................................4
Cleaning the Cabinet ............................................4
Wiring Diagram .....................................................5
Replacement Parts ............................................6/7
BC24 Series
BC36 Series
BC48 Series
BC60 Series
BC72 Series
BC96 Series
Form No. Z2219
Rev. 4.15.06
