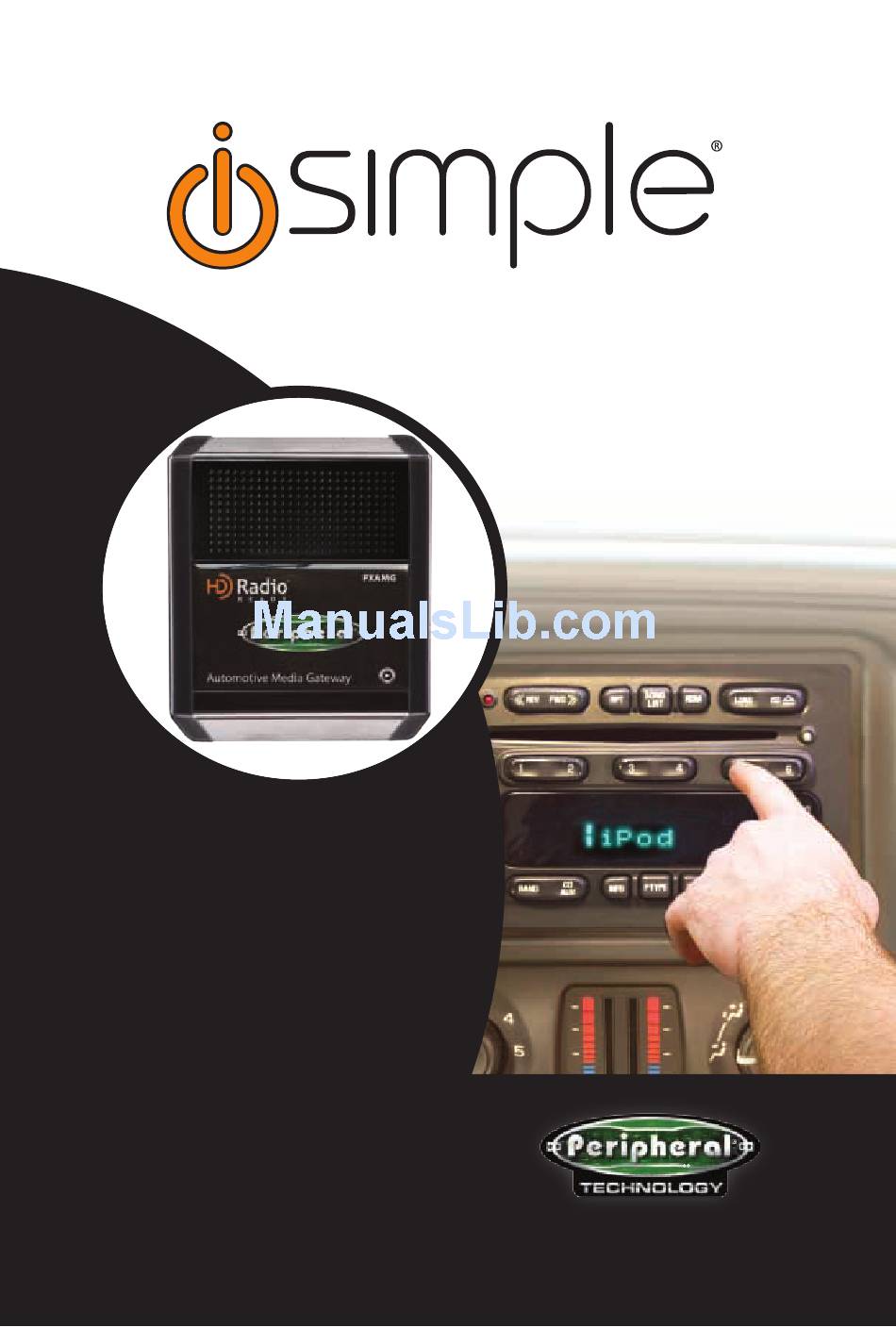

Expand Your Factory Radio
GM
Owner's
Manual
Owner's Manual
Media Gateway
PXAMG
Media Gateway
PGHGM5
PXAMG
Peripheral Electronics
Peripheral Electronics
a division of AAMP of America™
a division of AAMP of America™
13160 56th Court Clearwater, Florida 33760
13160 56th Court Clearwater, Florida 33760
Ph. 866-788-4237
Ph. 800-477-2267 ext. 230
support@peripheralelectronics.com
support@peripheralelectronics.com
©2007 AAMP of Florida, Inc.
©2008 AAMP of Florida, Inc.
add
iPod
,
,
®
®
®
Rev. 05-05-08
Inst007
Advertisement
Table of Contents
Related Manuals for Peripheral Electronics PGHGM5
Summary of Contents for Peripheral Electronics PGHGM5
- Page 1 Expand Your Factory Radio Owner’s Manual Owner’s Manual Media Gateway PXAMG Media Gateway PGHGM5 PXAMG Peripheral Electronics Peripheral Electronics ® ® a division of AAMP of America™ a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13160 56th Court Clearwater, Florida 33760 Ph.
-
Page 2: Table Of Contents
7. HD Radio Operation Selecting AUX Input Selecting Factory Satellite (if equipped) Troubleshooting Warranty Info Peripheral Electronics a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2008 AAMP of Florida, Inc. Pages (if equipped) ®... - Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included iPod Media Gateway Harness Not Included Part #: PGHGM5 Media Gateway Part #: PXAMG 11Ft. iPod Cable 3Ft. HD Radio Cable HD Radio Tuner (sold separately) Part #: HDRT...
-
Page 4: Introduction
1. Introduction ® Thank you for purchasing the Peripheral Electronics Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway. -
Page 5: Compatibility Notes
3. Compatibility Notes This section will inform you of the specific requirements for your factory radio to be compatible with the Media Gateway. These notes will inform you of any issues or circumstances that can affect the compatibility of our product with your radio, audio system, or accessories. -
Page 6: Installation
HD Radio tuner. Connect the factory antenna cable into the antenna connection on the HD Radio tuner (HDRT). 6. Plug in the male connectors on the PGHGM5 harness into the 24 & 12-pin port on the back of the radio. Next, connect the factory 24 & 12-pin harness (if present) into the female connectors on the PGHGM5 harness. -
Page 7: Ipod Operation
6. iPod Operation Entering Mode Select Menu Leave and re-enter the XM source to enter the mode select menu. This can be accomplished by pressing the “BAND” button to switch to FM, AM and then again to switch back to “XM”. Once in the mode select menu, turn the rotary knob until “iPod” is displayed. - Page 8 Browse by Artist Press Preset 3 to enter the browse menu. ”PL: LIST” will appear on your display. Turn the rotary tune knob until ARTIST is displayed. Press Preset 3 to select browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order.
- Page 9 Browse by Album Press Preset 3 to enter the browse menu. ”PL: LIST” will appear on your display. Turn the rotary tune knob until ALBUM is displayed, Press Preset 3 to select browse by Album. The Albums on your iPod will be displayed one at a time in alphabetical order.
- Page 10 The Albums from the selected Artist will be displayed one at a time in alphabetical order. “AL” will be displayed in front of the name of the album to indicate you are searching for an album. Turn the rotary tune knob to cycle through the albums. Once the desired album is displayed, Press Preset 3 to select the desired Album.
-
Page 11: Hd Radio Operation (If Equipped)
7. HD Radio Operation Entering Mode Select Menu Leave and re-enter the XM source to enter the mode select menu. This can be accomplished by pressing the “BAND” button to switch to FM, AM and then again to switch back to “XM”. Once in the mode select menu, turn the rotary knob until “HD Radio”... -
Page 12: Selecting Aux Input
8. Selecting AUX Input Entering Mode Select Menu Leave and re-enter the XM source to enter the mode select menu. This can be accomplished by pressing the “BAND” button to switch to FM, AM and then again to switch back to “XM”. Once in the mode select menu, turn the rotary knob until “AUX 1”... -
Page 13: Troubleshooting
10. Troubleshooting Symptom Cause Radio shows iPod iPod cable is not not connected connected to iPod or Gateway. The iPod firmware I can not correctly control the iPod may be out of date. through the radio. I have updated my Sometimes the iPod’s firmware iPods needs to be... -
Page 14: Warranty Info
All parts of this Peripheral Electronics product are guaranteed for a period of 1 year as follows: Within the first 12 months from date of purchase, subject to the conditions above,... - Page 15 Notes _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
-
Page 16: Ph. 800-477-2267 Ext
Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2008 AAMP of Florida, Inc.
