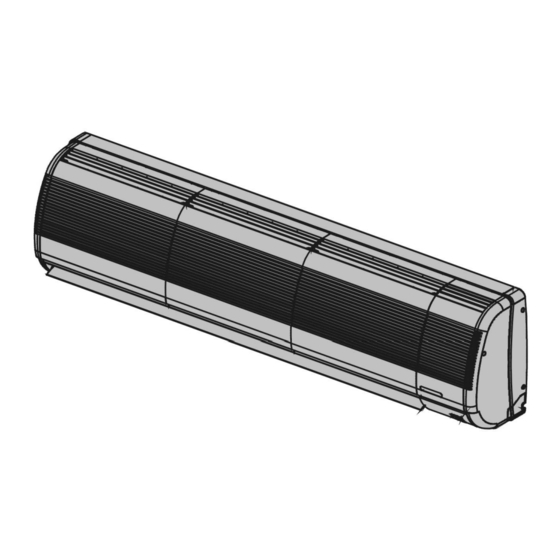

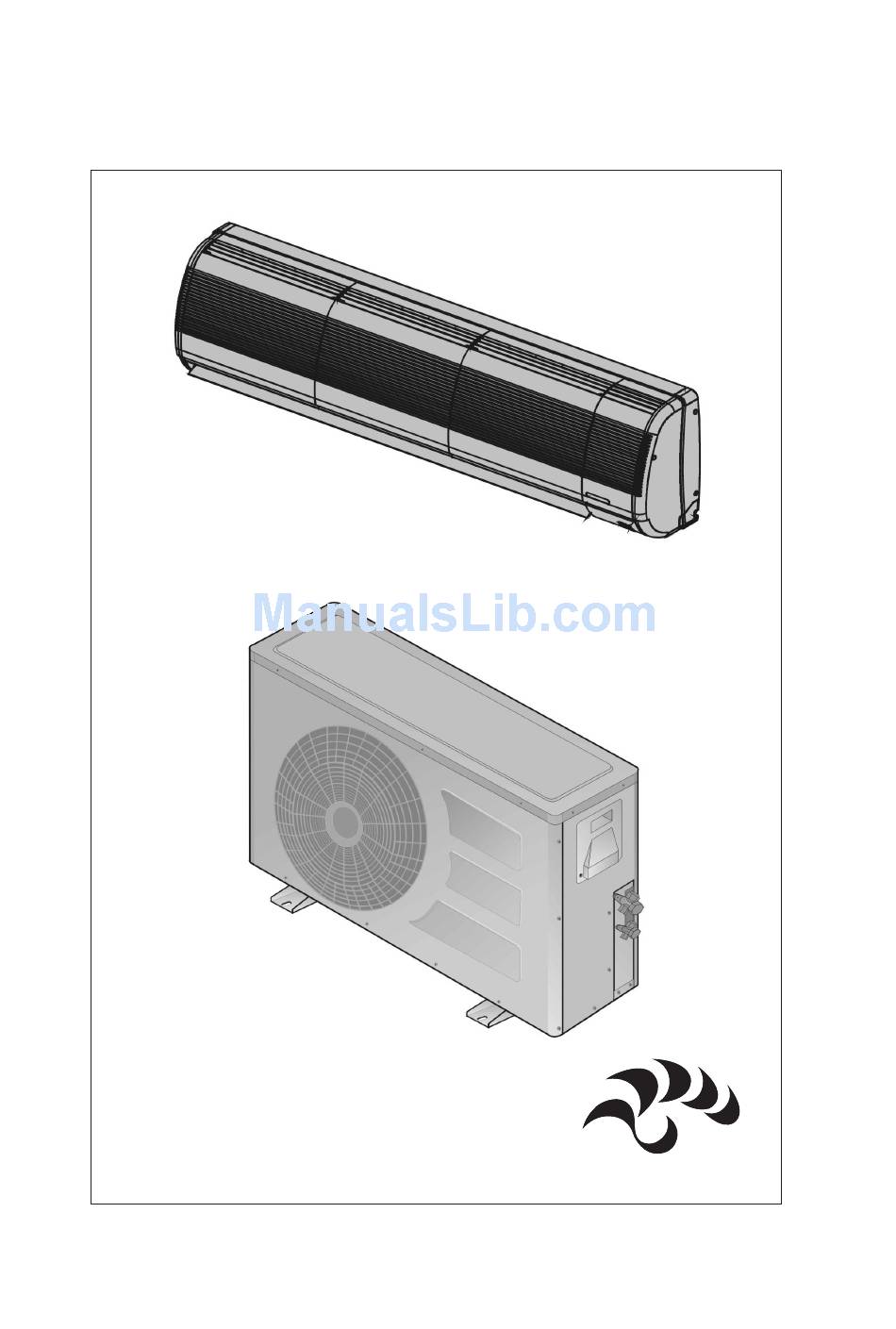

- Page 1 SPLIT WALL-MOUNTED AIR CONDITIONER EMAILAIR MODELS: WS 090C / WS 090H / WS100H I N S T A L L A T I O N I N S T R U C T I O N S...
- Page 2 ACCESSORIES SUPPLIED LOCATION OF INDOOR AND WITH THE AIR CONDITIONER OUTDOOR UNITS Select the location considering the following: Shape Name Used for INDOOR UNIT 1. Choose a location which will provide good air circulation. Ensure that Mounting Wall mounting no objects or furnishings prevent air circulation. rail of indoor unit 2.
- Page 3 Fig. 3 1. To attach 2. To remove Fig 4 Fig. 4 Fig 3 1. Mounting pads (x4)
-
Page 4: Electrical Requirements
REFRIGERATION TUBE ROUTING 1. There are four possible routes for installing the refrigeration tube as shown. ELECTRICAL REQUIREMENTS 2. For routes (2) or (4), cut the side notches in the left or right panel. Electrical wiring and connections should be made by qualified electricians and in accordance with local electrical codes and regulations. -
Page 5: Condensate Hose Connection
PENETRATION OF WALL FOR TUBING 1. Mark the location of the hole on either side, according to tubing routings, as shown. and drill it at a 5˚downward angle, as shown. 2. The hole is drilled at an angle to prevent condensed or rain water from penetrating back into the room. - Page 6 ELECTRICAL CONNECTIONS Fig. 13 1. Terminals 2. Cover 3. Cable tie BETWEEN INDOOR AND OUTDOOR UNITS 1. To connect the indoor unit with the outdoor unit use the following electrical cables, protected for outdoor use: SINGLE PHASE MODELS (see Fig. 14a) Cooling and heating model: Multi wire cable : 5 wires x 2.5 mm²...
-
Page 7: Refrigerant Tubing
Tightening TUBE SIZE TORQUE torques of unions 30-35 N.M. Liquid line 3/8" and valve caps: 50-54 N.M. Suction line 1/2" 75-78 N.M. Suction line 5/8" REFRIGERANT TUBING Suction line 3/4" 80-100 N.M. Fig 16 Fig 17 Fig 18 CONNECT THE INDOOR TO THE OUTDOOR UNIT The indoor unit contains a small quantity of Helium. -
Page 8: Final Tasks
FINAL TASKS 1. Replace all valve caps and ensure that they are tightened properly. 2. Fill gaps on the wall between hole sides and tubing with sealer. 3. Attach wiring and tubing to the wall with clamps where necessary. 4. Operate the air conditioner together with the customer and explain all functions. - Page 9 HEAD OFFICE 745 Springvale Road Mulgrave, Victoria 3170 Tel: (03) 9271 3505 Fax: (03) 9271 3515 VICTORIA MULGRAVE 745 Springvale Road Mulgrave, Victoria 3170 Tel: (03) 9271 3534 Fax: (03) 9271 3540 NEW SOUTH WALES SILVERWATER 46-48 Derby Street Silverwater, NSW 2128 Tel: (02) 9202 0444 Fax: (02) 9202 0488 QUEENSLAND...
