Summary of Contents for FUJICA Auto Strobo 300X

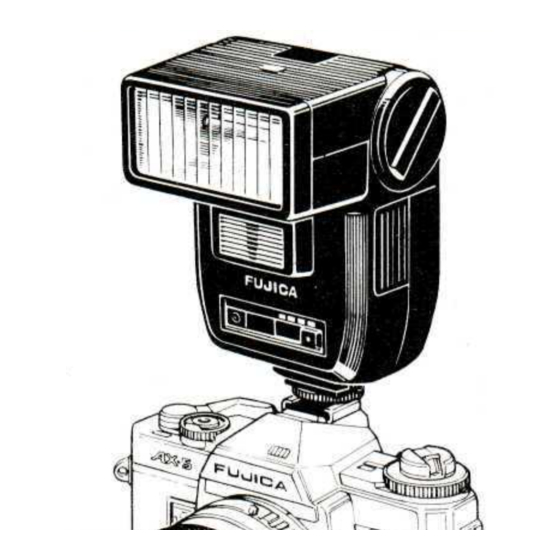

- Page 1 FUJICA AUTO STROBO 300X OWNER'S MANUAL This manual will show you how to use your FUJICA AUTO STROBO 300X correctly. Please read it through carefully.
-
Page 2: Special Features
SPECIAL FEATURES 1. Your Fujica Auto Strobo 300X is a high-power series-circuitry computer flash (guide number 30). It provides an option of three apertures to let you freely take automatic flash pictures. For example, if you want to take long-range flash shots, you can use a large aperture and shoot at up to 11 meters. -
Page 3: Specification
SPECIFICATION Series-circuitry computer flash. Type Connection Hotshoe and clip-on type with safety lock. 30 (ISO/ASA 100 m) with new batteries, 30 seconds after the neon lamp turns on. Guide Number Guide number for bounce flash: 25 for main light, 6 for sublight. Flash Duration 1/1,000 ~ 1/30,000 sec. -
Page 4: Names Of Parts
NAMES OF PARTS Auto Check Lamp Main Lamp Face Battery Compartment Cover Sub Lamp-Face Sensor Auto/Manual Switch (Distance Selector) Wheel Lock Tilting Angle Scale Flash Guide Disk Flash Ready Lamp Main Switch Test Button... -
Page 5: Loading The Batteries
LOADING THE BATTERIES • Battery type Use four penlight batteries (AA size). Alkaline-manganese batteries are recommended because of their long service life. • Recycle time will be longer in cold weather because temperatures will reduce bat- tery efficiency. Try to keep the batteries warm in cold weather by carrying them in your coat pocket until they... -
Page 6: Battery Life
3. Turn on the Main Switch. If the red Flash Ready Lamp (located in the center of the Flash Guide Disk) turns on in a few seconds, the batteries are properly loaded. 4. After checking the batteries, be sure to turn off the Main Switch. -
Page 7: Mounting The Flash On The Camera
MOUNTING THE FLASH ON THE CAMERA 1. Turn off the Main Switch. 2. Loosen the Wheel Lock by turning it counterclockwise, grip the bottom part of the flash and clip the Strobo Foot into the camera's accessory shoe. Make sure the foot goes all the way in because the flash might not function properly if it is only part of the way in. -
Page 8: Setting The Film Speed
Setting the Strobo's Distance Selector Set the Distance Selector on the Strobo front to either the red, green,or yellow mark. These marks represent the following shooting distances: 1 . 5 - 10.7m ( 5 ~ 3 5 f t . ) Green 1 —... - Page 9 • If the Auto/Manual Switch is set to M, your Auto Strobo 300X will work as a manual- operation flash having a guide number of 30 (ISO/ASA100 m). To find the correct aperture,...
- Page 10 Test But- ton to make sure the Auto Check Lamp turns on. 5. When the flash head is tilted, the Auto Strobo 300X will automatically convert into a twin flash. For bounce flash, a sublight located below the...
- Page 11 OFF-CAMERA FLASH OPERATION It is possible to use Auto Strobo 300X away from the camera by means of the PC synchro cord supplied. When employed in this way, always ensure that the total...
- Page 12 FUJI PHOTO FILM CO., LTD. 26-30, Nishiazabu 2-chome, Minato-ku, Tokyo 106, Japan. <Fuji Film Abroad> In North America FUJI PHOTO FILM U.S.A., INC. 350 Fifth Ave., New York, N.Y. 10118, U.S.A. FUJI PHOTO FILM CANADA INC. 743 Renaud Ave., Dorval, P.Q- Canada H9P 2N1 FUJI PHOTO FILM HAWAII, INC.
