16
P/N 99460100 Rev E - 01/15/08
AquaLumin
®
II - Nicheless Light Installation Guide
®
AquaLumin
Installation Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Section
Contents
1. Installing a mounting bracket and light fixture during new vinyl pool construction...........3
2. Replacing light fixture in existing pools......................................................................7
3. Replacing a lamp only..............................................................................................10
Parts List / Replacement Part Kits........................................................................13-15
Minimum Qualifications
•
Licensed or Certified Electrician
•
Electrician or Qualified Pool Serviceman
•
Qualified Pool Serviceman or Homeowner
IMPORTANT NOTICE
This AquaLumin II light will install only with the following AquaLumin II Mounting Brackets,
manufactured after JUNE 6, 1994:
AquaLumin II Vinyl Mounting Bracket Assembly 1"
AquaLumin II Vinyl Mounting Bracket Assembly 3/4"
Mounting
spacer
Mounting
bracket
AquaLumin II - Manufactured after June 6, 1994
P/N 99460100 Rev E - 01/14/08
II - Nicheless Light
(P/N 78887800)
(P/N 78887700)

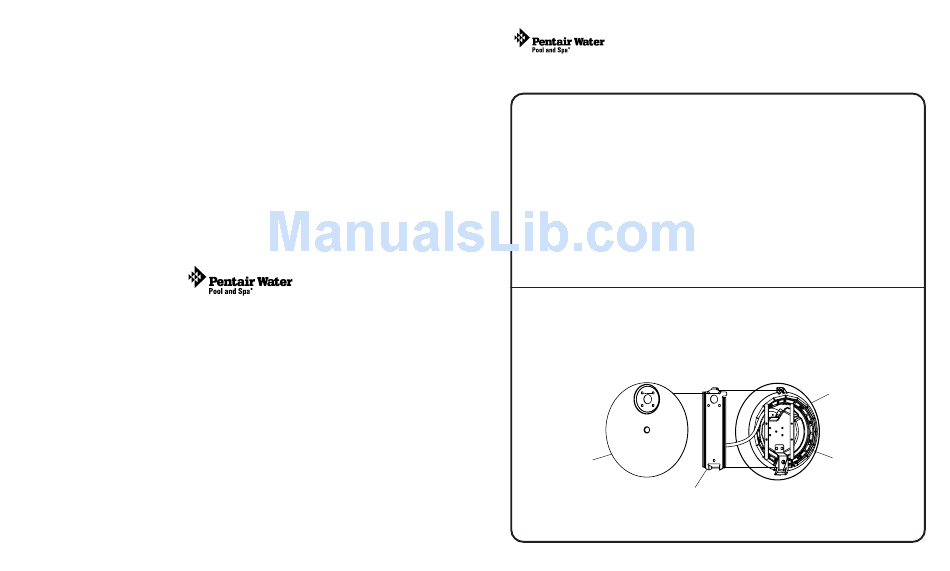

BACK VIEW
Housing
spacer
Housing
AquaLumin
®
II - Nicheless Light Installation Guide
1
Advertisement
Summary of Contents for Pentair Pool Products Nicheless Light AquaLumin II
- Page 1 P/N 99460100 Rev E - 01/15/08 AquaLumin ® II - Nicheless Light Installation Guide ® AquaLumin II - Nicheless Light Installation Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS Section Contents 1. Installing a mounting bracket and light fixture during new vinyl pool construction...3 2.
-
Page 2: Replacement Part Kits
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Pentair Water Pool and Spa, Inc. disclaims proprietary interest in marks and names of others. - Page 3 Light Assembly Parts AquaLumin II Replacement Parts Part Item Number Description 619601 Face ring (white) 619632 Face ring (black) 619797 Lens 619599 Lens gasket 78889900 Captive screw 619584 Halogen lamp 12 volt /100 watt 619484 Halogen lamp 120 volt / 250 watt 619792 Sealing screws (10 req.) 600140...
- Page 4 2. To be certain that the pool's electrical system meets all applicable requirements, you should also consult the local building department. 3. Use only Pentair Nicheless Fixtures, (Mounting Bracket Assembly), to ensure proper bonding and grounding connections. B. Perform the following steps after the electrical system requirements are met (see Section 1A (page 3) for requirements) 1.
- Page 5 Section 3: Replacing a lamp only (Continued) 13. While holding the glass lens and plastic face ring, turn the light over and place it face down on a flat soft clean surface. Be careful not to scratch the lens. 14. Insert one new sealing screw, provided with the Bulb Replacement Kit, through the circular hole located at the TOP (12 o'clock) of the back of the housing and loosely tighten it into the face ring.
- Page 6 10. Never reuse the old lens gasket when reassembling the light. Replace the old lens gasket with a new genuine Pentair Water AquaLumin II lens gasket (P/N 619599), provided in the Bulb Replacement Kit. The orientation of the tabs on the lens gasket is not important.
- Page 7 The following steps may be performed by a qualified pool serviceman or a homeowner. NOTE: Use ONLY the Pentair Bulb Replacement Kit when relamping (P/N 600139 - 12V/100W or P/N 600138 - 120V/250W). See relamping installation instructions provided with the light.
- Page 8 2. Consult the local building department to be certain that the pool's electrical system meets all applicable requirements. 3. Install this light fixture only in a Pentair Products mounting bracket. Mounting brackets made by other manufacturers may not provide proper bonding and grounding connections.
