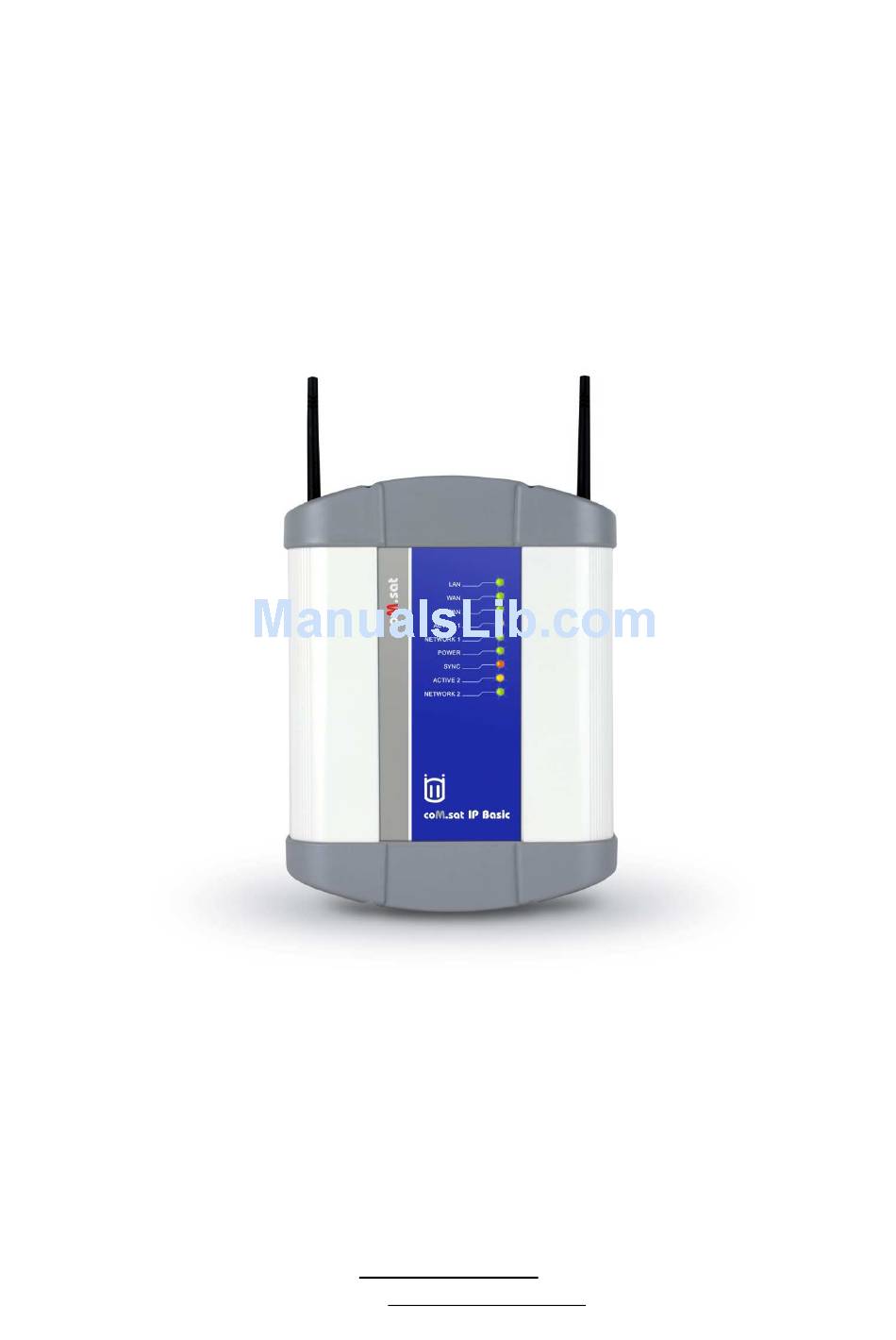

- Page 1 IP Basic ISDN Quick Installation Guide www.comsat.de E-Mail: support@comsat.de Support-Hotline: +49 (0) 180 5 633343...
-
Page 2: Table Of Contents
Quick Installation Guide coM.sat IP Basic ISDN 1. Content CONTENT LIST OF FIGURES DEVICE DESCRIPTION STARTUP CONFIGURATION CCESS TO NTERFACE IP-A ODIFICATION OF THE DDRESS 5.2.1 LAN-Port 5.2.2 WAN-Port OUTING TABLE CONNECTION OF VON IP-PHONES SIP-P ROXY SIP-T RUNK FUNCTION DESCRIPTION 2. -
Page 3: Device Description
5.3 on how to deal with Figure 3: Connection of the coM.sat IP Basic the SIM card and the PIN. • Connect the 12V-power supply with the coM.sat IP Basic ISDN. • After successful configuration the coM.sat IP Basic ISDN is operational. Created:... - Page 4 Quick Installation Guide coM.sat IP Basic ISDN Table 1: LED-Indication Status Meaning Port is not connected Green - on Port is connected and identified Green - flashing Data transmission Port is not connected Green - on Port is connected and the router identified...
-
Page 5: Configuration
Web interface to configure the rest of the system (see chapter 5.2). To access the web interface, enter the IP address of the coM.sat IP Basic ISDN in the address field of your Web browser. -
Page 6: Pin
Quick Installation Guide coM.sat IP Basic ISDN Figure 4: PIN The PIN is a security feature on the SIM card, which is used in the device to protect data stored on the SIM-card from misuse. The PIN should contain at least four digits and a maximum 8 digits. -
Page 7: Connection Of Von Ip-Phones
Name: Enter a name for the SIP extension. It is optional. SIP ID: Your SIP ID is used to register the SIP extension into the Registrer Server of the coM.sat IP Basic ISDN. It is the number to which the SIP extension can be called. - Page 8 To save the configuration, please press the Submit button GSM-Configuration: As an example, the channel 1 of the coM.sat IP Basic ISDN is used. In the following web interface, the relevant parameters are displayed: Created: Page:...
-
Page 9: Sip-Trunk
To save the configuration, please press the Submit button. 6.2 SIP-Trunk The coM.sat IP Basic ISDN supports up to 4 SIP trunks. In every SIP trunk, an Internet Service Provider (ISP) can be entered. The providers may be different. The following parameters can be set: Figure 9: SIP-Trunk •... -
Page 10: Function Description
• Send REGISTER message?: The coM.sat IP Basic ISDN sends a REGISTER message to the registar / outbound proxy server. • Gateway Mode: The coM.sat IP Basic V2 will accept incoming calls for SIP ID and Registrar/ Outbound Proxy Server programmed. If the user want the system to accept the incoming call for any SIP ID but only from Registrar/ Outbound Proxy Server programmed, this flag should be enabled. - Page 11 Quick Installation Guide coM.sat IP Basic ISDN SIP-Trunk: • 10/100 Full Duplex, Autosensing, Ethernet RJ-45 LAN-Port • 10/100 Full Duplex, Autosensing, Ethernet RJ-45 WAN-Port • SIPv2, IPv4 Router • Supports SIP-Proxy • Session Timer, Record-Routing, authentication • Compression with different CODECs •...
