STA-RITE CSP Series Specifications

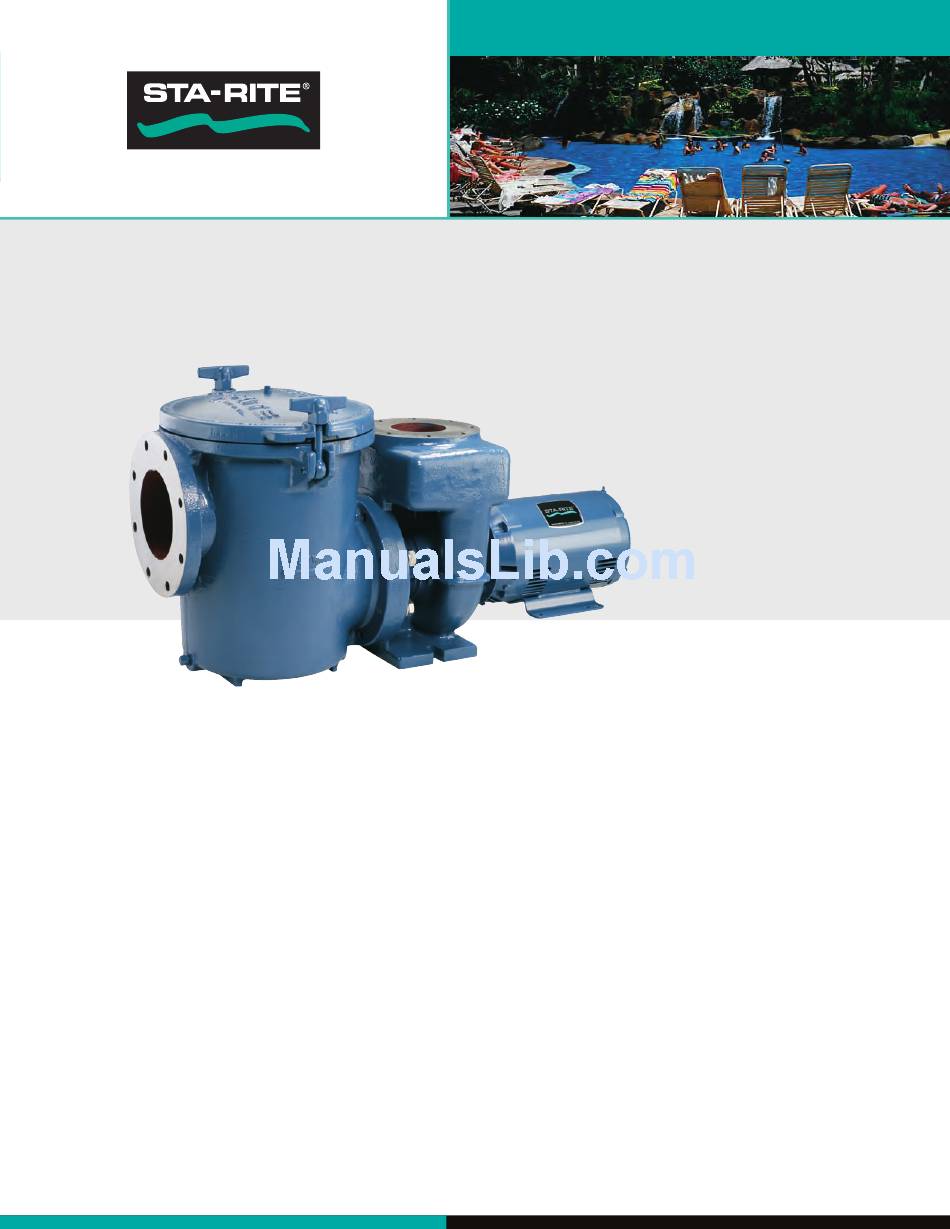

Csp series commercial self-priming pump
Hide thumbs

1
2
3
4

Advertisement

Quick Links

Download this manual
For commercial and public swimming
pools and spas, aquatic facilities, water
parks and fountain applications where
high performance and self-priming
characteristics are desired.

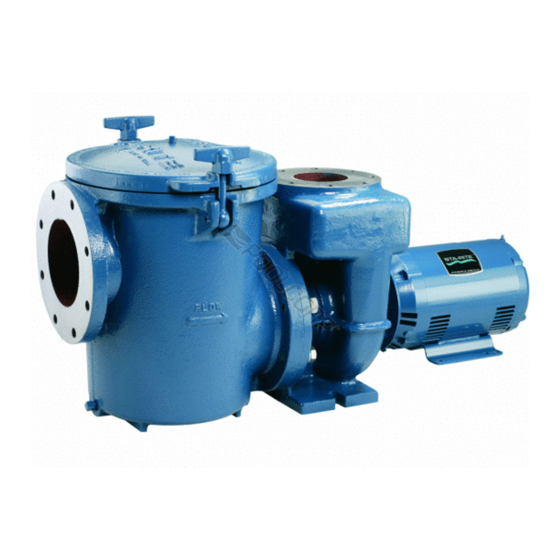

Rugged, self-priming CSP Series
pumps feature an enclosed bronze impeller,
standard 6" x 4" flange connections, plus a
1,100 cubic inch capacity hair and lint strainer.
Motors are standard JM type, NEMA "C" flange
design with a stainless steel shaft sleeve. These
cast iron pumps are available in 7
20 HP, and may be purchased with or without
corrosion-preventing epoxy coating on all wetted
surfaces. Pump and strainer sold separately.
Pentair Water Commercial Pool and Spa
Commercial Self-Priming Pump
Standard Features
•
Cast iron construction, enclosed bronze impeller and
bronze wear rings for long lasting reliability.
•
Exceptional self priming design with hair and lint
strainer installed – allows pumps to be installed
above or below water level.
™
commercial
•
Oversized hair and lint strainer* with electro-polished
stainless steel basket holds a large quantity of debris.
•
Available in a wide range of performance levels from
7
1
⁄
to 20 HP to handle your varied pumping needs.
2
•
Nationally recognized NEMA
performance under continuous operation.
•
Back pull-out design enables servicing of normal
1
⁄
, 10, 15 and
2
wearing parts without disconnecting piping.
•
Dimensionally compatible to most installations for
easier initial hook-ups or retrofits.
•
Integral design base is slotted for ease of mounting.
*To insure priming and proper pump operation, install only with Sta-Rite Hair
and Lint Strainer. Order pump and strainer separately.
™
CSP Series
®
motors offer high
™

Advertisement

loading

  Related Manuals for STA-RITE CSP Series

  Summary of Contents for STA-RITE CSP Series

  • Page 1 7 ⁄ 20 HP, and may be purchased with or without corrosion-preventing epoxy coating on all wetted surfaces. Pump and strainer sold separately. Pentair Water Commercial Pool and Spa CSP Series Commercial Self-Priming Pump Standard Features •...
  • Page 2 Commercial Self-Priming Pump Performance Curves with Trap Installed BEST EFFICIENCY SIZING FLOW RATE IN GPM For detailed efficiency curves for each model, please contact the factory. MATERIALS AND DESIGN Pump Body Volute type, back pull-out design • Port Size 4" – ANSI 125 bolted flange discharge port. 6"...
  • Page 3 CSP Commercial Pump 20.27 1/4 NPT PLUG (OPTIONAL PRESSURE GAUGE LOCATION) FLOW 16.38 6.25 1/2 NPT 3.44 19.48 DRAIN PLUG Outline Dimensions Catalog Number CSPHK, CCSPHK 10.62 CSPHK3, CCSPHK3, CSPH2K3 9.00 CSPHL, CCSPHL 10.35 CSPHL3, CCSPHL3 10.62 CSPHM3, CCSPHM3 10.62 CSPH2L3, CSPH2M3 10.62 CSPHN3, CCSPHN3...

  • Page 4: Specifications

    The pump strainer shall be Sta-Rite Model No. _______ ® type 21 Phone: 800-831-7133 Fax: www.pentairpool.com www.starite.com ® 125 bolt flanged with fusion- ® on all wetted cast iron 800-284-4151 ©2006 Pentair Water Pool and Spa, Inc. All rights reserved. ®...
