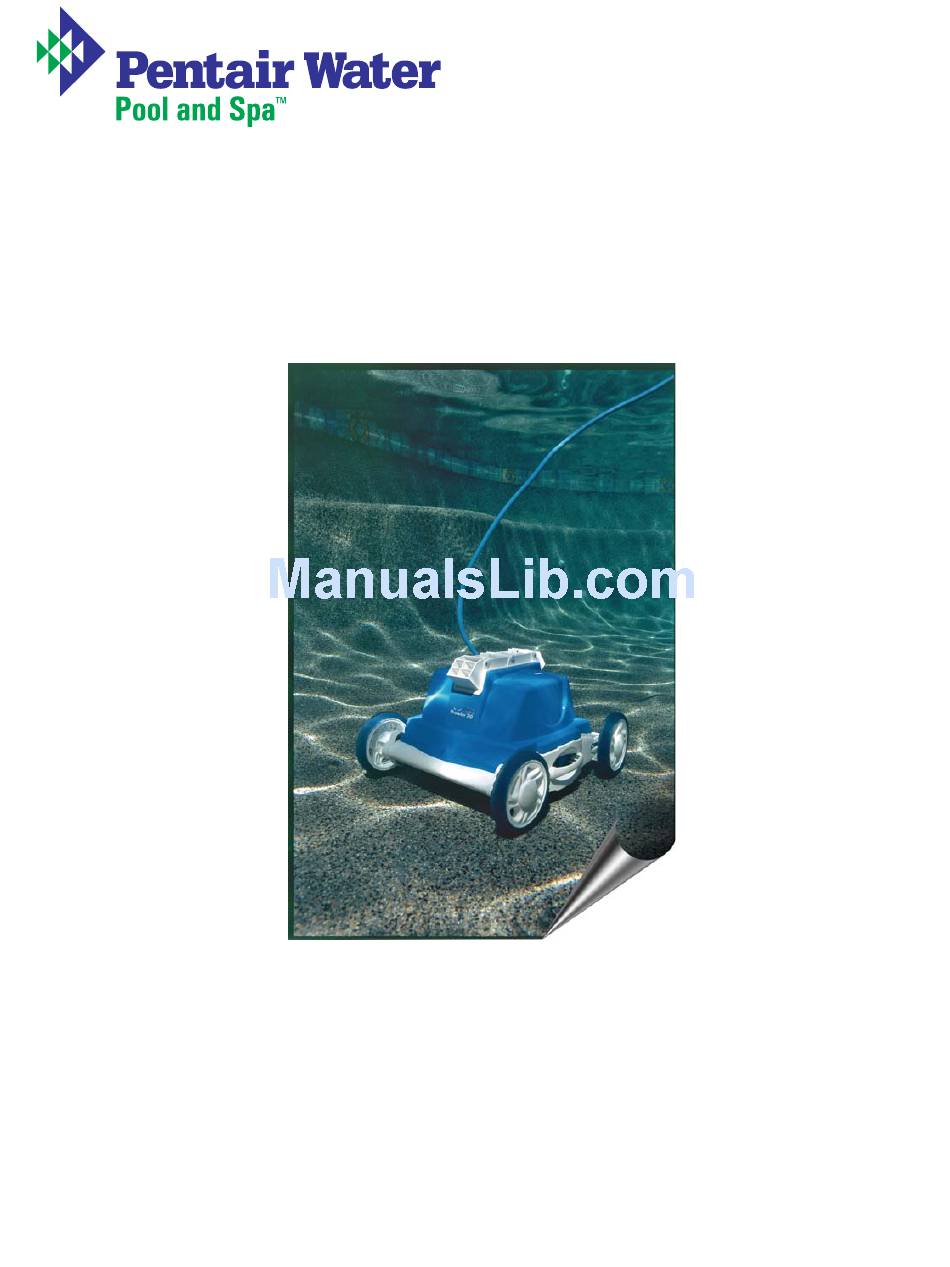

- Page 1 ™ Prowler Robotic Inground Pool Cleaner Installation User's Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Customer Service
Trademarks and Disclaimers. Prowler and the Pentair Water Pool and Spa logo are trademarks of Pentair Water Pool and Spa, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Pentair Water Pool and Spa, Inc. -
Page 3: Table Of Contents
Section 3: Troubleshooting ... 13 Section 4: Replacement Parts ... 16 Prowler ™ 710 Exploded View ... 16 ™ Prowler 710 Dimensions ... 16 Prowler ™ 710 Replacement Parts List ... 17 Contents Prowler ™ 710 Installation and User’s Guide... -
Page 4: Important Safety Precautions
™ The Prowler 710 pool cleaners are designed and manufactured to provide many years of safe and reliable service when installed, operated and maintained according to the information in this manual. Throughout the manual, safety warnings and cautions are identified by the “... -
Page 5: Section 1: Introduction
The Prowler ™ 710 works while you relax, freeing you from the drudgery of manual pool cleaning and the drawbacks of more cumbersome and costly automatic cleaners. The Prowler pump motor which powers the hydroscrubbing jets (jet streams of water). The hydroscrubbing jets stir up dirt and debris for easy vacuuming by the cleaners’... -
Page 6: Prowler ™ 710 Features
General Features The Prowler 710 features three-way cleaning performance: ™ • Dual pressure wash jets lift sand, silt and algae off floors and walls – including surface pores where brushes can’t reach. • Powerful vacuum action removes fine particles and larger debris. -
Page 7: Section 2: Installation
Introducing your new Prowler Dear Customer, Congratulations! You have purchased one of the best pool cleaners that technology has to offer! Your new Pentair cleaner is a fully automatic, "robotic" in-ground pool cleaner with the most powerful water propulsion system available. -
Page 8: How Your Prowler 710 Cleaner Works
60 to 90 minutes or less! All you have to do is place your cleaner in the pool, turn it on and periodically clean the filter bag. Jet Drive Propulsion Prowler 710 Installation and User’s Guide ™ Hydroscrubbing Jets Internal Filter Bag... -
Page 9: Setting-Up Your Prowler 710 Cleaner
Setting up your Prowler™ 710 Cleaner Your new cleaner consists of two main parts: A. Power Supply (Transformer) with Two-Hour Automatic Shut-Off, Fuse Holder Power Supply Cord Power (ON/OFF) Switch NOTE: The Power Supply appearance may vary and features may be located in different positions then what is shown above. -
Page 10: Power Supply Set-Up
115V extension cord may be used to connect to the nearest outlet, see Figure 4. (Remember to keep the Power Supply at least 10 feet away from the pool.) Prowler 710 Installation and User’s Guide ™ Figure At Least 10 Feet Figure 4. -
Page 11: Cleaner Placement
3. Plug your cleaner's Floating Cable into the Power Supply, see Figure 7. Be sure that the Power Supply ON/OFF Switch is in the “OFF” position. Figure 5. (Remember to keep the Power Supply at least 10 feet away from the pool.) Figure 6. Prowler ™ 710 Installation and User’s Guide... -
Page 12: Adjusting The Timing Cycle
NOTE: The alternate Mesh Bag may cause the cleaner to cross your pool in less time and the Time Control should be adjusted accordingly. Turn Power Supply switch to the “ON” position, see Figure 9 , then press the Reset Button, see Figure 9 . Figure 7. Prowler 710 Installation and User’s Guide ™ Figure 8. Figure 9. -
Page 13: Cleaning Motion
Unplug your cleaner’s Floating Cable from the Power Supply, see Figure 7. Gently pull your cleaner toward you using the Floating Cable. When your cleaner is within reach, remove it from the water using the handle only, see Figure 10. HANDLE Figure 10. Prowler ™ 710 Installation and User’s Guide... -
Page 14: Changing/Cleaning The Filter Bag
4. Re-install the Bottom Lid Assembly. Make sure that neither debris nor the Filter Bag itself interferes with complete closure of the Bottom Lid Assembly. A locking sound from each Lock Tab will be heard when locked properly! Prowler 710 Installation and User’s Guide ™ Lock Tabs Intake Valve Flaps Figure 11. -
Page 15: In/Off-Season Storage
When the Pool Season is over, you should thoroughly clean the Filter Bag. Make sure that there is no water in your cleaner. Completely untangle and then properly coil the Floating Cable. Your cleaner and Power Supply should be stored in a dry, protected area away from freezing temperatures. Prowler ™ 710 Installation and User’s Guide... - Page 16 Prowler 710 Installation and User’s Guide ™...
-
Page 17: Section 3: Troubleshooting
Use the following troubleshooting information to resolve possible problems with your Prowler™ 710 pool cleaner. Problem Slower motion or inefficient vacuuming. Water flow from the hydroscrub jet tubes (Figure 2, Item 6) have no pressure or water coming out from them. - Page 18 Waits too long at the side of the pool before reversing. Floating Cable is twisting. Prowler 710 Installation and User’s Guide ™ Corrective Action Take a garden hose with high pressure, spray into the Valve Housing at each Valve Port opening, should free the Jet Valve System of any debris.
- Page 19 Figure 17. Figure 19. Figure 20. Figure 18. Prowler ™ 710 Installation and User’s Guide...
-
Page 20: Section 4: Replacement Parts
Section 4 Replacement Parts ™ Prowler 710 Model 17.0" 12.0" 20.1" Prowler 710 Installation and User’s Guide ™... -
Page 21: Prowler ™ 710 Replacement Parts List
HEAT SHRINK TUBING BLUE OR BLACK, 3 INCH HEAT SHRINK TUBING BLACK, 4 INCH P CLIP 3-8 S.S. WASHER 0.195 x 0.063 LABEL, DOME FOR BODY PROWLER™ 710 WHEEL, 6 INC. POLY-WHITE WITH TRANSP, TIRE DISK, WHEEL COVER-DOME, WHITE TIE, PLT PNDUIT, 1.51M INTERMEDIATE... - Page 22 Notes Prowler 710 Installation and User’s Guide ™...
- Page 23 Prowler ™...
- Page 24 P/N P12153 Rev. A 2/23/06...
