Summary of Contents for Ducar D2000iS

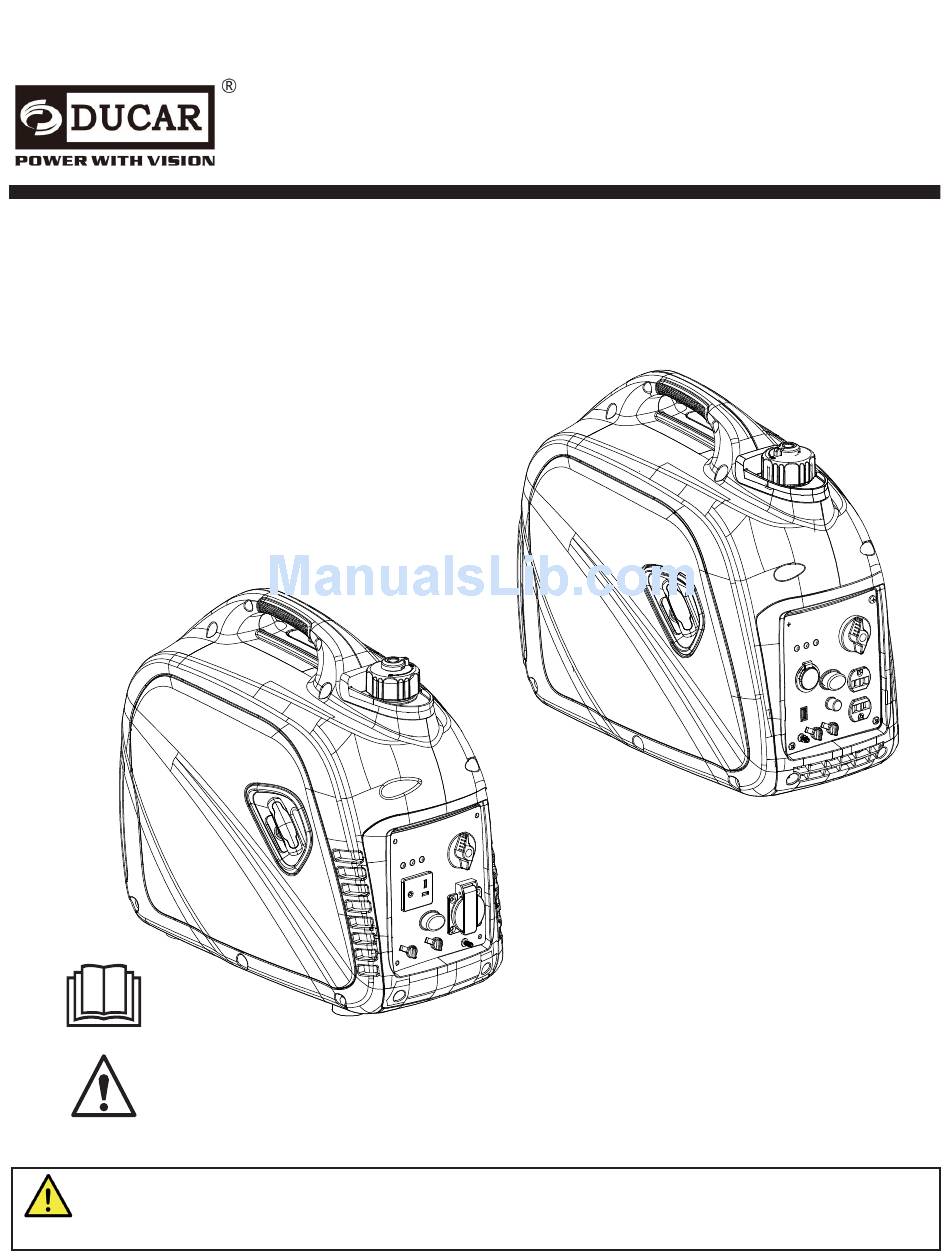

- Page 1 Model: D2000iS Inverter Generator OPERATOR’S MANUAL SAVE THIS MANUAL FOR FUTURE REFERENCE This manual contains important information regarding safety, operation, and maintenance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................................3 Parts Ordering / Customer Service..........................3 Safety Rules .....................................4 Safety Symbols ................................4 Safety Instructions ...............................4 Features ....................................7 Control Panel Functions .................................8 ON/OFF Start Switch and Choke..........................8 Indicator Lights................................8 DC Protector.................................9 Engine Smart Control (EMS)............................9 Parallel Outlets................................9 Fuel Cap Air Vent...............................10 Ground Terminal.................................10 Assembly ....................................11... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this superior quality portable generator . When operating and maintaining this product as instructed in this manual, your generator will give you many years of reliable service. . It is designed to supply electrical power to operate tools, appliances, camping equipment, lighting, or serve as a back up power source during power outages. -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous WARNING! situation which could result in serious injury or death if not avoided. Indicates a potentially hazardous CAUTION! situation which could result in damage to equipment or property. Toxic Fumes Risk of explosion Risk of electric shock Hot surface Safety Instructions... - Page 5 SAFETY RULES Never exceed generators wattage / amperage capacity. This could damage the generator WARNING! and / or connected electrical devices. • Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator. Never start or stop engine with electrical devices plugged in to the receptacles. Failure to WARNING! do so could damage the generator and / or connected electrical devices.
- Page 6 SAFETY RULES This generator produces a very high voltage which could result in burn or WARNING! electrocution causing serious injury or death. • Never handle the generator, electronic devices, or any cord while standing in water, while barefoot, or when hands or feet are wet.
-
Page 7: Features
FEATURES P1 - 120V AC Outlet A - Spark Plug Cover I - Control Panel Q - Parallel Outlets B - Spark Arrestor J - Oil Warning Light R - Ground Terminal K - Overload Indicator Light S - 12V DC Port D - Outer Casing (Side Panel) L - AC Pilot Light E - Handle (Grip) -
Page 8: Control Panel Functions
CONTROL PANEL FUNCTIONS ON/OFF Start Switch and Choke Start Switch “OFF” When the Start Switch is in the “OFF” position the fuel valve is switched off and the engine will not run. O FF Start Switch “CHOKE” When the Start Switch is in the “CHOKE” position the fuel valve is switched on and the engine can be started. -
Page 9: Dc Protector
Parallel Outlets Located just above the Ground Terminal, the generator’s Parallel Outlets enable a user to run two D2000iS generator’s simultaneously. This operation requires special cables. When operating parallel generators, the rated output is 3.0Kva and the rated current is 25A/120V. -
Page 10: Fuel Cap Air Vent
CONTROL PANEL FUNCTIONS Fuel Cap Turn counterclockwise to remove the fuel cap Fuel Cap Air Vent The fuel cap is equipped with an air vent to stop fuel from flowing to the carburetor. The Air Vent must be in the “ON” position to allow fuel to flow so that the engine can run. -
Page 11: Assembly
ASSEMBLY Connecting Generator to an Electrical System • If connecting generator to a building’s electrical system for standby power, The power from the generator must be isolated from the circuit breaker or alternative power source. The connection must comply with all electrical codes and applicable laws. -
Page 12: Adding / Checking Oil
ASSEMBLY • Place generator on a level surface. • Remove screws and then remove the outer casing cover. (You must remove the spark plug cover to push the side panel off from the inside) • Remove the crankcase dipstick. Insert a funnel into the crankcase dipstick hole and carefully add the specified amount of 4-Cycle engine oil (SAE 10W- •... -
Page 13: Operation
OPERATION Grounding the Generator To avoid electrocution, this generator must be properly grounded prior to use. For instructions see Control Panel Functions pg. 10. Standard Atmospheric Conditions Ambient Temperature: 77ºF (25ºC) Barometric Pressure: 100kPa Relative Humidity: 30% Generator output will vary due to changes in temperature, altitude, and humidity. If the temperature, humidity, or altitude are higher than standard atmospheric conditions, the generator’s output will be reduced. -
Page 14: How To Stop Engine
OPERATION How to Stop Engine • Turn the ECO switch to the “OFF” position. Disconnect any electronic device. All loads MUST be disconnect from the generator. Never start or stop the engine • with electrical devices plugged in to the receptacles. •... -
Page 15: Charging A 12 Volt Battery
OPERATION Charging a 12 Volt Battery This generator can be used to charge a 12 volt automotive or storage battery by taking the following steps: ONLY level is low. Never add tap water. 1. Use a wire brush to clean battery terminals if corroded. 2. -
Page 16: Ac Parallel Operation
OPERATION AC Parallel Operation The D2000iS generator has two models that are compatible with each other (Standard and Companion). It is possible to connect two D2000iS generators to each other, using a parallel cable kit. • Connect PARALLEL OPERATION CABLES to two D2000iS generators according to the instructions provided with the cable kit. -
Page 17: Don't Overload Generator
OPERATION Don’t Overload Generator Make sure you can supply enough rated watts for all electronic devices connected to the generator. Rated watts refer to the power a generator must supply to keep a device running. Surge watts refer to the power a generator must supply to start an electronic device. -
Page 18: Maintenance
MAINTENANCE Regular maintenance will extend the life of this generator and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the generator as instructed in this manual, including proper storage. Before inspecting or servicing this machine, make sure the engine is off and no parts are WARNING! moving. -
Page 19: Checking Spark Plug
MAINTENANCE Checking Spark Plug • Remove cap. Then remove spark plug cap. • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. •... -
Page 20: Changing Oil
MAINTENANCE Changing Oil • Place generator on a level surface. • Run the generator for several minutes until the engine is warm. Turn off generator. • Remove screws, then remove outer casing. • Remove the crankcase dipstick. • Place an oil pan underneath the engine. Tilt generator to collect used oil. Allow oil to drain completely. •... -
Page 21: How To Clean Air Filter
MAINTENANCE Air Filter • To clean, remove the screws then remove outer casing. • • Remove the foam element. • Wash the foam element in solvent and let dry. • Pour a small amount of oil on the foam element then squeeze out, but do not wring out, excess oil. -
Page 22: How To Clean Fuel Filter
MAINTENANCE Fuel Tank Filter • • • • • Install fuel cap. Fuel Filter • To clean, remove screws, remove outer casing, and drain fuel. • Lift and hold onto the clamp, then remove hose from tank. • • • •... - Page 23 MAINTENANCE How to drain fuel • Turn the 3 in 1 switch to the “OFF” position. • • Use a siphon to transfer gasoline from generator into a gasoline approved container. • Wipe up any spilled fuel with a clean rag. •...
-
Page 24: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Generator is running, but does not 1. DC Circuit Breaker is “OFF” 1. Turn DC Circuit Breaker “ON” supply power. 2. Green AC Pilot Light Indicator is off. 2. Stop engine and restart. 3. Poor connection 3. -
Page 25: Diagrams
DIAGRAMS Model No. D2000iS Type Inverter Rated Frequency 50Hz 60Hz Rated Voltage 220V / 230V / 240V 110V / 120V Maximum Output Power 1.8kW Rated Output Power 1.6kW Power Factor Generator AC Output Quality ISO8528 G1 ≤3% Noise Level dBA@7m... -
Page 26: Wiring Diagram
WIRING DIAGRAM... - Page 27 WIRING DIAGRAM...
