Connecting Expansion Chassis (Vision800X)

It is possible to connect a Vision800X expansion chassis to the VSN870 thereby increasing the number of
PCIe slots available.

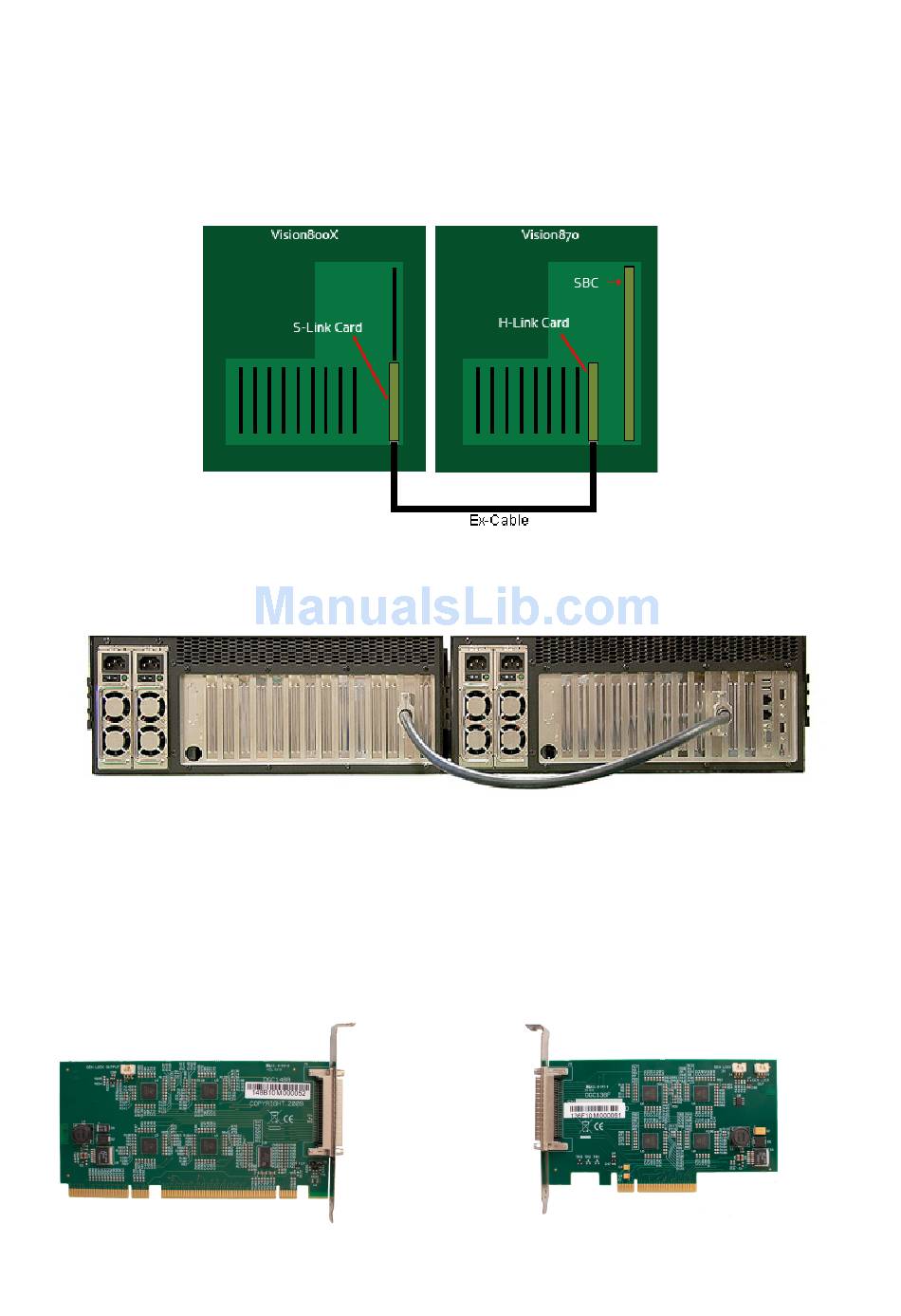

The following diagrams illustrate how this can be achieved:
Connecting the chassis is achieved by installing H-Link and S-Link cards in the VSN870 and Vision800X
and connecting the two cards using the Ex-Cable.
S-Link
Fig.10
Vision800X
Fig.8
Fig.9
12
VSN870
H-Link
Fig.11
