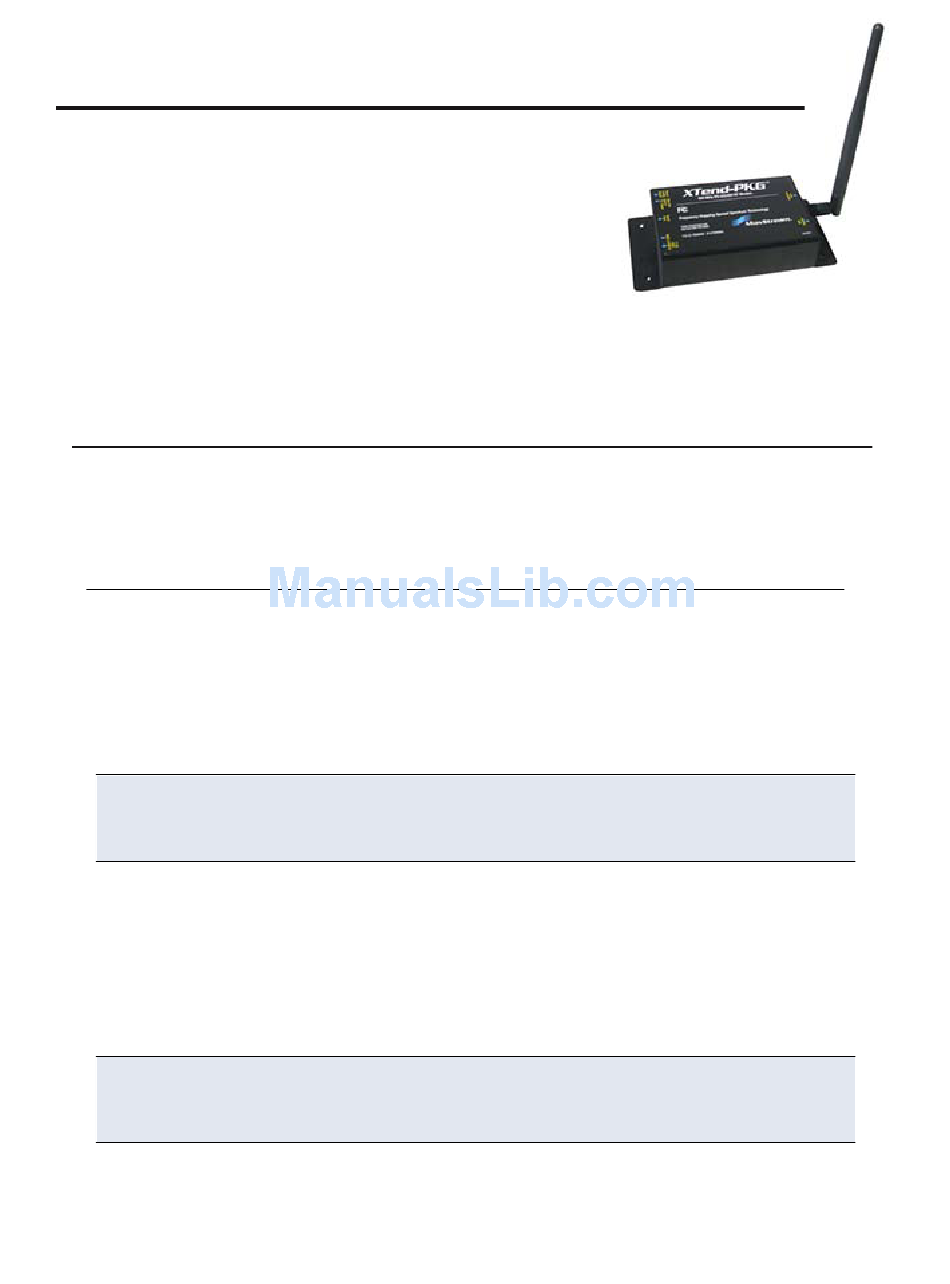

XTend-PKG-E™ Ethernet RF Modem
Introduction
Create a long range wireless link in minutes!
www.maxstream.net
© 2005 MaxStream, Inc. All rights reserved.
Introduction
This Quick Start Guide provides OEMs and integrators with an introduction to some of
the RF modem's most important features. This guide provides step-by-step
instruction on how to setup a wireless link and test the modem's ability to transport
data over varying ranges and conditions.
Requirements for Range Test
1 XTend-PKG-E (Ethernet) RF Modem
1 XTend-PKG-R (RS-232) RF Modem
1 PC (Windows 98 SE, 2000 or XP) loaded with the following software:
X-CTU
Com Port Redirector
Accessories (Loopback adapter, CAT5 cable, 2 RPSMA antennas, 2 power supplies)
Software Installation #1: X-CTU
Double-click the 'setup_X-CTU.exe' file, then follow installation screen prompts.
File is located on the MaxStream CD and under the 'Software' section of the
following web page: www.maxstream.net/helpdesk/download.php
The X-CTU software interface is divided into the four following tabs:
• PC Settings - Setup PC com ports to interface with the RF modem
• Range Test - Test RF modem's range under varying conditions
• Terminal - Read/Set RF modem parameters and monitor data communications
• Modem Configuration - Read/Set RF modem parameters
Software Installation #2: Com Port Redirector
Double-click the 'setup_ComPortRedirector.exe' file, follow installation screen
prompts, then re-start the PC. File is located on the MaxStream CD and under the
'Software' section of the following web page:
The Ethernet Com Port Redirector must be installed to activate the 'Ethernet Com
Ports' sub-tab of the X-CTU "PC Settings" tab. If this software is not installed, the
features under the 'Ethernet Com Ports' sub-tab are grayed and cannot be used.
The 'Ethernet Com Ports' sub-tab enables users to discover Ethernet RF Modems
on a TCP/IP network and setup serial com port communications.
www.maxstream.net/helpdesk/download.php
