N a s h v i l l e 1 0 0 0
O p e r a t i n g G u i d e

Advertisement

   Also See for Peavey Nashville 1000

   Related Manuals for Peavey Nashville 1000

   Summary of Contents for Peavey Nashville 1000

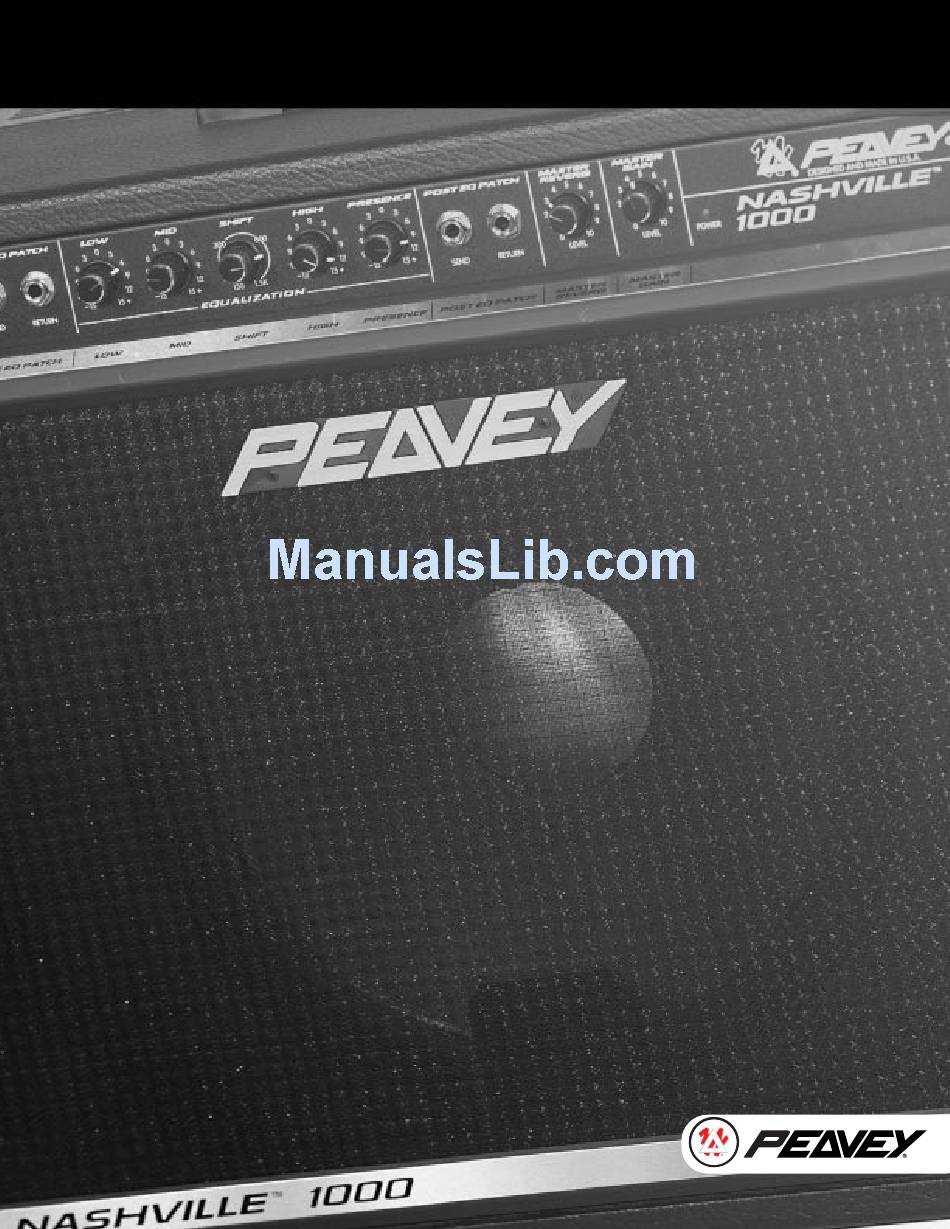

  • Page 1 ™ N a s h v i l l e 1 0 0 0 O p e r a t i n g G u i d e...
  • Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 3 ª Nashville 1000 Congratulations on your purchase of the Peavey Nashville ª 1000. As the leader in steel guitar amplification, we are proud to combine innovation and tradition in this new model. Our digital amp provides the clean power you require and reduces the weight, while the enhanced tone circuitry eliminates the desire for unnecessary after-market modifications.
  • Page 4: Front Panel

    (Both are low gain.). (3) Pre Gain Pre Gain controls the input level of the Nashville 1000. Adjusting this control clockwise will increase the input level resulting in a hotter, more responsive signal. (4) Pre EQ Patch These 1/4"...
  • Page 5: Rear Panel

    Post EQ Patch (8) Similar to the Pre EQ Patch(4), these jacks are post EQ. The same notes apply. The return level should still be monitored for its strength. In addition, the Post EQ Patch can be taken in and out of the signal path via the footswitch.
  • Page 6: Power Amplifier Section

    Nominal Input Level: -14 dBV, 188 mV RMS Minimum Input Level: -38 dBV, 13 mV RMS Maximum Input Level: +18 dBV, 8 V RMS ª 1000 SPECIFICATIONS: Pre EQ Patch Send: Load Impedance: 10 k Ohms or greater Nominal Output Level: -14 dBV, 0.2 V RMS...
  • Page 9 NOTES...
  • Page 10: Important Safety Instructions

    WARNING: When using electric products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. For example, near or in a bathtub, swimming pool, sink, wet basement, etc. Clean only with a damp cloth.
  • Page 11 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
  • Page 12 Features and specifications subject to change without notice. Peavey Electronics Corporation ¥ 711 A Street ¥ Meridian, MS 39301 ¥ U.S.A. (601) 483-5365 ¥ Fax (601) 486-1678 ¥ www.peavey.com ©1999 Printed in U.S.A. 3/99 80304539...
