4.2.2

DTE to DTE with Handshaking

Some DTE devices may require hardware handshaking lines. The most common are the CTS and
RTS lines. Less common are the DTR and DCD lines. The controller does not require these lines.

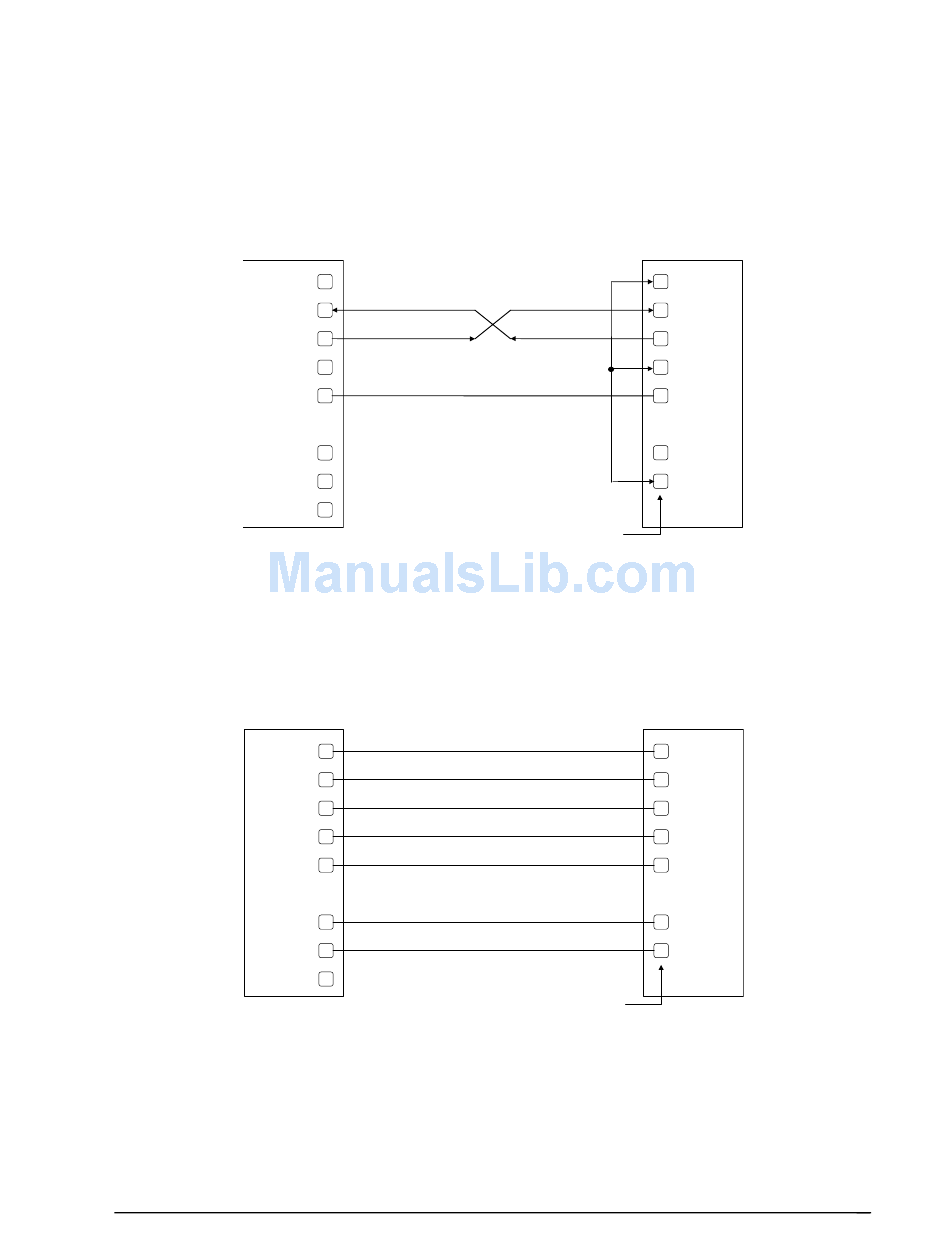

Refer to the specifications of the external device for exact requirements. The following diagram
shows a common connection of an RS-232 COM port with a DTE device requiring handshaking
lines.
RS-232 COM port (DTE)
DCD
RxD
DTR
GND
+ 5V
4.2.3

DTE to DCE with Handshaking

DCE devices require different wiring. The handshaking lines must be connected in most cases. Note
that many DCE devices are half duplex. Select half-duplex operation with these devices. The
diagram below shows common connection of a SCADAPack with a DCE device requiring
handshaking lines.
RS-232 COM port (DTE)
DCD
GND
+ 5V
SCADAPack 32P Controller Hardware Manual
May 26, 2006
TxD
RTS
CTS
RxD
TxD
DTR
RTS
CTS
DTE
DCD
RxD
TxD
DTR
GND
RTS
CTS
See device
specifications
for pin numbers
DCE
DCD
RxD
TxD
DTR
GND
RTS
CTS
See device
specifications
for pin numbers
