- Page 1 ™ P M O N E P r o d u c t i o n M i xe r O p e r a t i n g G u i d e...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVERTISSEMENT: Afin de prévenir les risques de décharge électrique ou de feu, n’exposez pas cet appareil à la pluie ou à...

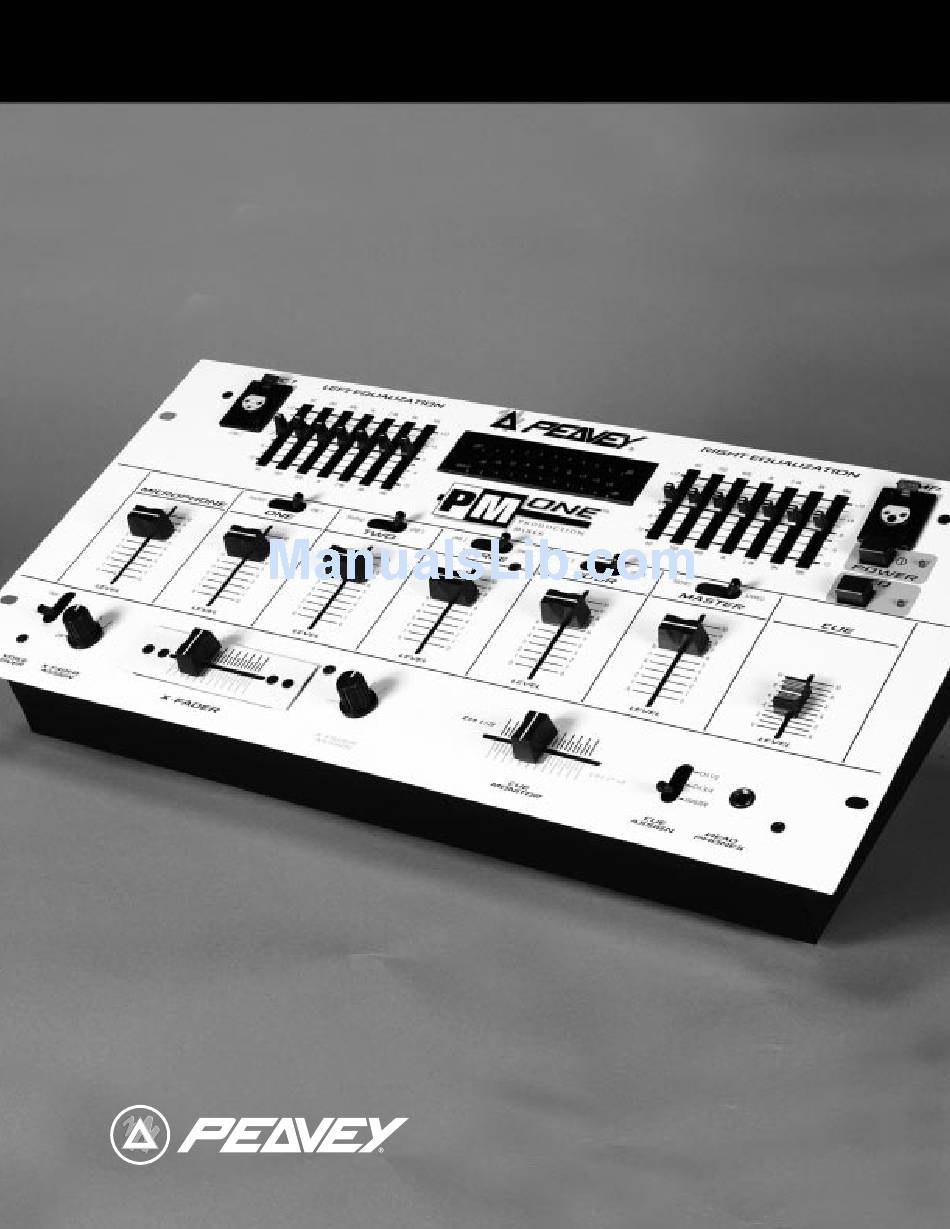

- Page 3 PM ONE ª Professional Stereo Production Mixer Thank you for purchasing the PM One ª stereo production mixer. The unique features of this mixer are sure to add to your performances, both live and recorded. The PM One is a true stereo, fully featured mixer with the DJ in mind.
-
Page 4: Rear Panel
BLE DE MEME TYPE ET DE 250 VOLTS. 20 WATTS 230V 115V F 500 mA A PRODUCT OF PEAVEY ELECTRONICS CORP. 250V DESCRIPTIONS POWER The PM One is supplied with a switchable power supply. Before plugging your PM One in, please read this entire section to ensure proper supply voltage selection and unit operation. - Page 5 OUTPUTS The PM One features two different stereo outputs. These outputs are designed for the different types of inputs found on various external equipment. Pay close attention to ensure you have selected the right output for your application. Always use quality, shielded cables and verify a good connection.
- Page 6 8. PHONO INPUT GROUND SCREW Grounds from external turntable(s) should be connected at this point for a proper input connection. 9. MIC 1 INPUT The Mic 1 Input is located on the top of your PM One. (See diagram on back.) The Mic 1 Input is a balanced, low impedance controlled by the Microphone Fader (11).
-
Page 7: Channel Fader
13. CHANNEL FADER This stereo fader controls the level of each individual channel regardless of input type. Placing the fader in the Ò0Ó position will produce minimum gain or no signal. Moving the fader to the Ò10Ó position will give maximum gain or the highest output. 14. - Page 8 selected on the right X-Fader Assign). The interim from left to right would produce a combination of both, allowing a smooth transition from one channel to the other. Note: The X-Fader is replaceable by removing the two outside mounting screws on the top of the unit. Once the screws have been removed, the slider can be pulled out and replaced with ease.
-
Page 9: Headphone Output
This section identifies and describes the Cue features of the PM One. The Cue allows you to preview and stage material prior to playing through the mains (Output-amp). 23. CUE ASSIGN Use this selector to determine which pair of channels you would like to cue at one time. Your options include CH 1/2, CH 3/4, and MASTER. - Page 10 ª One Recommended Hookup for DJÕs Drum Machine Mini Disc Turntable CD Player CD Player Wireless Mic* Hi Z Mic Turntable CH. A Input L/R Input CH. B Input ¨ 2GÕs Tape Deck CH. A Output CH. B Output ¨ 800s ¨...
- Page 11 ª One Recommended Hookup for Production Wireless Mic* Wireless Mic* Tape Deck ¨ *NOTE: Wireless mics are typically mono. From the line out (mono) of the wireless mic receiver, it will be necessary to use a stereo splitter in order to utilize both the left and right channels of an input channel.
-
Page 12: Specifications
Inputs: Microphone: Phone: Line/Tape/CD: Output: Frequency response: Distortion: S/N ratio: Attenuation at Voice over: Equalization range: Headphone monitor impedance: Power source: Dimensions: Weight: PM ONE SPECIFICATIONS 1m V 47 k Ohm/High impedance 3m V 47 k Ohm 150m V 27 k Ohm 1.5 Volt max 20-20,000 Hz ±... - Page 13 NOTES:...
-
Page 14: Important Safety Instructions
WARNING: When using electric products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. For example, near or in a bathtub, swimming pool, sink, wet basement, etc. Clean only with a damp cloth. - Page 15 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
