2 Adjusting Angle of the Camera

Steps:

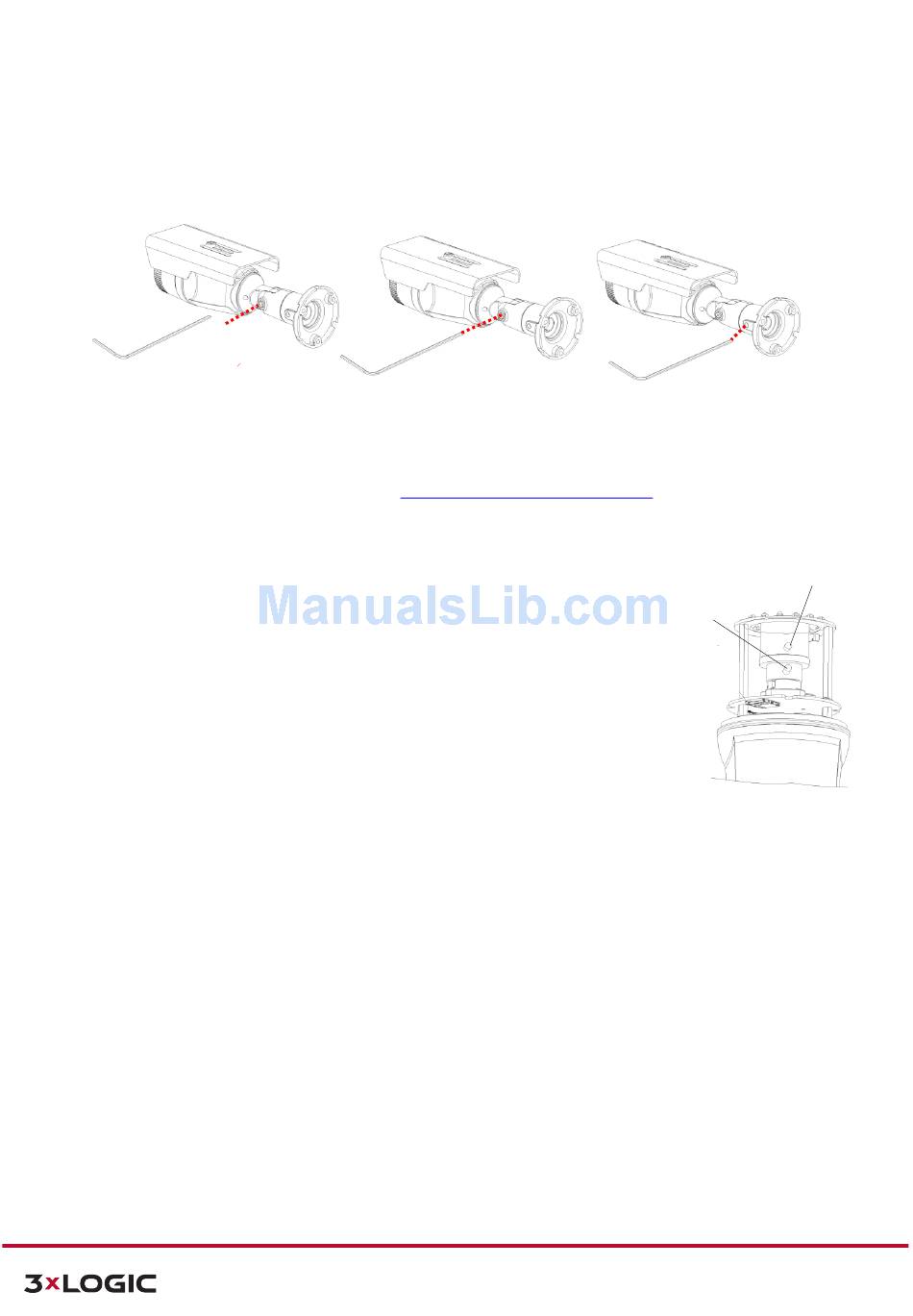

1). Adjust the camera to the desired angle by unscrewing the joints referring to the following pictures.
Adjust the joint to install
the camera on the wall.
2). Connect to the web page of the device to see its real-time image in order to check whether its angle is
correctly adjusted. Refer to Section 5:
web page.

3 Adjusting Zoom and Focus

Steps:
1). Unscrew the zoom puller and the focus puller counter-clockwise.
2). Adjust the zoom and the focus of the lens.
3). Tighten the zoom puller and the focus puller again by turning it
clockwise after the zoom and the focus are properly adjusted.
CAUTION:
Manual adjustment of Zoom and Focus is only possible on the VX-2A-B-IWD model version. Zoom and Focus
controls can be configured digitally from the camera's web interface for VX-2A-B-RIWD models. See the VISIX
V-Series All-in-One Camera User Manual for more details on adjusting lens settings from the camera's web
interface.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX Camera Quick Start Guide | VX-2A-B-IWD (R)
Tilting adjustment
View Video on Camera Web Interface
Panning adjustment
for details about using its
Focus Puller
Zoom Puller
