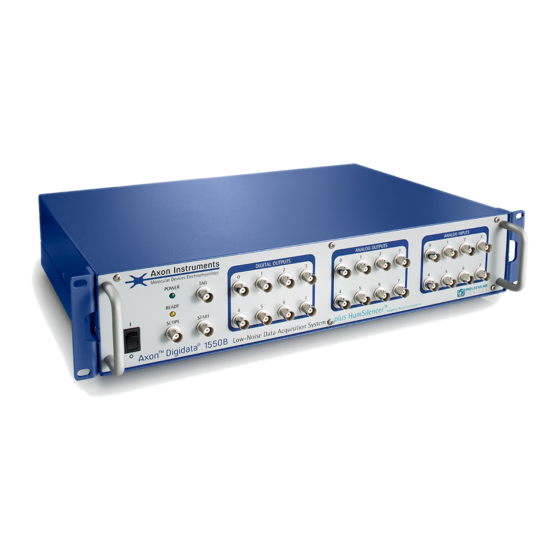

Digidata 1550 Low-Noise Data Acquisition System
The Digidata® 1550 Low-Noise Data Acquisition System is a high-resolution, low-noise
digitizer intended for electrophysiology experiments. It is a plug-and-play device that is
automatically recognized by the Windows operating system, and supported by the
included software, AxoScope 10.4 (or higher), and by the optional pCLAMP Clampex 10.4
software.
Included Components
•
Digidata 1550 digitizer
•
Power cord
•
USB 2.0 cable
•
CD-ROM with AxoScope 10.4 Software for Windows
•
Printed Quick Start Guide
Recommended Computer System
•
PC with a 2 GHz CPU (or faster)
•
Windows 7 (32-bit or 64-bit)
•
2 GB RAM (or more)
•
2 GB hard disk (or more)
•
1024 × 768 display system
•
3 High-speed built-in USB2 ports
Getting Help
User guides for the Digidata 1550 digitizer hardware and the AxoScope software can be
found on the included CD-ROM and on the Molecular Devices® Support website.
Contacting Support
Check the Support section of the Molecular Devices website at
www.moleculardevices.com/Support
that contains product-specific questions and answers to many common issues.
Contact Molecular Devices Technical Support at
1-800-635-5577 (US only); elsewhere, contact your local representative.
5022633 A
Quick Start Guide
where there is a link to our on-line Knowledge Base
support@moldev.com
or
1
Advertisement
Table of Contents
Related Manuals for Molecular Devices Digidata 1550
Summary of Contents for Molecular Devices Digidata 1550
- Page 1 • 3 High-speed built-in USB2 ports Getting Help User guides for the Digidata 1550 digitizer hardware and the AxoScope software can be found on the included CD-ROM and on the Molecular Devices® Support website. Contacting Support Check the Support section of the Molecular Devices website at www.moleculardevices.com/Support...
- Page 2 Install the AxoScope 10.4 or pCLAMP 10.4 software. The Digidata 1550 digitizer drivers are included in the installation. An AxoScope 10.4 software CD is included. If you have purchased the pCLAMP 10.4 software suite, install it instead of AxoScope 10.4 software.
- Page 3 Figure 1-2: Rear panel of the Digidata 1550 digitizer. Installing the Digidata 1550 Digitizer Connect the power cord to the wall, and then to the Digidata 1550 digitizer rear panel AC POWER input connector. Attach the USB 2.0 cable to a USB 2 port on your computer, and to the digitizer.
- Page 4 For research use only. Not for use in diagnostic procedures. The trademarks mentioned herein are the property of Molecular Devices, LLC or their respective owners. These trademarks may not be used in any type of promotion or advertising without the prior written permission of Molecular Devices, LLC.
