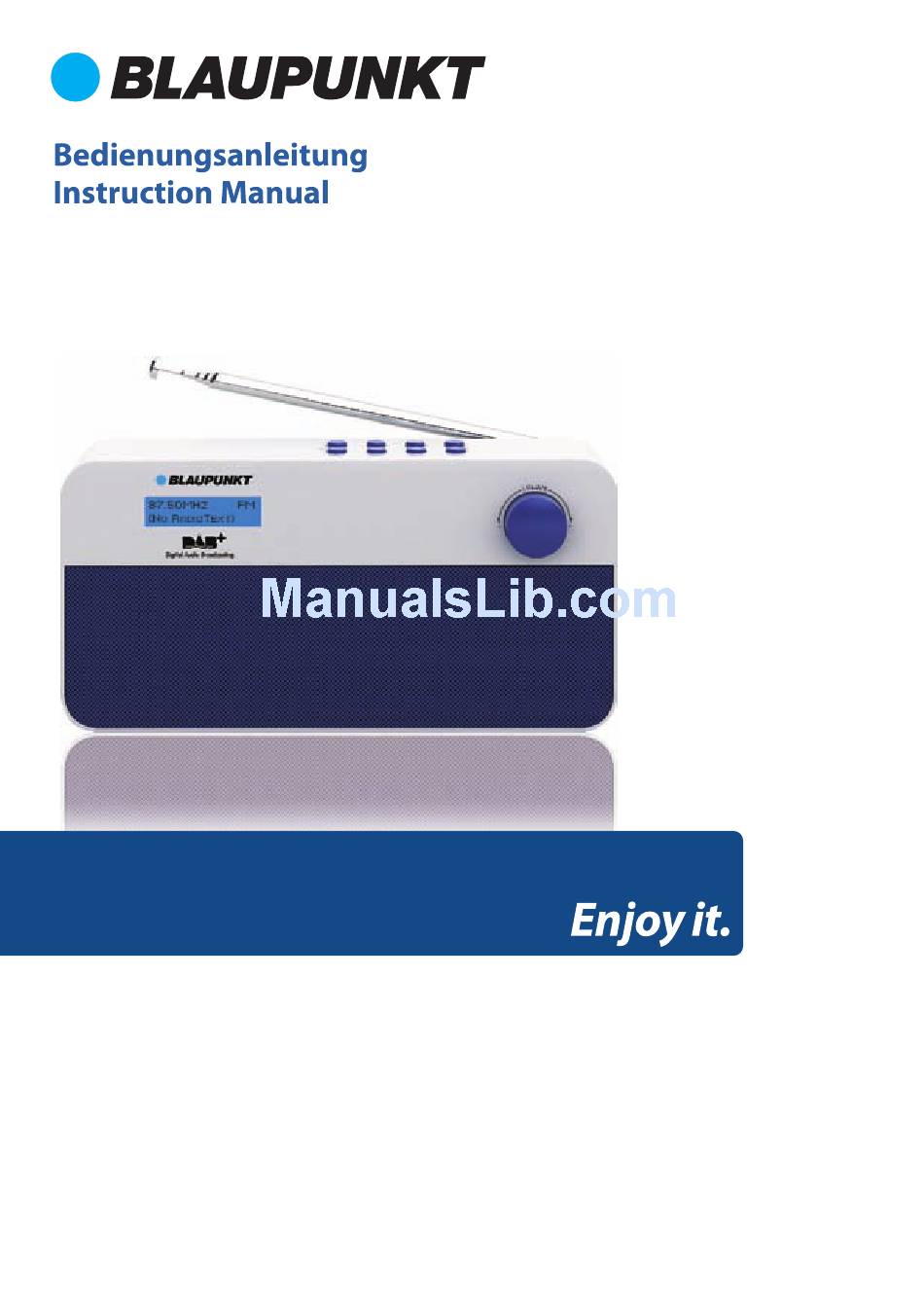

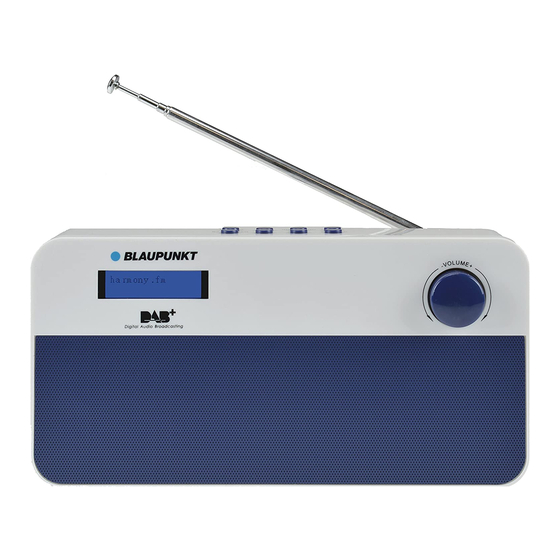

  • Page 1 RX+ 10 Digitalradio mit Uhrenfunktion Digital radio with clock radio...
  • Page 2 RX+ 10...
  • Page 3 RX+ 10...
  • Page 4 RX+ 10...
  • Page 5 RX+ 10...
  • Page 6 RX+ 10...
  • Page 7 RX+ 10...
  • Page 8 RX+ 10...
  • Page 9 RX+ 10...
  • Page 10 RX+ 10...
  • Page 11 RX+ 10...
  • Page 12 RX+ 10...
  • Page 13 RX+ 10...
  • Page 14 RX+ 10...
  • Page 15 RX+ 10...
  • Page 16 RX+ 10...
  • Page 17 RX+ 10...
  • Page 18 RX+ 10...
  • Page 19 RX+ 10...
  • Page 20 RX+ 10...
  • Page 21 RX+ 10...
  • Page 22 RX+ 10...
  • Page 23 RX+ 10 Signal error Time/Date Frequency DLS (radio text) Program type Bit rate Program name Signal strength...
  • Page 24 RX+ 10...
  • Page 25 RX+ 10...
  • Page 26 RX+ 10...
  • Page 27 RX+ 10...
  • Page 28 RX+ 10...
  • Page 29 RX+ 10 Type Time/date Programme Signal strength Radio Text...
  • Page 30 RX+ 10...
  • Page 31 RX+ 10...
  • Page 32 RX+ 10...
  • Page 33 RX+ 10...
  • Page 34 RX+ 10...
  • Page 35 RX+ 10...
  • Page 36 RX+ 10...
  • Page 37 RX+ 10...
  • Page 38 RX+ 10...
  • Page 39 RX+ 10...
  • Page 40 RX+ 10...

  • Page 41: Important Safety Instructions

    RX+ 10 IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.

  • Page 42: Safety Instructions

    Brand name: Blaupunkt Responsible party: M3 Electronic GmbH Gutenbergstrasse 5, D-65830 Kriftel. Germany Hereby, Blaupunkt Competence Center Audio M3 Electronic GmbH, declares that this Class 1 equipment is in compliance with the essential requirement and other relevant provisions of Directive 1999/5/EC.
  • Page 43 RX+ 10 10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc. 11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat.
  • Page 44 RX+ 10 22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product. 23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals.
  • Page 45 RX+ 10 5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.

  • Page 46: Panel Controls

    RX+ 10 PANEL CONTROLS...
  • Page 47 RX+ 10 1. DISPLAY SCREEN 9. PRESET 2. SPEAKER 10. SLEEP/STANDBY 3. VOLUME+/- 11. ENTER 4. AERIAL 12. BATTERY COMPARTMENT 5. BACK/SCAN 13. POWER SWITCH 6. DAB/FM 14. POWER INPUT 7. UP/DOWN 15. EARPHONE PORT 8. INFORMATION/MENU BATTERY POWER INSTALLATION When replacing the batteries, refer to the diagram 1 &...

  • Page 48: General Operation

    RX+ 10 GENERAL OPERATION Mains Adaptor (supplied with the package) Connect the mains adaptor to the power socket on the rear panel. Battery (not supplied) Open the battery door and insert 6 x 1.5V batteries. (Pay attention to the +/- polarities.) Get the best reception Extend the telescopic aerial as far as it can go.

  • Page 49: Store Stations

    RX+ 10 During scanning, the screen will display a slide bar that indicates the progress of the scan, and the amount of radio stations that have been found so far. Once the scan has finished, the radio will select the first alphanumeric station.

  • Page 50: Station Information

    RX+ 10 Scan stations Press and hold the SCAN button to scan the stations. Station information Briefly press the INFO button to check the station’s information. Please refer to DISPLAY INFORMATION. NOTE: (in the menu setting interface) The dialogue screen marks the current setting with an asterisk (*).
  • Page 51 RX+ 10 1. Set clock> Press ENTER> 00:00(Hour:Minutes)> Press to select the Hour digits> Press ENTER> Press to select the Minute digits> Press ENTER to confirm. 2. Set date> Enter the date 01-01-2014 (Day-Month-Year)> Use the above steps of SET CLOCK to select the digits of the date, press ENTER to confirm.

  • Page 52: Display Information

    RX+ 10 6. After all the above settings, enter the SAVE interface, press ENTER to save the alarm 1. To set alarm 2, follow the steps of alarm 1. 7. To cancel the alarms, enter the alarm setting interface, press ENTER button to select alarm off and enter SAVE interface to save the alarm off setting.

  • Page 53: Dab Operation

    RX+ 10 Ensemble/Station name/Multiples A multiplex/ensemble is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area e.g. MXR West. NOTE: DAB-unlike normal radio, groups together several radio stations and transmits them on one frequency.
  • Page 54 RX+ 10 Prune the station When the radio has performed a scan in several locations, you may find there are some stored stations that no longer receive. This prune function automatically can remove them from the stored station list. to find <Prune station>, then follow the tips Enter the menu, press <Press “ENTER”...

  • Page 55: Troubleshooting

    RX+ 10 TROUBLE SHOOTING There is no sound from the speaker. Check if the volume level is turned up; The sound is distorted. The volume is too high, turn down the volume level. Adjust the antenna to get a stronger signal reception.

  • Page 56: Specifications

    RX+ 10 SPECIFICATIONS Mains Supply: DC 8V, 750mA Batteries: 6 x 1.5V (not included) Power consumption (on mode): 5 Watt Power consumption (standby mode): < 1 Watt DAB Frequency: 174.928~239.200MHz FM frequency: 87.5-108MHz Headphone jack: 3,5 mm ACCESSORIES • Power adaptor •...
  • Page 57 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All rights reserved by Blaupunkt Competence Center Audio M3 Electronic GmbH. This material may be reproduced, copied or distributed for personal use only.
