U S I N G T H E E X T E R N A L U N W I N D E R
The Monarch® 945™ External Unwinder is an optional device used with
the Monarch® 9855® and 9860® Printers. The unwinder is capable of
holding a 12 inch roll of supply. It unrolls inside or outside wound
supplies. The unwinder comes assembled. These instructions help
explain how to set up and use the unwinder.

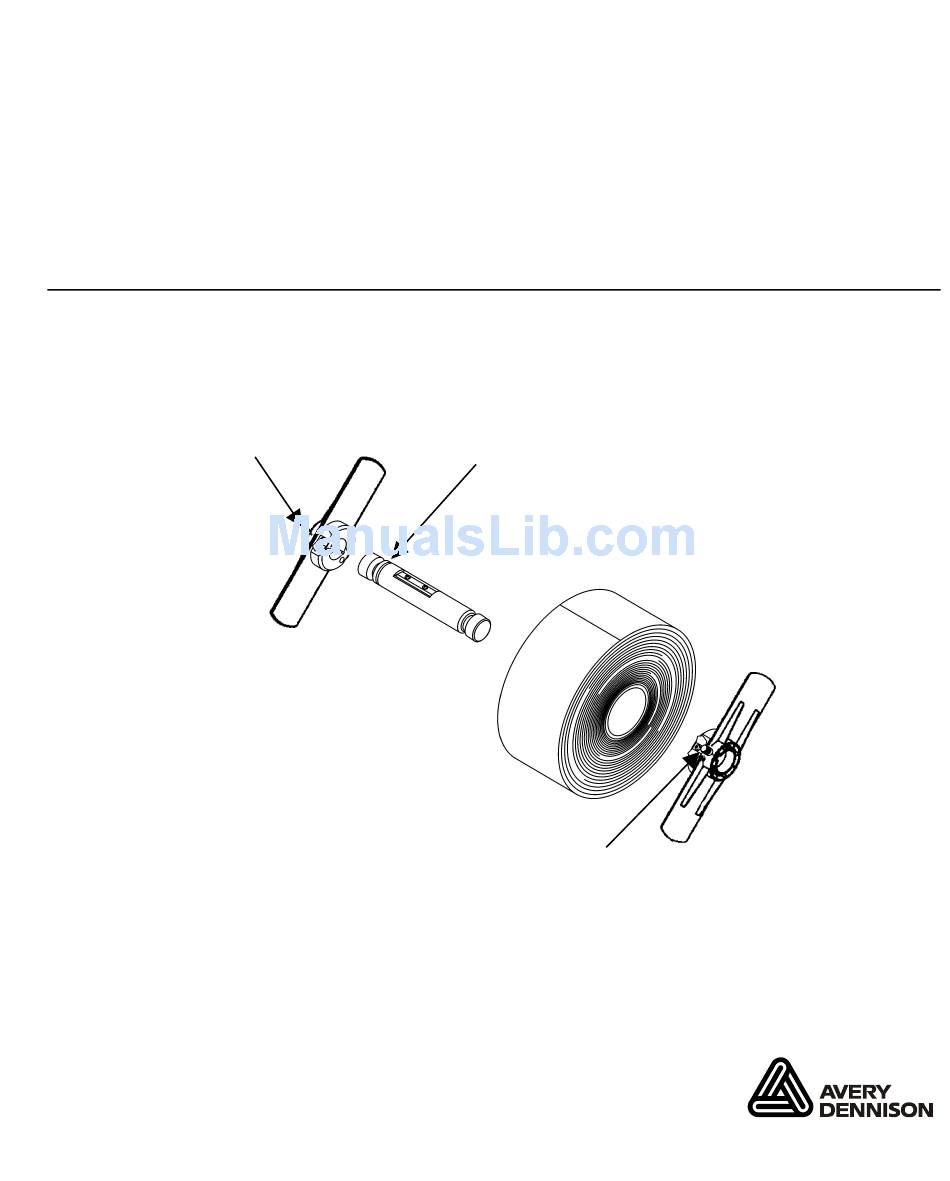

A s s e m b l i n g t h e W i n d i n g A x l e F l a n g e s
1. Slide the flange with the small setscrew on the axle end that has a
setscrew groove. Make sure the setscrew seats in the groove and
tighten it.
Small Setscrew
2. Slide the roll of supply onto the axle then the flange with the large
thumbscrew and tighten it.
3. Place the axle assembly into the notches of the unwinder frame.
TC9800UWSG Rev. AB 12/07
Setscrew Groove
Large Thumbscrew
©2005 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp.
All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paxar External Unwinder Monarch 945
Summary of Contents for Paxar External Unwinder Monarch 945
- Page 1 2. Slide the roll of supply onto the axle then the flange with the large thumbscrew and tighten it. 3. Place the axle assembly into the notches of the unwinder frame. TC9800UWSG Rev. AB 12/07 Setscrew Groove Large Thumbscrew ©2005 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved.
- Page 2 A l i g n i n g t h e U n w i n d e r w i t h t h e P r i n t e r 1. Visually line up the unwinder axle flanges to the supply slot on the printer. Move the unwinder about five to six inches away from the printer. The following art shows the unwinder rotated for outside wound supplies.
