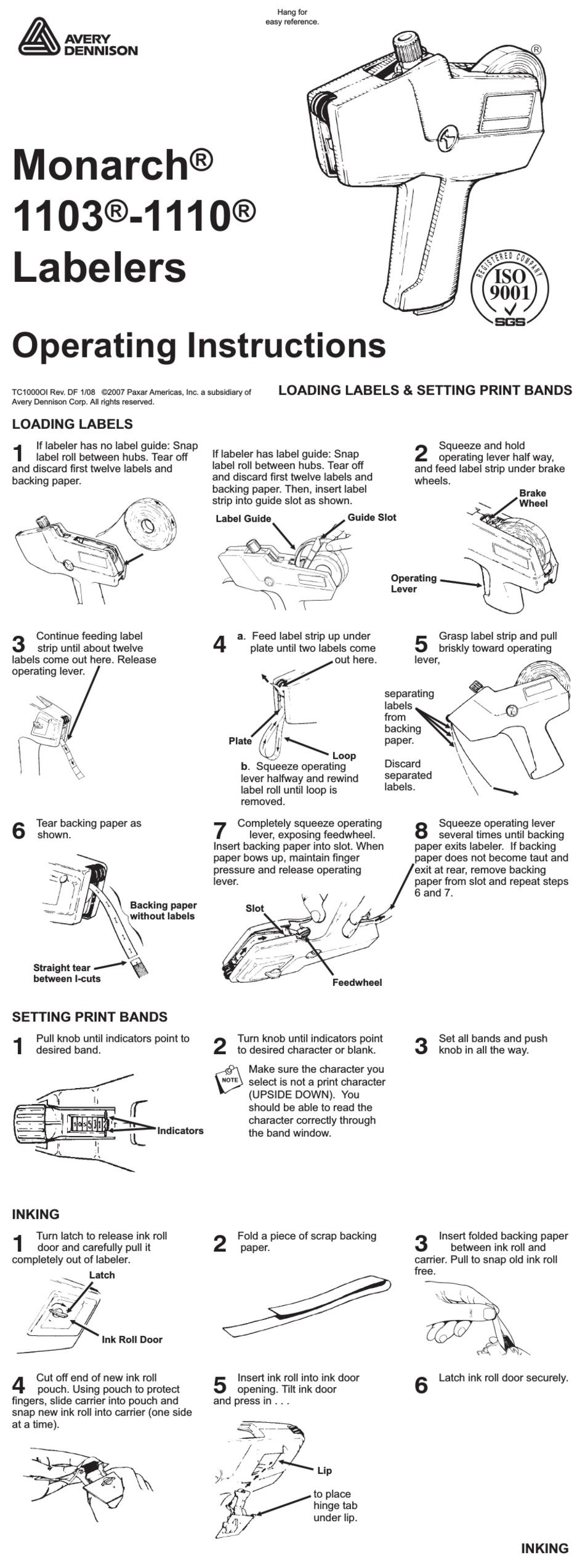

Monarch
1103
®
Labelers

Operating Instructions

TC1000OI Rev. DF 1/08 ©2007 Paxar Americas, Inc. a subsidiary of
Avery Dennison Corp. All rights reserved.

LOADING LABELS

If labeler has no label guide: Snap
1
label roll between hubs. Tear off
and discard first twelve labels and
backing paper.
Continue feeding label
3
strip until about twelve
labels come out here. Release
operating lever.
Tear backing paper as
6
shown.
Straight tear
between I-cuts

SETTING PRINT BANDS

Pull knob until indicators point to
1
desired band.

INKING

Turn latch to release ink roll
1
door and carefully pull it
completely out of labeler.
Latch
Ink Roll Door
Cut off end of new ink roll
4
pouch. Using pouch to protect
fingers, slide carrier into pouch and
snap new ink roll into carrier (one side
at a time).
®
-1110
®
If labeler has label guide: Snap
label roll between hubs. Tear off
and discard first twelve labels and
backing paper. Then, insert label
strip into guide slot as shown.
Label Guide
a. Feed label strip up under
4
Plate
Completely squeeze operating
7
Insert backing paper into slot. When
paper bows up, maintain finger
pressure and release operating
lever.
Backing paper
without labels
Turn knob until indicators point
2
to desired character or blank.
n
Indicators
Fold a piece of scrap backing
2
Insert ink roll into ink door
5
opening. Tilt ink door
and press in . . .
Hang for
easy reference.
LOADING LABELS & SETTING PRINT BANDS
Guide Slot
plate until two labels come
out here.
Loop
b. Squeeze operating
lever halfway and rewind
label roll until loop is
removed.
lever, exposing feedwheel.
Slot
Feedwheel
Make sure the character you
select is not a print character
(UPSIDE DOWN). You
should be able to read the
character correctly through
the band window.
paper.
Lip
to place
hinge tab
under lip.
Squeeze and hold
2
operating lever half way,
and feed label strip under brake
wheels.
Operating
Lever
Grasp label strip and pull
5
briskly toward operating
lever,
separating
labels
from
backing
paper.
Discard
separated
labels.
Squeeze operating lever
8
several times until backing
paper exits labeler. If backing
paper does not become taut and
exit at rear, remove backing
paper from slot and repeat steps
6 and 7.
Set all bands and push
3
knob in all the way.
Insert folded backing paper
3
between ink roll and
carrier. Pull to snap old ink roll
free.
Latch ink roll door securely.
6
â
Brake
Wheel
INKING
