Paxar 9460 Operating Instructions

Four-station battery charger

O P E R A T I N G I N S T R U C T I O N S

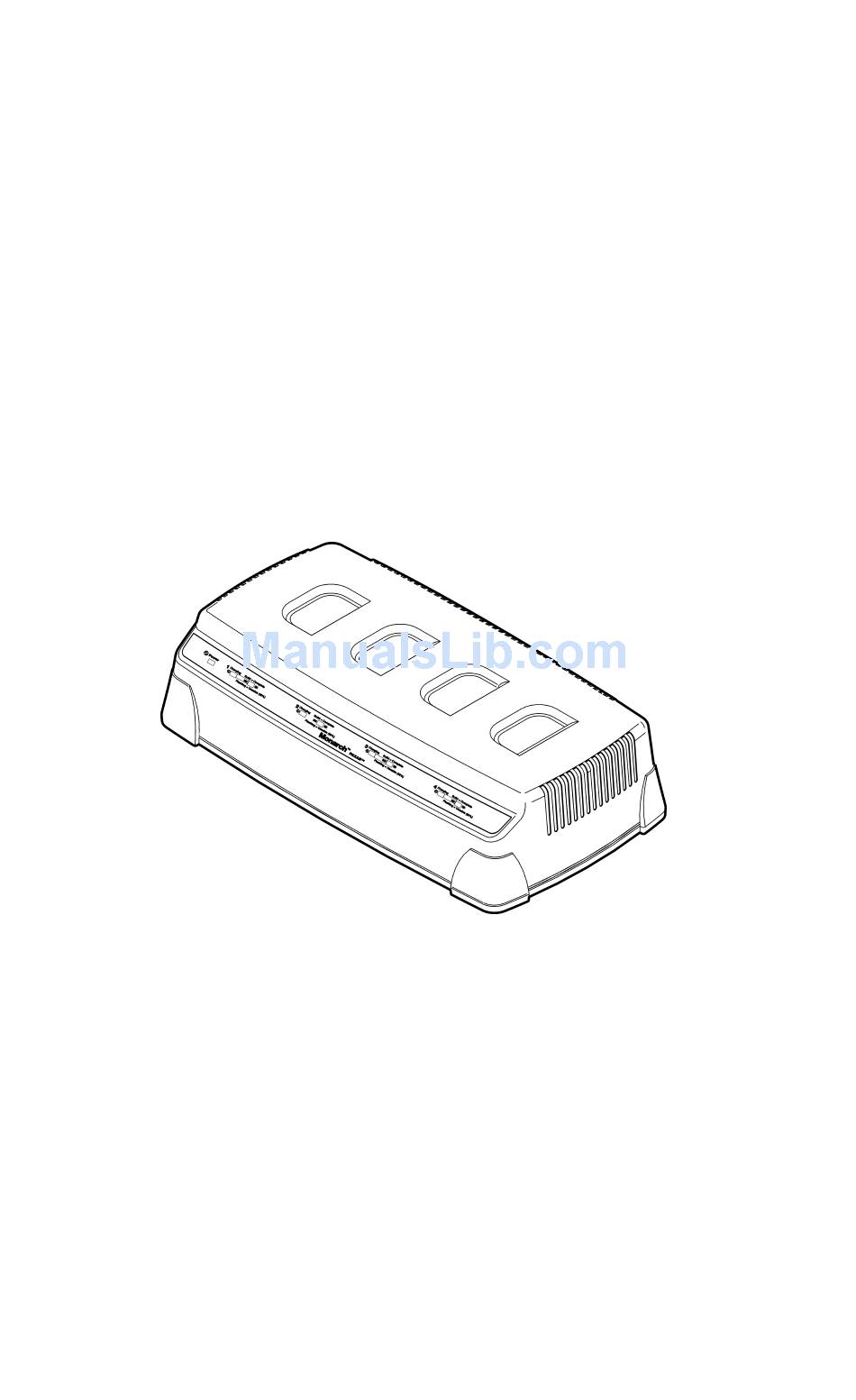

The Monarch® 9465™ Four-Station Battery Charger

charges from one to four 7.4V lithium-ion batteries for the

following printers:

♦ Sierra Sport2™ 9460™

♦ Sierra Sport3™ 9433™

♦ Monarch® Pathfinder® Ultra® Silver 6032™

♦ Monarch® Pathfinder® Ultra® Gold 6037™

♦ Monarch® Pathfinder® Ultra® Platinum 6039™

Note:

You must charge a battery before using it.

♦ Use only a Monarch-qualified battery.

♦ The battery could be damaged or explode if placed on

a different charger.

♦ Do not throw the battery in the trash. Dispose

according to your local regulations.

♦ Do not disassemble, short-circuit, heat above 80°C, or

incinerate the battery. It may explode.

♦ Follow the operating and storage limit specifications

listed at the end of these instructions. Otherwise, the

battery may permanently lose its charge capacity.

TC9465OI Rev. AC 4/06

WARNINGS

Table of Contents

Need help?

Do you have a question about the 9460 and is the answer not in the manual?

Page 1 It may explode. ♦ Follow the operating and storage limit specifications listed at the end of these instructions. Otherwise, the battery may permanently lose its charge capacity. TC9465OI Rev. AC 4/06 WARNINGS ©2005 Paxar Americas, Inc. All rights reserved.
Page 2 C o n n e c t i n g t h e P o w e r S u p p l y To connect the power supply: 1. Plug one end of the power supply into a wall electrical outlet.
Page 3: Reading The Display
C h a r g i n g a B a t t e r y To charge a battery, insert the battery into the charger as shown. Charging time can take up to three hours. It takes approximately two hours to reach the 80% level (where it is now usable).
Page 4: Power Supply
Width: Height: Input: Weight: Power Supply Input: Output: Visit www.paxar.com for sales, service, supplies, information, and telephone numbers for our locations throughout the world. Toll Free: 1-800-543-6650 (In the U.S.A.) 1-800-363-7525 (In Canada) 4 Operating Instructions 32°F to 104°F (0°C to 40°C) 5% to 90% non-condensing -40°F to 158°F (-40°C to 70°C)
