Summary of Contents for Patton electronics SMART-DTA 07MSDTA-QS
Page 1

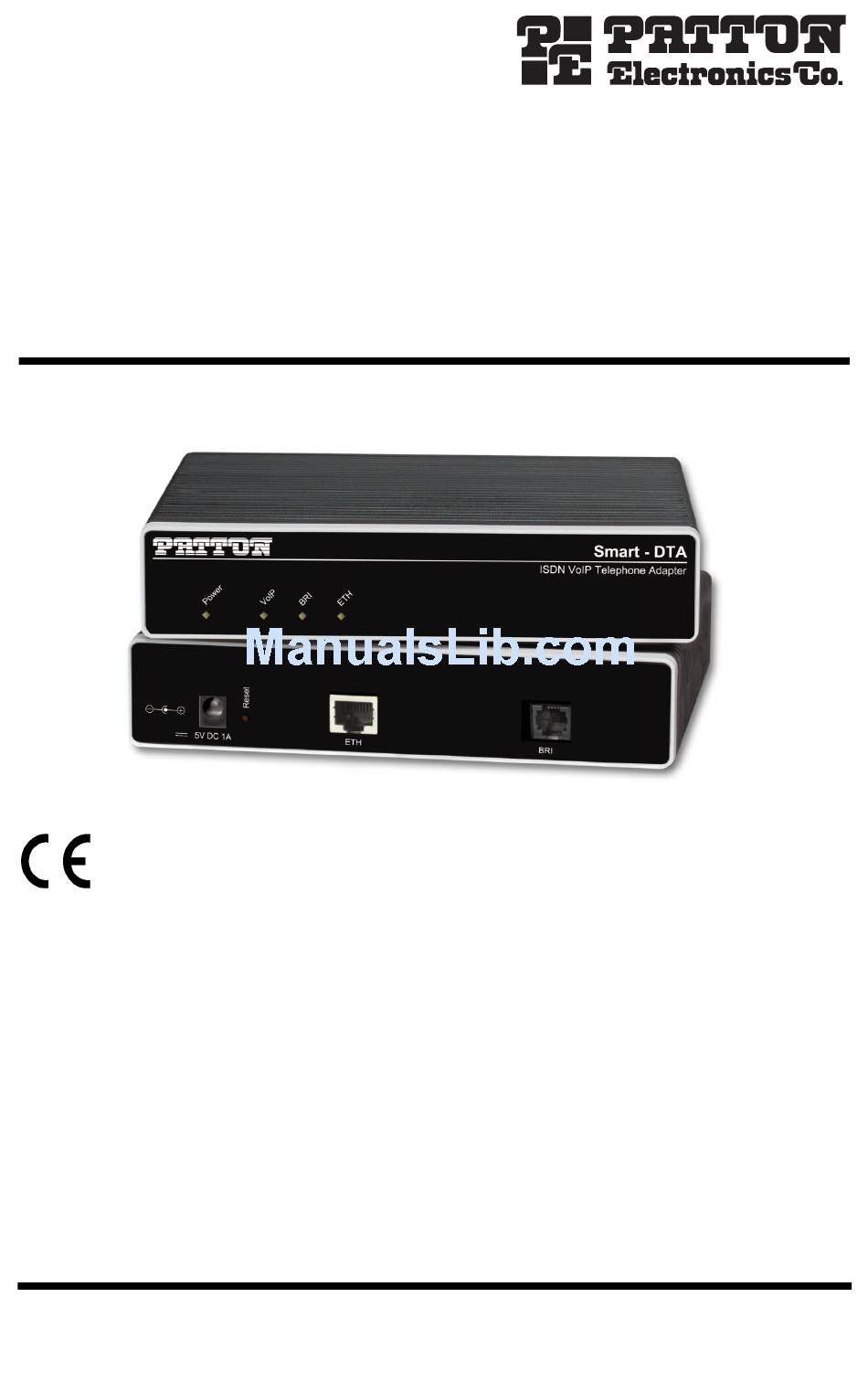

Smart-DTA™ ISDN VoIP Telephone Adapter Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. Caution —This device is not intended nor approved for connection to the public ISDN telecommuni- cation network.
Page 2
• The Smart-DTA contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Do not open the case the power cord is attached. The external power adaptor shall be a listed limited power source that incorporates a disconnect device and shall be positioned within easy reach of the operator.
Page 3
2.0 Connect the Smart-DTA to your local network You must connect the Smart-DTA to an IP network that provides a DHCP server. Using the included black Ethernet cable, connect the Smart-DTA RJ-45 Ethernet WAN port, labeled ETH (see figure 1), to an Ethernet hub or switch on the same network as your PC.
Page 4
3.0 Connect the Smart-DTA to an ISDN phone Using a straight-though cable, terminated with RJ-45 connectors, connect the BRI port of your Smart-DTA to the S/T port of your ISDN phone, as shown below: RJ-45, male Note: Other pins are not used. ISDN Phone RJ-45, male...
4.0 Start the SmartNode Discovery Tool Insert the CD included with your Smart-DTA into the CD drive on your PC. Copy the file named SNDiscovery.exe from the CD to your PC. At your PC, double-click the SNDiscovery.exe file name to activate the tool. The SmartNode Discovery Tool window will display the IP Address, MAC Address, Device Type (model number) and Build (software release) of your Smart-DTA.
Page 6
Right-click the selected line, and select Webbrowser . The Login window will display. Enter the username administrator . Do not enter a password. Instead simply click OK. Your web browser will display the Smart-DTA home page. 6.0 Configuring your Smart-DTA Once you have logged in you can use the browser-based graphical user interface (GUI) to configure and manage your S-DTA.
The GUI consists of the following main elements: The “Navigation Bar” on the left edge presents you with a menu listing giving access to the various configura- • tion and status pages of the Smart-DTA. At the top of the page you see the “Current System Path” which displays the location and element currently •...
B.0 Appendix—Factory default IP addresses Factory default IP addresses and netmask configuration. WAN interface Ethernet 0 (0/0) LAN interface Ethernet 1 (0/1) DHCP server address range (LAN) C.0 Compliance Information C.1 Compliance EMC Compliance: FCC Part 15, Class A • EN55022, Class A •...
Page 9
C.3 EC Declaration of Conformity (See section C.4 “EG-Konformitätserklärung” Product Description: Smart-DTA The products described above in the form as delivered are in conformity with the provisions of the following European Directive: R&TTE Directive 1999/5/EC Guidelines of the European Parliament and the Committee for the Harmonization of the Legal Regu- lations of the Member States concerning radio equipment and telecommunications terminal equip- ment and the mutual recognition of their conformity.
