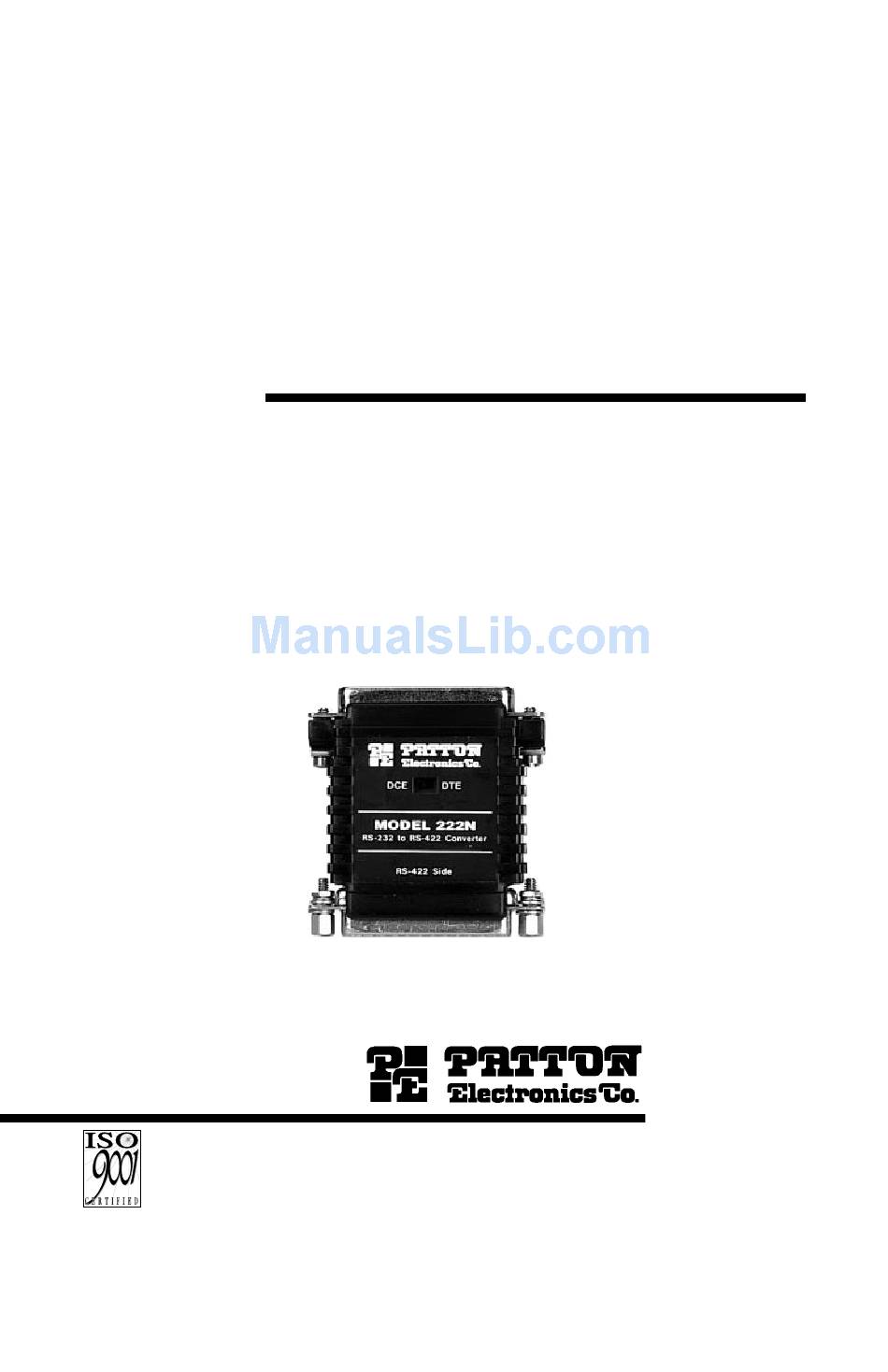

- Page 1 USER MANUAL MODEL 222N and 222NS Miniature RS-232 to RS-422 Converters Part #07M222N-C Doc. #023022U, Rev. D Revised 1/23/08 C E R T I F I E D An ISO-9001 Certified Company SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007 http://www.patton.com...
-
Page 2: Radio And Tv Interference
1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 222N components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse, or unauthorized modification. - Page 3 1.3 SERVICE All warranty and non-warranty repairs must be returned freight prepaid and insured to Patton Electronics. All returns must have a Return Materials Authorization number on the outside of the shipping container. This number may be obtained from Patton Electronics Technical Service at (301) 975-1007, http://www.patton.com, or support@patton.com.
-
Page 4: General Information
2.0 GENERAL INFORMATION Thank you for your purchase of this Patton Electronics product. This product has been thoroughly inspected and tested and is warranted for One Year parts and labor. If any questions or problems arise during installation or use of this product, please do not hesitate to contact Patton Electronics Technical Support at (301) 975-1007. -
Page 5: Setting The Dte/Dce Switch
The Model 222N is designed to be easy to use. There are no internal jumpers or DIP switches to set, so there is no need to open the case to configure the unit (you may need to open the case for wire connection—refer to section 4.0). -
Page 6: Installation
Once you have properly configured the DTE/DCE switch, you are ready to connect the Model 222N to your system. This section tells you how to properly connect the Model 222N to the RS-422 and RS-232 interfaces, and how to operate the Model 222N. 4.1 CONNECTION TO THE RS-422 INTERFACE The Model 222N supports data-only communication distances up to 4000 feet between itself and the RS-422 device. - Page 7 4.1.2 RS-422 CONNECTION USING RJ-11 OR RJ-45 The RJ-11 and RJ-45 connectors on the Model 222N's RS-422 side are pre-wired for a standard TELCO wiring environment. The signal/pin relationships are shown below: RJ-11 SIGNAL 1...GND* 2...RCV- 3...XMT+ 4...XMT- 5...RCV+ 6...GND In most modular RS-422 applications, it is necessary to use a "cross over"...
- Page 8 4.1.3 RS-422 CONNECTION USING TERMINAL BLOCKS If your RS-422 application requires you to connect two pairs of bare wires to the Model 222N, you will need to open the case to access the terminal blocks. The following instructions will tell you how to open the case, connect the bare wires to the terminal blocks, and fasten the strain relief collar in place so that the wires won't pull loose.
- Page 9 3. Strip back the insulation on each of the 2 twisted pair wires about .25". 4. Connect one pair of wires to XMT+ and XMT- (transmit positive and negative) on the terminal block, making careful note of which color is positive, and which color is negative. 5.
- Page 10 8. Place the 2 halves of the strain relief assembly on either side of the telephone wire and press together very lightly. Slide the assembly so that it is about 2 inches from the terminal posts and press together firmly. If your cable diameter is too small or too large for our strain relief, please contact our technical support.
- Page 11 11. Insert one captive screw through a saddle washer, then insert the captive screw with the washer on it through the hole in the DB-25 end of the case. Snap that side of the case closed. Repeat the process for the other side. This completes the cable installation process.
- Page 12 PATTON MODEL 222N SPECIFICATIONS Date Rates: Transmission Format: Transmission Mode: Power: Surge Protection: Factory Switch Setting: Dimensions: APPENDIX A 19,200 bps (according to the RS- 232 interface) Asynchronous Full/half duplex AC power not required, derives approximately 3mA from RS-232 data and control voltages Compliant with IEC 801.5 level 2, 1kV (Model 222NS Only) DCE;...
- Page 13 PATTON MODEL 222N CABLE RECOMMENDATIONS The Patton Model 222N operates at frequencies of 20kHz or less and has been performance tested by Patton technicians using twisted- pair cable with the following characteristics: Wire Gauge 19 AWG/.9mm 22 AWG/.6mm 24 AWG/.5mm To gain optimum performance from the Model 222N, please keep the following guidelines in mind: •...
- Page 14 PATTON MODEL PIN ASSIGNMENTS DIRECTION To Model 222N Data Term. Ready (DTR) - 20 DIRECTION From Model 222N Data Term. Ready (DTR) - 20 APPENDIX C EIA-232 Interface (DB-25 Connector) STANDARD "DCE" SETTING 1- (FG) Frame Ground 2- (TD) Transmit Data 3- (RD) Receive Data 4- (RTS) Request to Send 5- (CTS) Clear to Send...
- Page 15 PATTON MODEL PIN ASSIGNMENTS EIA-422 (EIA-530) Interface (DB-25 Connector) SIGNAL/PIN # Transmit Data - (XMT-) - 14 Receive Data - (RCV) - 16 EIA-422 Interface (RJ-11 Female Connector) RJ-11 (6 Pin) EIA-422 Interface (RJ-45 Female Connector) RJ-45 (8 Pin) NOTE: Signals XMT+ and XMT- are the EIA=422 “A” and “B” transmitters, respectively; Signals RCV+ and RCV- are the EIA-422 “A”...
- Page 16 APPENDIX D PATTON MODEL 222N BLOCK DIAGRAM Copyright © 1997 Patton Electronics Company All Rights Reserved...
- Page 20 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
