Patton electronics NetLink 2960 RAS Datasheet

The Patton 2960 Remote Access Server provides 16 to 60 dial-up ports each supporting V.92, V.90,
V.44, K56Flex™, V.34+, and ISDN connections.
16, 24, 30, 48, or 60 ports in a 1U-
High Platform
Model 2960 uses the latest technology
to achieve the highest densities
Dynamic Analog/Digital Modems
All modems (V.92, V.44, V.90, K56Flex™, V.34+
and ISDN) are dynamically supported on dedicat-
ed DSPs
Frame Relay & PPP Network Uplinks
Dual Network uplinks to a FR switch or IP router
for high speed trunking
SNMP/HTTP Network Management
Use a standard Web Browser, HP OpenView™ or
simple PCs to configure and manage the 2960
MultiLink and Multichassis Support
Combine multiple dial-in sessions, even across
boxes to deliver the highest performance
Dial-out/Callback/Dial-on-demand
Use the Model 2960 as a dial-out modem pool
and support advanced dial-out applications
Dual-Redundant Power Supplies
Provide non-stop access with our high MTBF
2960. Convection-cooled and stackable
without fans
T
he Model 2960 integrates standard
CSU/DSUs and a 10/100 Ethernet port
with Frame Relay and PPP/HDLC pro-
tocol support
Remote Access Products

Remote Access Server

Patton 2960 Dual T1/E1/PRI RAS
T he Patton 2960 RAS is an ideal
solution for the established Internet
Service Provider that is expanding
into a new calling area. By integrating
capabilities into our 2960 Remote Access
Server, the ISP lowers expansion costs
and produces revenue immediately.
The 2960 RAS integrates up to 60 analog
and digital modems, radius Accounting
and Authentication Client, a 10/100
Ethernet port, IP Routing, Frame Relay
forwarding, and four built-in E1/T1
CSU/DSUs. It connects 16 to 60 dial-in-
Dial-Up Users
V.92/V.90
K56Flex
™
V.34+
ISDN SOHO Router

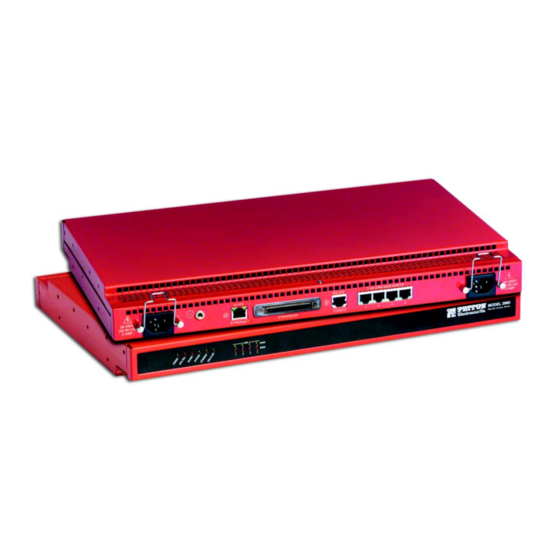

Model 2960 RAS
10/100 Ethernet Port
modems with V.92, V.44, V.90, K56Flex,
V.34+ or ISDN users to the Internet, IP
LANs, or Corporate Intranets. Load-shar-
ing dual-redundant
power supplies and
integrated Web-based
SNMP/HTTP manage-
ment system capabili-
ties make our 2960
RAS the most reliable
and easiest to use RAS in the business!
Need additional details?
Visit us at www.patton.com.
The 2960 RAS supports over
PSTN/ISDN
20 signaling methods and
PSTN/ISDN switch types and
24/30 Calls
16/24/30/48/60 analog or
on each
digital modems
T1/PRI and
E1/PRI
Access Port
Two Frame Relay/PPP
Uplink Ports with
integrated T1 CSU/DSU
and E1 NTU
Special Rates
Available
Call for Details
Internet
& WWW
WWW
