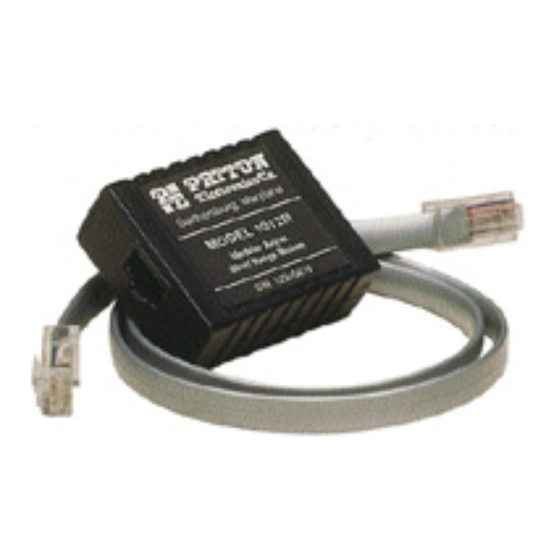

- Page 1 USER M A N UA L MODEL 1012AR Asynchronous, Carrier Controlled Short Range Modem Part# 07M1012AR-A SALES OFFICE Doc# 040051UA (301) 975-1000 Revised 11/22/94 TECHNICAL SUPPORT (301) 975-1007 http://www.patton.com...
-
Page 2: Warranty Information
However, there is no guarantee that interfer- ence will not occur in a particular installation. If the Model 1012AR does cause interference to radio or television reception, which can be... - Page 3 10 Pin RJ-45 (DCE) Figure 2. Pin-outs for the Model 1012AR’s modular EIA/TIA-561 interface jack If you wish to use the Model 1012AR with a DTE device that is RTS/CTS equipped with a DB-25 RS-232 port, you will need to construct a Strap patch cable according to the diagram shown in Figure 3 (below).
- Page 4 “transmitter controlled by RTS” (strap in place). 4.3.1 STAR TOPOLOGY Figure 4 (below) shows how to wire the two-pair cables properly for a Model 1012AR star topology. Note that the ground connection is not needed HOST...
- Page 5 5 to 95% noncondensing Weight: 2 oz. Dimensions: 2.66” x 2.10” x 0.73” Distance Table (miles) Data Wire Gauge Rate 38,400 19,200 9,600 4,800 2,400 1,200 Copyright © Patton Electronics Company All Rights Reserved APPENDIX B PAT TON MODEL 1012AR BLOCK DIAGRAM...
