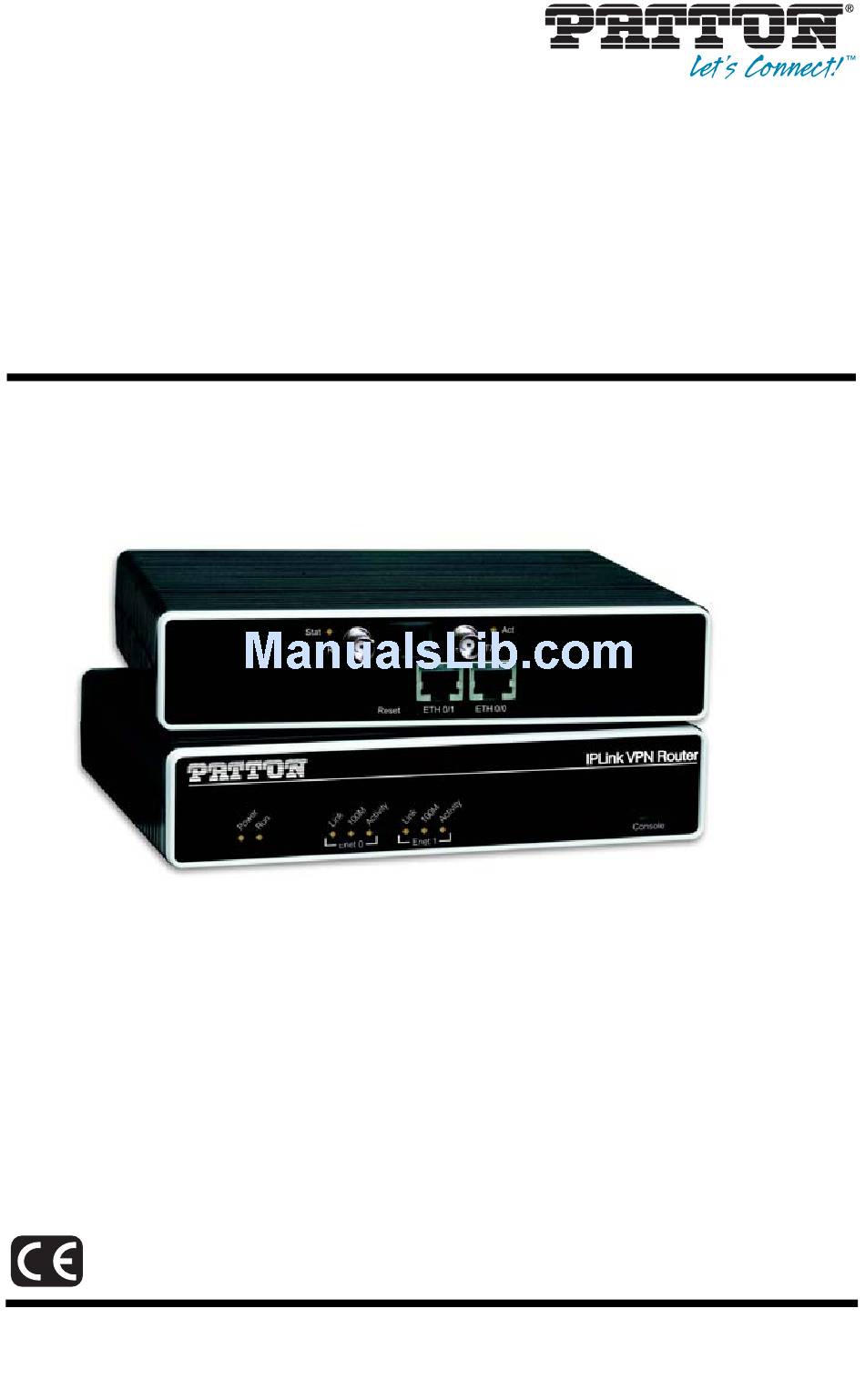

Page 1: Quick Start Guide
OnSite™ 2800 Series VPN Routers Quick Start Guide Part Number: 07M2800-QS, Rev. E Revised: February 22, 2012 Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com... - Page 2 Connect the AC power cord male plug to an AC power outlet (100–240 VAC). 1.2 Models with internal AC power supply Connect the AC power cord female plug directly to the OnSite AC connector. Connect the AC power cord male plug to an AC power outlet (120–240 VAC). OnSite 2800 Quick Start Guide...
-
Page 3: Setting The Ip Address
1). Use the black Ethernet cable included with your OnSite for this purpose. figure Connect to Ethernet LAN ports 0/1Ð0/4 Set your PC’s TCP/IP configuration to DHCP to automatically receive an IP address from the OnSite. OnSite 2800 Quick Start Guide IPLink 2800 192.168.1.1/24 Connecting to the PC’s ENET port Figure 1. -
Page 4: Changing The Ip Address
IP address from your IP network’s DHCP server. If you changed the IP address as we showed in this example, it assumes your IP network (actually Ethernet segment) is on the same subnet, 192.16.1.0/24. OnSite 2800 Quick Start Guide... -
Page 5: Connecting To The Network
OnSite 2800 Series User Manual available online at 4.0 Connecting the OnSite serial port If your OnSite is equipped with a serial WAN port, connect it to the appropriate DCE. The OnSite 2800 Series is available with the following serial interfaces: V.35 (DB-25)—Model 2835... -
Page 6: Additional Information
For modifying the T1/E1 port configuration, consult the OnSite Software Configuration Guide on the Patton web- site: www.patton.com/manuals. 5.0 Additional information For detailed information about configuring and operating guidance, set up procedures and troubleshooting, refer to the OnSite 2800 Series User Manual available online at www.patton.com/manuals/2800.pdf. OnSite 2800 Quick Start Guide... -
Page 7: Ec Declaration Of Conformity
The safety advises in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The signed Declaration of Conformity can be downloaded from OnSite 2800 Quick Start Guide www.patton.com/certifications/. -
Page 8: Copyright Statement
OnSite 2800 Series User Manual available online at www.patton.com/manuals/ 2800.pdf. Warranty, Compliance Information For warranty, trademark and compliance information, refer to the OnSite 2800 Series User Manual available online at www.patton.com/manuals/2800.pdf. Ultimate disposal of this equipment must be handled according to all applicable national laws and regulations.
