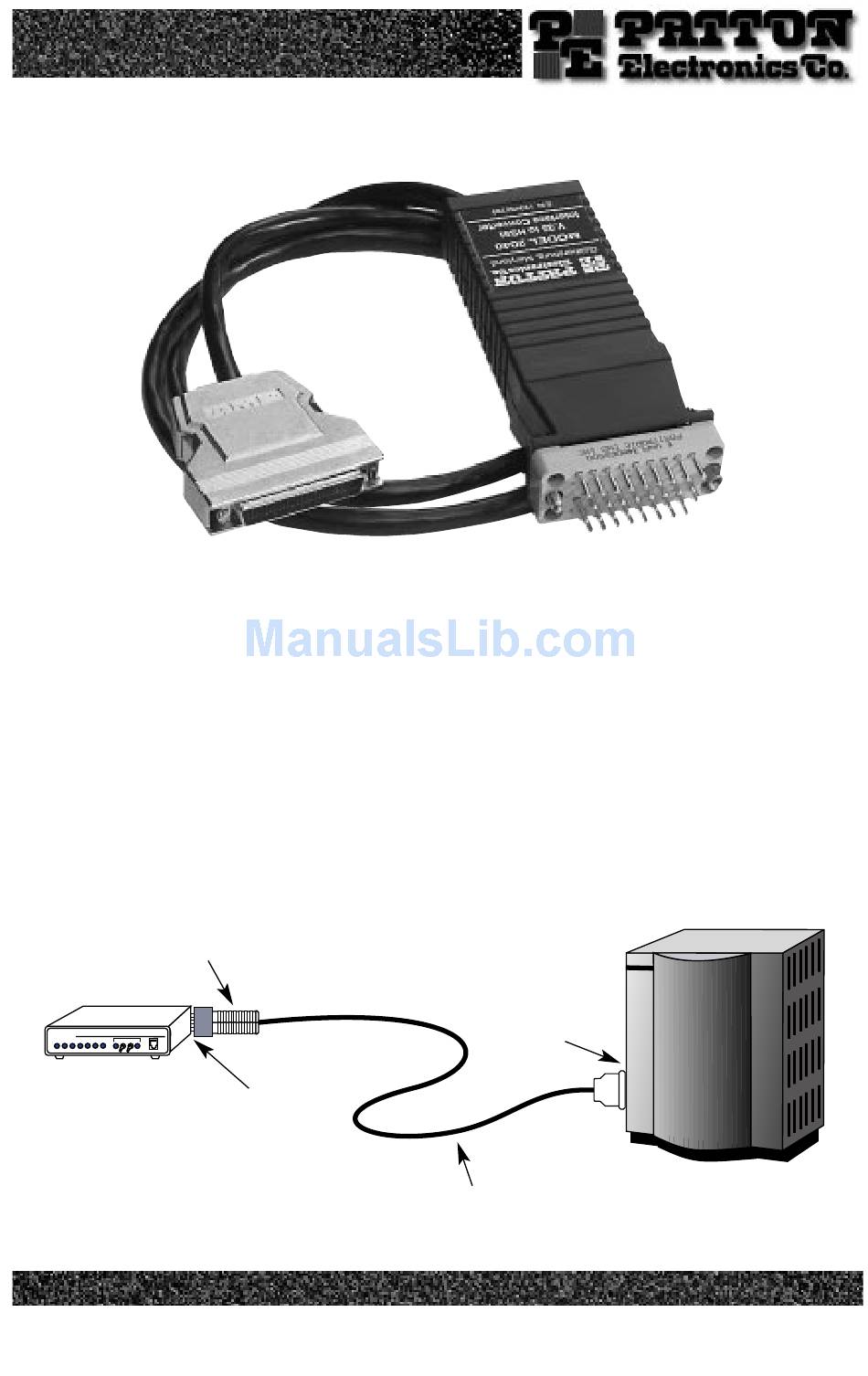

The Patton 2040 Series interface con-
verter allows a switch or router with a
HSSI interface (such as the Ascend GRF
IP Switch) to connect directly to a CSU,
bridge, router, multiplexer or other device
with a V.35, X.21 or RS-530 interface.
Supporting synchronous data rates up to
10 Mbps, the Patton 2040 Series is trans-
parent to protocol and passes all data
Patton 2040 Series
Interface Converter
T1 CSU
Patton Electronics Company • 7622 Rickenbacker Dr. • Gaithersburg, MD • 20879
Phone: (301) 975-1000 • Fax: (301) 869-9293 • E-mail: sales@patton.com • WWW: http://www.patton.com
The Patton 2040 Series
V.35 Port (X.21 &
RS-530 converters
also available)
signals, all control signals, and all HSSI
clocking paths (except smooth to gapped
clock). Both local line and remote line
loopbacks are supported. All three mod-
els in the Patton 2040 Series are avail-
able in two versions: DCE-to-DTE or
DTE-to-DCE. The Patton 2040 Series is
externally AC powered, and is supplied
with an integral 6ft (1.8 m) cable.
HSSI Port
Integral 6 ft cable
