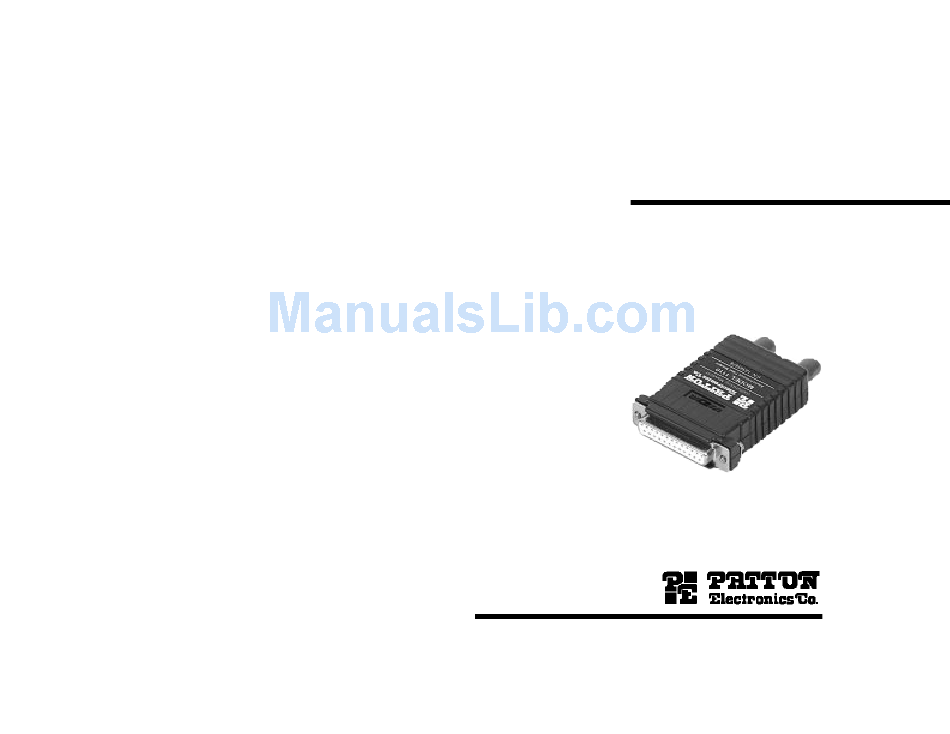

- Page 1 USER MANUAL MODEL 1110 Asynchronous, Carrier Controlled Fiber Optic Modem 07M1110-C SALES OFFICE Doc # 018011UC (301) 975-1000 Revised 9/26/96 TECHNICAL SUPPORT (301) 975-1007...
- Page 2 Drawing all necessary power from the RS-232 interface, the Model 1110 requires no AC power or batteries to operate. Measuring only 2.66” x 2.10” x .73”, the Model 1110 is able to fit into tight installation spaces. A convenient pop-open/snap-shut ABS plastic case allows easy access to configuration switches.
-
Page 3: Detailed Switch Settings
For your convenience, the Model 1110 has an externally accessible DCE/DTE switch (see Figure 1, below). If the device connected to the Model 1110 is a PC, terminal or host computer (or is wired like one), set the switch to “DCE”. This causes the Model 1110 to behave like Data Communications Equipment and transmit data on pin 3. -
Page 4: Installation
. You will need one at each end of a dual fiber cable. This cable connects to each Model 1110 using either an ST or an SMA connector. Figure 4 (below) shows a close up of each of these connector types. -
Page 5: Operation
RS-232 data and control signals; there is no “ON/OFF” switch. All data signals from the RS-232 interface are passed straight through. When the local and remote Model 1110’s are both powered up and passing data normally, the following LED conditions will exist: •... -
Page 6: Pin Configurations
3- (RD) Receive Data 4- (RTS) Request to Send 5- (CTS) Clear to Send 6- (DSR) Data Set Ready 7- (SG) Signal Ground To Model 1110 Data Term. Ready (DTR) - 20 8- (DCD) Data Carrier Detect DIRECTION “DTE” STANDARD SETTING...
