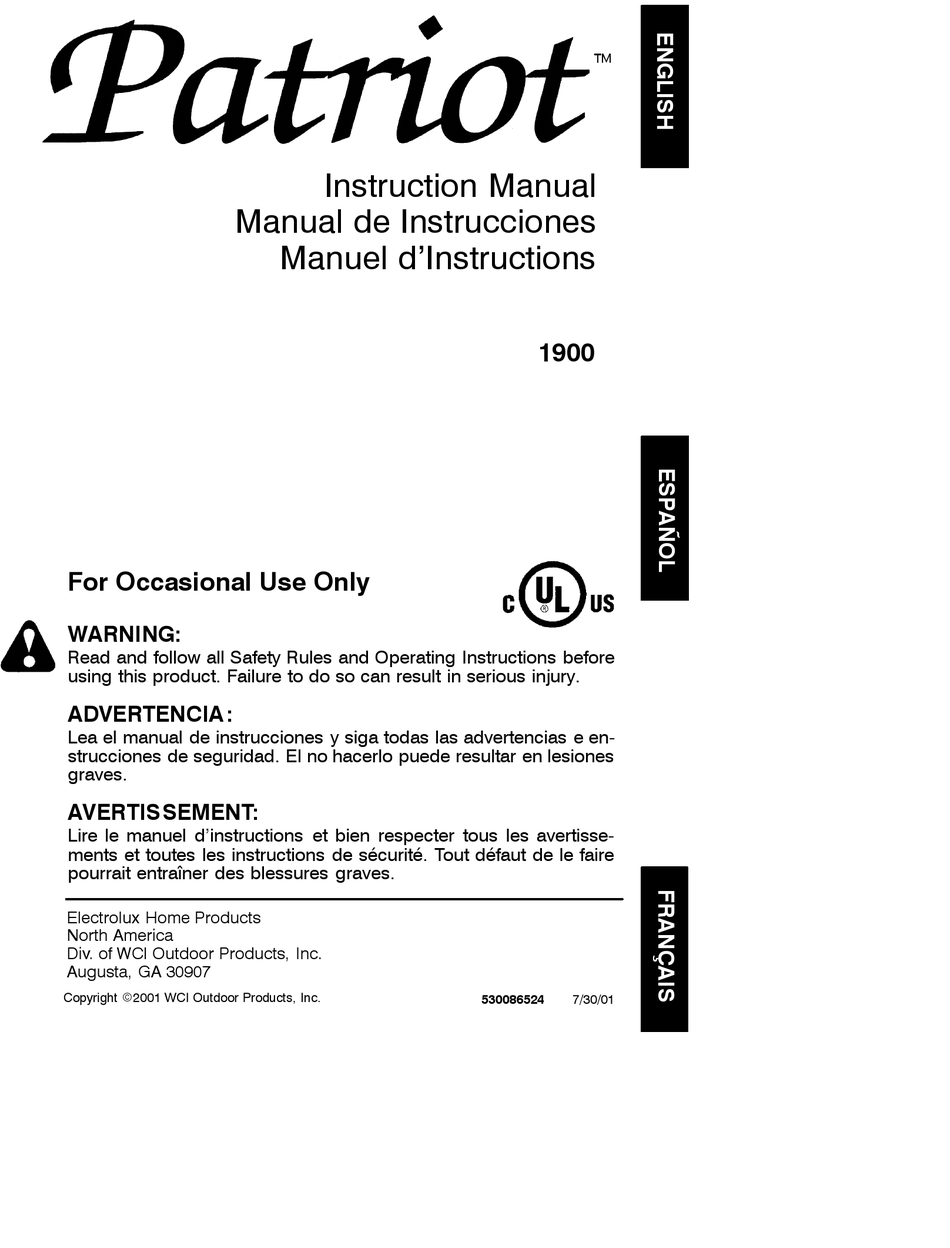

Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA :
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products
North America
Div. of WCI Outdoor Products, Inc.
Augusta, GA 30907
Copyright E2001 WCI Outdoor Products, Inc.
Instruction Manual
Manuel d'Instructions
t
1900
530086524
7/30/01
Advertisement
Table of Contents
Related Manuals for Patriot 1900
Summary of Contents for Patriot 1900
-
Page 1: Instruction Manual
Tout défaut de le faire pourrait entraîner des blessures graves. Electrolux Home Products North America Div. of WCI Outdoor Products, Inc. Augusta, GA 30907 Copyright E2001 WCI Outdoor Products, Inc. 1900 530086524 7/30/01... -
Page 2: Identification Of Symbols
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;... - Page 3 S Carefully plan your sawing operation in ad- vance. Do not start cutting until you have a clear work area, secure footing, and, if you are felling trees, a planned retreat path. OPERATE YOUR SAW SAFELY S Do not operate a chain saw with one hand. Serious injury to the operator, helpers, by- standers or any combination of these per- sons may result from one-handed opera-...
-
Page 4: Maintain Control
Avoid Obstructions Clear The Working Area REDUCE THE CHANCE OF KICKBACK S Recognize that kickback can happen. With a basic understanding of kickback, you can reduce the element of surprise which contributes to accidents. S Never let the moving chain contact any ob- ject at the tip of the guide bar. - Page 5 Kickback Computed kickback angle (CKA) Table MODEL Length 1900 952044366 can be caused by allowing contact of the bar tip in the danger zone with any hard object. Kickback can also be caused by pinching the saw chain along the top of the guide bar.
-
Page 6: Safety Notice
NOTE: If this saw is to be used for com- mercial logging, a chain brake is required and shall not be removed or otherwise dis- abled to comply with Federal OSHA Regula- tions for Commercial Logging. SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of... -
Page 7: Chain Tension
Depth Gauge Cutters Drive Links Place chain onto the sprocket S Place chain over and behind clutch, fitting the drive links in the clutch drum sprocket. S Fit bottom of drive links between the teeth in the sprocket in the nose of the guide bar. S Fit chain drive links into bar groove. -
Page 8: Operation
OPERATION KNOW YOUR CHAIN SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Front Hand Guard Chain Adjustment Tool... -
Page 9: Starting A Cold Engine
FUELING & LUBRICATION WARNING: Remove fuel cap slow- ly when refueling. FUELING ENGINE This engine is certified to operate on unleaded gasoline. Before operation, gasoline must be mixed with a good quality 2-cycle air-cooled engine oil. We recommend Poulan/Weed Eat- erR brand oil. -
Page 10: Difficult Starting
S Push the choke knob in completely (to the OFF position); pull the starter rope until the engine starts. CHOKE (SIDE VIEW) Choke knob FULL S Allow the engine to run for approximately 5 seconds. Then, squeeze and release throttle trigger to allow engine to return to idle speed. -
Page 11: Tree Felling Techniques
Release the throttle trigger as soon as the cut is completed, allowing the en- gine to idle. If you run the saw at full throttle without a cutting load, unnec- essary wear can occur to the chain, bar, and engine. To avoid losing control when cut is complete, do not put pressure on saw at end of cut. - Page 12 S DO NOT cut down a partially fallen tree with your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall com- pletely, set the saw aside and pull down the tree with a cable winch, block and tackle, or tractor.
- Page 13 Using a support stand LIMBING AND PRUNING WARNING: Be alert for and guard against kickback. Do not allow the moving chain to contact any other branches or ob- jects at the nose of the guide bar when limb- ing or pruning. Allowing such contact can re- sult in serious injury.
-
Page 14: Cleaning The Spark Arrest- Ing Screen
harmful emissions. Always clean after every 5 hours of operation. S Clean the cover and the area around it to keep dirt and sawdust from falling into the carburetor chamber when the cover is re- moved. S Remove the parts as illustrated below. S Wash the filter in soap and water. -
Page 15: Troubleshooting Table
S Replace with Champion RCJ--7Y spark plug and tighten securely with a 3/4 inch socket wrench. Spark plug gap should be 0.025 inches. S Reinstall the spark plug boot. S Reinstall the cylinder cover and 3 screws. Tighten securely. Cylinder Screws Cover Spark... -
Page 16: Need Assistance
NEED ASSISTANCE? NEED ASSISTANCE? Call 1---800---554---6723. NEED SERVICE PART? Contact your dealer or place of purchase. LIMITED WARRANTY ELECTROLUX HOME PRODUCTS NORTH AMERICA, Division of WCI Out- door Products, Inc., warrants to the original purchaser that each new Patriot brand gas- oline chain saw is free from defects in materi- al and workmanship and agrees to repair or replace under this warranty any defective... - Page 17 WEED EATER authorized repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should con- tact your nearest authorized service center call POULAN/WEED...
