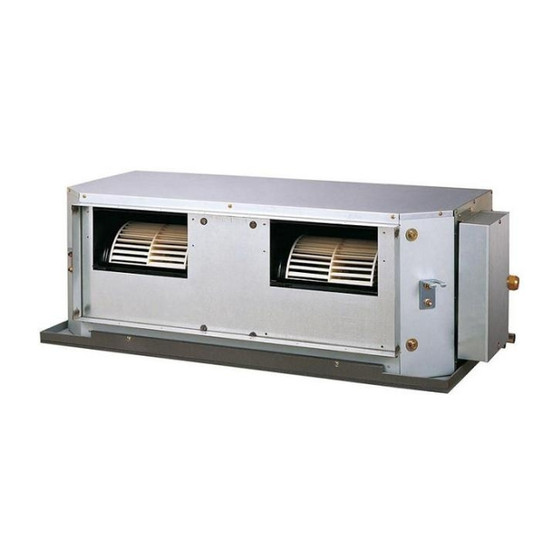

    SPLIT TYPE AIR CONDITIONER DUCT type (50Hz) Models Indoor unit Outdoor unit RD-60FA ROD-60FA RD-60UA ROD-60UA CONTENTS SPECIFICATIONS OUTLINE AND DIMENSIONS REFRIGERANT SYSTEM DIAGRAM CIRCUIT DIAGRAM PCB CIRCUIT DIAGRAM ERROR CONTENTS DISASSEMBLY ILLUSTRATION PARTS LIST STANDARD ACCESSORIES...

  • Page 2: Specifications

    SPECIFICATIONS TYPE Cooling Colling & Heating INDOOR UNIT RD-60FA RD-60UA OUTDOOR UNIT ROD-60FA ROD-60UA (kW) COOLING CAPACITY 16.5 16.5 (kW) HEATING CAPACITY ----- 19.5 ELECTRICAL SPECIFICATIONS POWER SUPPLY FREQUENCY (Hz) COOLIING 10.2 RUNNING CURRENT HEATING ----- COOLIING 5.93 6.06 INPUT...

  • Page 3: Outline And Dimensions

    OUTLINE AND DIMENSIONS (Unit : mm) INDOOR UNIT Models : RD-60FA RD-60UA 1,080 1,000 1,050 2005.03.24...
  • Page 4 (Unit : mm) OUTDOOR UNIT Models : ROD-60FA ROD-60UA Air Flow 2005.03.24...

  • Page 5: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Models : RD-60FA / ROD-60FA OUTDOOR UNIT INDOOR UNIT Refrigerant pipe PRESSURE 19.05mm (3/4") CHECK VALVE HIGH PRESSURE SWITCH Charging Valve ACCUMULATOR CONDENSER EVAPORATOR STRAINER COMPRESSOR CAPPILLARY TUBE STRAINER Refrigerant pipe 9.53mm (3/8") Charging Valve Models : RD-60UA / ROD-60UA...

  • Page 6: Circuit Diagram

    CIRCUIT DIAGRAM Model : RD-60FA TRANSFORMER GRAY GRAY GRAY GRAY GRAY GRAY GRAY CN103 CN104 GRAY GRAY POWER PCB GRAY CN117 CN109 GRAY GRAY GRAY GRAY CN101 CN111 MAIN PCB CN14 CN15 BLACK BLACK WHITE WHITE TERMINAL TERMINAL 1 2 3...
  • Page 7 Model : RD-60UA TRANSFORMER GRAY GRAY GRAY GRAY GRAY GRAY CN103 CN104 GRAY GRAY POWER PCB GRAY CN117 CN109 GRAY GRAY GRAY GRAY GRAY GRAY GRAY CN101 W105 MAIN PCB CN14 CN15 BLACK BLACK WHITE WHITE TERMINAL TERMINAL 1 2 3 1 2 3 BLACK MOTOR...

  • Page 8: Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM CONTROLLER PCB ASSEMBLY ( MAIN PCB ) Model : RD-60FA EZ-00304WSE-C CN104 CN105 B2B-XARK-1-A R15 - R17 5V 12V 14V B04B-PASK-1 DC SUPPLY 10K <1/10W> x 3 10K <1/10W> x 3 WHITE JM103 UL1430 AWG22 UL1430 AWG26...
  • Page 9 Model : RD-60UA CONTROLLER PCB ASSEMBLY ( MAIN PCB ) EX-003SHSE-C TRANS SEC CN104 CN105 R15 - R17 B2B-XARK-1-A 5V 12V 14V B04B-PASK-1 DC SUPPLY 10K <1/10W> x 3 WHITE JM103 UL1430 AWG22 UL1430 AWG26 GRAY R18 - R20 I C 1 UL1430 AWG22 UL1430 AWG26 GRAY...

  • Page 10: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM Model : ROD-60UA CN12 B6B-XASK-1-A CONTROLLER PCB ASSEMBLY WHITE CN12-1 UL1430 AWG24 K04DF-0400HUE-C1 CN12-2 UL1430 AWG24 BROWN VDD1 VDD0 I C4-7 uLN2003 CN12-3 UL1430 AWG24 D3SB60 BLUE AVREF E.E.V. ELECTRIC EXPANSION VALVE I C4-6 uLN2003 CN12-4 UL1430 AWG24 ORANGE R3 62K...

  • Page 11: Error Contents

    ER R OR D ISPLA Y CAUTION Error code Error contents Discharge pipe temperature sensor or compressor Supply power to the crankcase heater for at least 12 temperature sensor open hours before the start of operation in winter. Discharge pipe temperature sensor or compressor temperature sensor short-circuited (1) Stop the air conditioner operation.

  • Page 12: Disassembly Illustration

    DISASSEMBLY ILLUSTRATION INDOOR UNIT Ref. Description Parts number Drain Pan Assy 9372579015 Sirocco Fan 9372059012 Casing B 9372058015 Casing A 9372057018 Fan Motor 9601688013 Kit (Panel Front Sub Assy) 9372637012 Drain Pan Sub Assy 9372582015 Kit (Panel Right Sub Assy) 9372916018 Plate Top Sub Assy 9372576014 Bracket Motor Assy...
  • Page 13 INDOOR UNIT Ref. Description Parts number Capacitor, Plastic 9900269111 Capacitor Clamp 9308114006 Power Supply PCB Assy (FA) 9705668041 Power Supply PCB Assy (UA) 9705668034 Controller PCB Assy (FA) 9705246027 Controller PCB Assy (UA) 9705246010 Control Box Assy 9372536001 Transformer (Power) 9704129017 Terminal 3P 9306489045...
  • Page 14 Models : ROD-60FA ROD-60UA 2005.03.24...
  • Page 15 Models : ROD-60FA ROD-60UA 2005.03.24...
  • Page 16 Model : ROD-60FA 2005.03.24...
  • Page 17 Model : ROD-60UA 2005.03.24...
  • Page 18 Model : ROD-60FA 2005.12.08...
  • Page 19 Model : ROD-60UA 2005.03.24...

  • Page 20: Parts List

    Outdoor unit Parts No. Parts No. Ref. Ref. Description Description ROD-60FA ROD-60UA Top Panel Sub Assy 9374417018 Top Panel Sub Assy 9374417018 Front Panel X 9374094028 Front Panel X 9374094028 Fan Guard 9374330010 Fan Guard 9374330010 Grip Side 9374173013 Grip Side 9374173013 Service Panel Sub Assy 9374415014...

  • Page 21: Standard Accessories

    STANDARD ACCESSORIES The following installation parts are furnished. Use them as required. OUTDOOR UNIT ACCESSORIES INDOOR UNIT ACCESSORIES Name and Shape Q’ty Application Name and Shape Q’ty Application For suspending the indoor Special nut A Drain pipe unit from ceiling (large flange) For outdoor unit drain piping work (May not be...
  • Page 22 0503G2775...

This manual is also suitable for:

Rd-60uaRod-60faRod-60ua
