Ares AZSQ3300 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

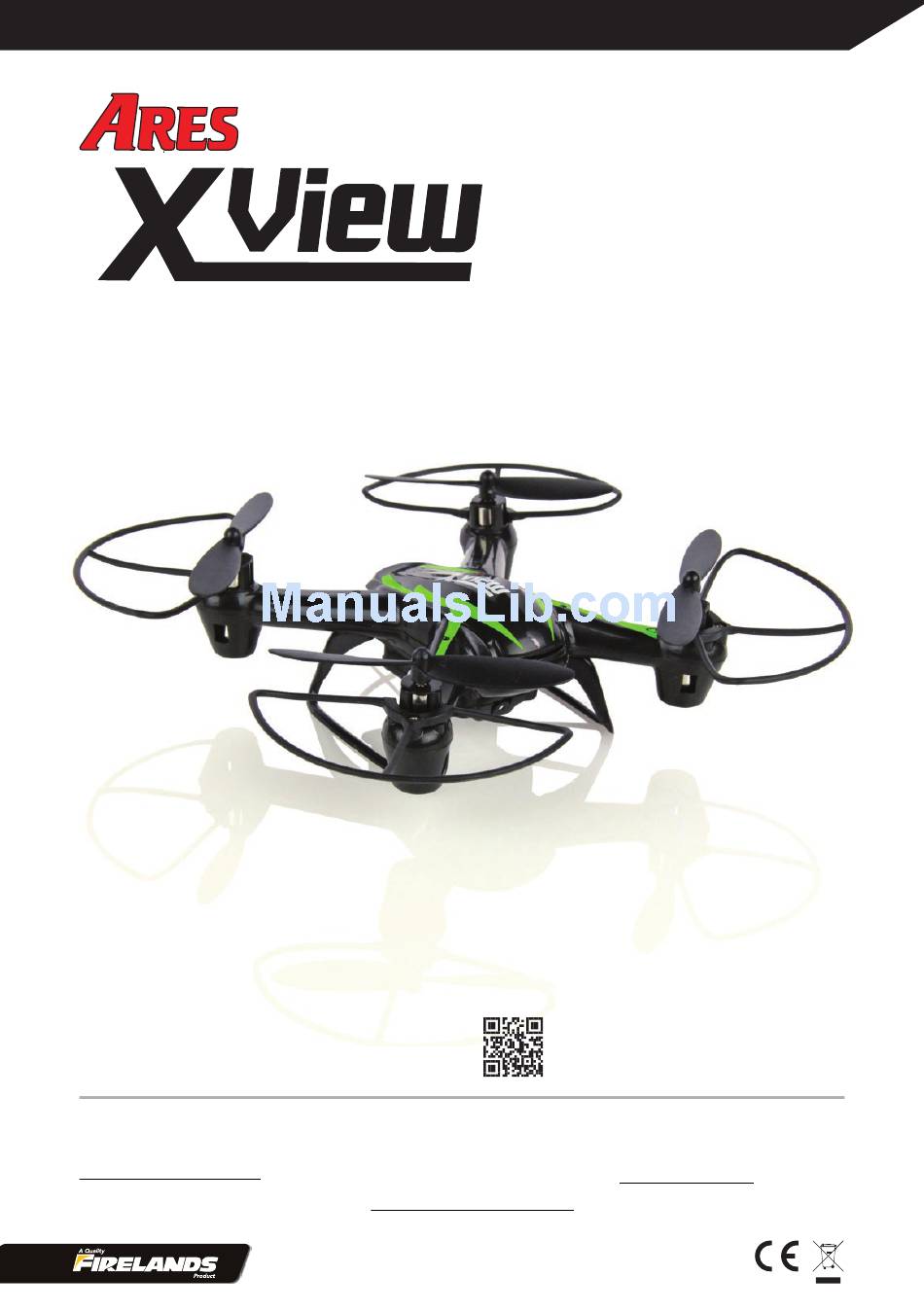

Owner's Manual
Product specifications are subject to change
without notice. Due to ongoing development, the
actual product may vary from images shown.
This product contains chemicals known to the State
of California to cause cancer, birth defects and
other reproductive harm.
This product is not a toy! (14+) Recommended for
ages 14 and up. Adult supervision required for ages
under 18 years old. Contains small parts, keep out
of reach of children 3 years of age and younger.
Distributed in the US by:
Firelands Customer Service/Product Support
1133 Libra Drive, Lincoln, NE 68512
www.firelandsgroup.com
1-800-205-6773
customerservice@firelandsgroup.com
AZSQ3300
AZSQ3300M1
Distributed in Australia by:
Model Engines (Aust.) Pty. Ltd.,
P.O. BOX 828
NOBLE PARK 3174
Australia
www.modelengines.com.au
Ph (03) 8793 5555
MADE IN CHINA
XView Combo
XView Combo (Mode 1)
Ensure you have the latest version of
the manual by visiting our website.
Distributed in the UK by:
J Perkins Distribution Ltd,
Lenham, Kent, UK ME17 2DL.
www.jperkins.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZSQ3300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ares AZSQ3300

Summary of Contents for Ares AZSQ3300

  • Page 1 Owner’s Manual Product specifications are subject to change AZSQ3300 XView Combo without notice. Due to ongoing development, the AZSQ3300M1 XView Combo (Mode 1) actual product may vary from images shown. This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
  • Page 2 Specification Length: ......137.0mm Width: ......137.0mm Height: ......38.0mm Weight: ......42.0g Flight battery: ....1S 3.7V 300mAh LiPo Transmitter: ....2.4GHz with digital trim Charger: ......1S USB...

  • Page 3: Table Of Contents

    360° Flip Mode ................ 14 Intelligent Orientation Mode ............ 14 Flying the XView in FPV Mode..........16 Controlling the XView with your Smartphone ......16 Using the Optional Ares VR Headset ........17 Gyro Recalibration ..............17 Propeller Identification .............18 Replacement Parts ..............18 Troubleshooting Guide .............19...

  • Page 4: Introduction

    Until now, First Person View (FPV) flying has been an experience we’ve had to pay a high price to enjoy. Not anymore. Featuring a high-quality WiFi camera that relays live-view video footage to your own smartphone, the Ares XView allows you to become fully immersed in the fascinating world of Virtual Reality (VR) flight.

  • Page 5: Safety Precautions

    Safety Precautions Failure to use this product in the intended manner as described in the following instructions can result in damage and / or personal injury. A Radio Controlled (RC) airplane is not a toy! If misused it can cause serious bodily harm and damage to property.

  • Page 6: Lipo Battery Warnings

    LiPo Battery Warnings IMPORTANT NOTE: Lithium Polymer batteries are significantly more volatile than the alkaline, NiCd or NiMH batteries also used in RC applications. All instructions and warnings must be followed exactly to prevent property damage and / or personal injury as the mishandling of LiPo batteries can result in fire.

  • Page 7: Contents

    Contents • 1 x XView FPV quadcopter • 1 x 1S 3.7V 300mAh LiPo • 1 x 2.4GHz transmitter • 1 x USB charger • 1 x Spare propeller set • 1 x Smartphone mount for transmitter Required to Complete •...

  • Page 8: Quadcopter Details

    Quadcopter Details Propeller A2 clockwise rotation Propeller B2 Front anti-clockwise rotation Camera Landing Skid Battery Hatch Propeller B2 Propeller A2 anti-clockwise rotation clockwise rotation Rear...

  • Page 9: Transmitter Details (Mode 1 & 2)

    Transmitter Details (Mode 2) 360°Flip button Flight Mode button LED Power Light Elevator/Aileron Throttle/ stick (and IOM - Rudder stick press) Left/Right Forward / Rudder trim Backward Elevator trim Power ON / Left/Right OFF switch Aileron trim Transmitter Details (Mode 1) 360°Flip button Flight Mode button...

  • Page 10: Charging The Supplied Lipo Battery

    Charging The Supplied LiPo Battery Locate the USB style charger and connect it to the LiPo battery. Note the orientation of the white two-pin connector and align the slots to ensure correct polarity. Plug the USB charger into a suitable USB port noting that the LED on the charger will glow solid red when connected.

  • Page 11: Flying Your Xview

    3. When the battery is connected the LED lights will enter a fast flashing condition. Place the XView on a level surface to enable the on-board gyro to be properly calibrated. 4. With the throttle stick in its lowest position, switch the transmitter ON. The quad’s LEDs will now enter a slow flashing condition and the transmitter’s light will also flash indicating that the XView and the transmitter are paired.
  • Page 12 1. Ascend and descend. Gently push the throttle stick forward to ascend and backward to descend. (Mode 2 Transmitter Shown) 2. Yaw. With the XView in a stable hover, gently move the rudder stick to the left to yaw (rotate) the quad in an anticlockwise direction.

  • Page 13: Trimming

    Note: With a charged battery the XView will fly for approx 4 minutes. At the end of your flight low battery power will be indicated when the XView’s LED lights begin to flash. When this happens you should land within 30 seconds and recharge the LiPo.

  • Page 14: Flight Modes

    Note: The trim buttons offer 32 steps, each step indicated by a short beep and trim center indicated by a prolonged beep. Flight (Agility) Mode Flight mode allows you to tailor the performance of your XView to suit your experience. Three settings are available: Low - for beginners.
  • Page 15 elevator stick forward the quad will fly forward, if you pull the stick back it will fly back. Left aileron stick will move it to the left and right aileron stick will move it to the right. However, if you now yaw the quadcopter 45° to the left and repeat the process, forward elevator stick will still make it fly away from you, whist pulling back on the elevator stick will bring it back towards you.

  • Page 16: Flying The Xview In Fpv Mode

    Flying Your XView in FPV Mode To use your XView in FPV mode you will need the free Apple or Android compatible WiFi_UFO App from the App Store or Google Play. Download and install the App to your smartphone, then follow these steps to get the system up and running: 1.

  • Page 17: Using The Optional Ares Vr Headset

    Using the Optional Ares VR Headset For a complete, immersive, FPV experience you can clip your smartphone into the optional Ares VR FPV Headset (AZSQ3312). When using the headset note that you’ll need to select the Split Screen icon in the ‘Settings’ menu of the WiFi_UFO App.

  • Page 18: Propeller Identification

    Propeller Identification If at any point you damage one of your Recon’s propellers it’s imperative that the replacement prop is matched with the correct motor, as shown in the Quadcopter Details section on page 8 of this instruction manual. The identification numbers of the propellers can be found on the top side near the center (root section) of the blade.

  • Page 19: Troubleshooting Guide

    Troubleshooting Guide Problem Diagnosis Cure The quadcopter lights continue 1. The quad has failed to pair 1. See the section headed to flash when the transmitter is with the transmitter. ‘Preparation For Flight’ and turned on and the quad will not follow steps 2 - 5.

  • Page 20: Warranty, Support & Service

    European directives. This product’s design fulfils the protective aims of the European Community relating to the safe operation of this equipment. For a copy of the Declaration of Conformity, please visit: www.ares-rc.com/support Disposal Electrical equipment marked with the crossed out wheelie bin symbol must not be disposed of in household waste, but must be taken to a specialist disposal or recycling system.
  • Page 21 Warranty, support and service (USA) 30-Day Limited Warranty Term Period: We warranty that the Product(s) purchased (the ‘Product’) will be free from defects in materials and workmanship when the product is new (before being used) for the limited warranty term period, 30 days, from the date of purchase by the Purchaser.
  • Page 22 Warranty, Support & Service AU 30 Day Warranty Model Engines (Aust.) Pty. Ltd. warrants this product to be free from defects in materials or workmanship for 30 days from the date of purchase and will repair, replace or refund the purchase should the product prove to be defective.
  • Page 23 goods fail to be of acceptable quality and the failure does not amount to a major failure. Model Engines (Aust.) Pty. Ltd., P.O. BOX 828 NOBLE PARK 3174 Australia www.modelengines.com.au Ph (03) 8793 5555 warranties@modelengines.com.au This warranty information relates to goods supplied on a wholesale basis by Model Engines (Aust.) Pty.
  • Page 24 Ares-RC.com REV- 001...
