Summary of Contents for Parasound Zamp v.2

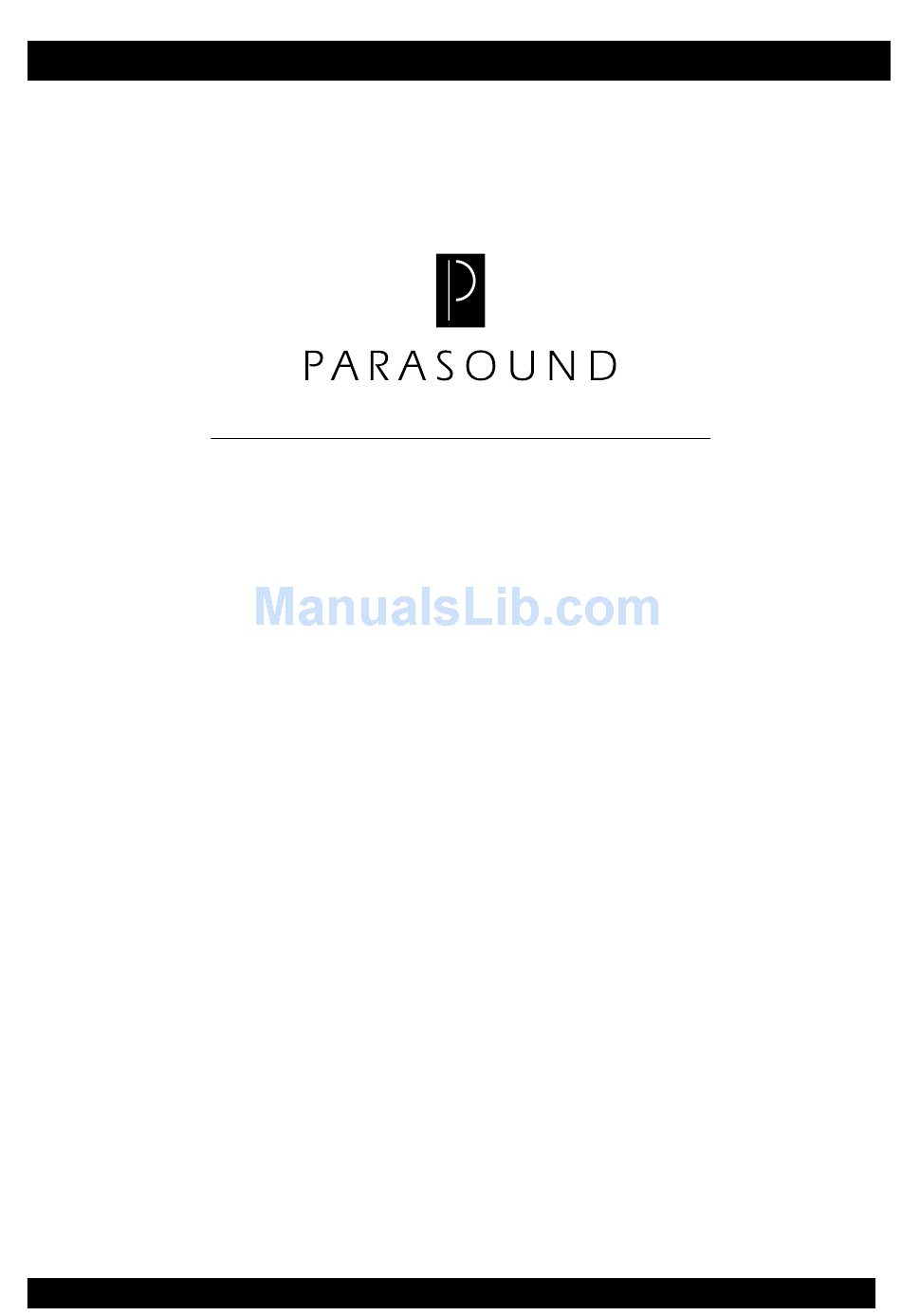

- Page 1 Zamp v.2 Zone Amplifier w w w.parasound.com...
-
Page 2: Table Of Contents
Important Safety Instructions ... 3 Zamp v.2 Front and Rear Panel Drawings ... 4 Introduction ... 5 Installation and Rack Mounting ... 5 Ventilation Requirements ... 5 Connecting the Zamp v.2 ... 6 Speaker Connections... 6 Bridged Mono Operation ... 6 Automatic Turn On Options ... -
Page 3: Important Safety Instructions
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of “dangerous voltage” inside the product that may constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product. -
Page 4: Zamp V.2 Front And Rear Panel Drawings
OPEN SHOCK ELECTRIC RISK CAUTION... -
Page 5: Introduction
You should never install the Zamp v.2 in an unventilated equipment cabinet with a door or panel because hot air cannot exhaust adequately. 3) Do not place the Zamp v.2 on carpeting or any other material that could obstruct airflow through the ventilation holes in the bottom of its chassis. -
Page 6: Connecting The Zamp V.2
2 load in mono. A 2 load may cause the Zamp v.2 to overheat and you should avoid it. Stereo - Mono Switch The unit should be turned off before moving this switch. Set the Stereo-Mono switch to its Mono (left) position for mono operation. -
Page 7: Automatic Turn On Options
Auto On Select Switch In the right position of the Auto On Switch, the Zamp v.2 is triggered on and off with an external +9 V to + 12 V voltage. When the external voltage ceases the Zamp v.2 will turn off immediately. -
Page 8: Ac Power Connection And Ac Grounding
The Auto On Audio Sensitivity Control adjusts the audio signal level threshold to turn on the Zamp v.2. It adjusts the audio trigger sensitivity from 30 mV (fully clockwise) to 2 V (fully counterclockwise). The center position corresponds to 50 mV, which is suitable in most cases. -
Page 9: Maintaining Your Parasound Amplifier
In Case of Trouble If you suspect a problem with your Zamp v.2, first turn the unit off and check all your connections. Another component or even a defective hookup cable may be causing the trouble. - Page 10 Repairs for shipping damages because of mis-packing are your sole responsibility. Finally Thanks for taking the time to read through these instructions and getting to know your Zamp v.2 a little better. We sincerely hope you enjoy your new Zamp v.2 for many years to come! The Parasound Staff...
-
Page 11: Voltage Selection Switch For The Zamp V.2
Voltage Selection Switch for the Zamp v.2 The Zamp v.2 can be easily converted for 110-120 Vac or 220-240 V operation by using the voltage selector switch located on the bottom of the unit. For 110-120 Vac operation. Slide the switch into the position until the section of switch labeled "115"... -
Page 12: Zamp V.2 Specifications
Parasound Zamp v.2 Specifications Continuous Power Output - Stereo 30 watts RMS x 2, 20 Hz-20 kHz, 8 , both channels driven 45 watts RMS x 2, 20 Hz-20 kHz, 4 both channels driven Continuous Power Output - Mono 60 watts RMS, 20 Hz-20 kHz, 8... - Page 13 Parasound Products, Inc. 950 Battery Street, San Francisco, CA 94111 415-397-7100 / FAX 415-397-0144 www.parasound.com 2001 Parasound Products, Inc. Rev 2.0 ©...
