19. Wall or Ceiling Mounting — Mount the product to a wall or ceiling only as recommended. 20. Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat. www.parasound.com...

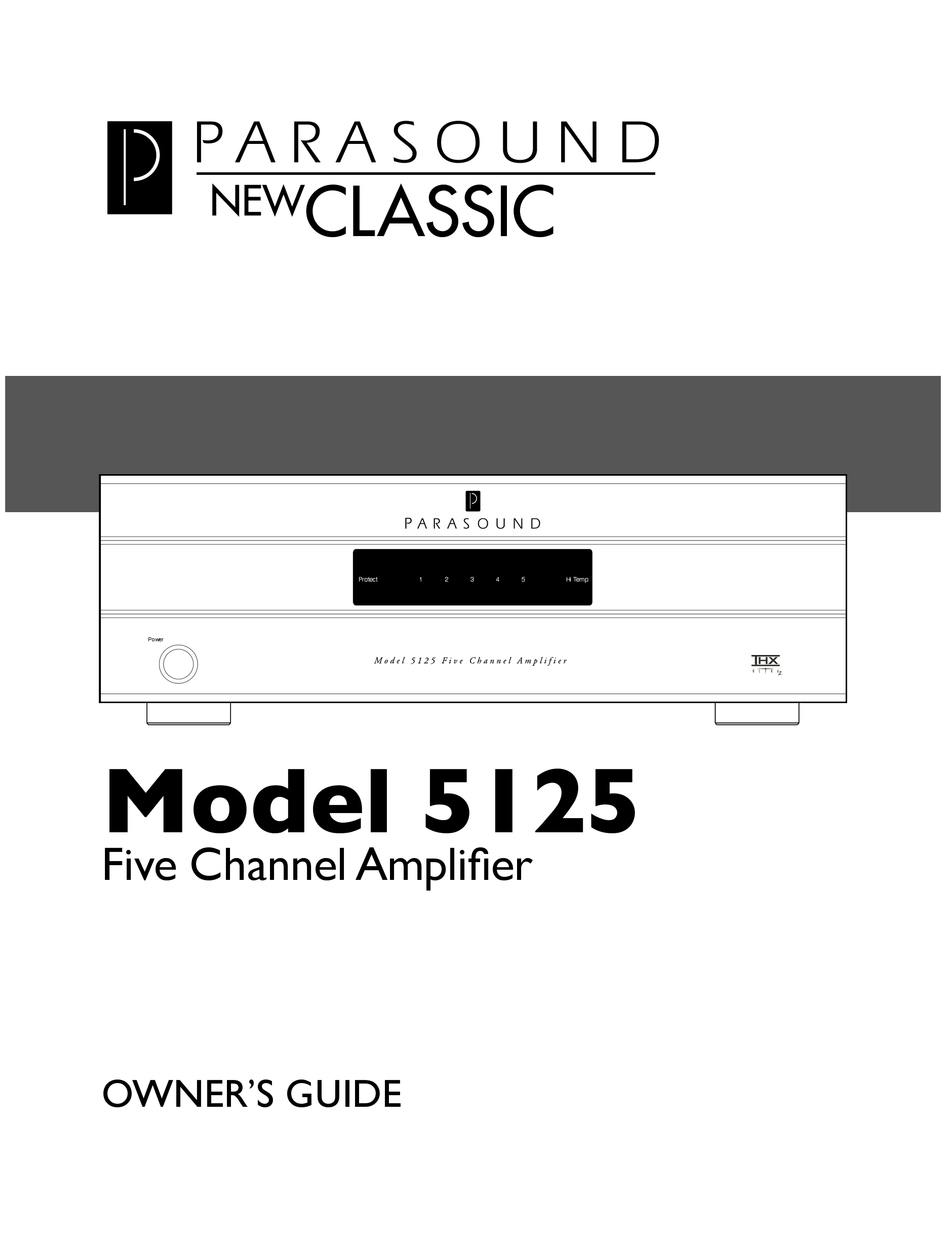

Congratulations and thank you for your purchase of this precision Parasound audio component. The Parasound Model 5125 is the latest generation of popular and proven audio power amplifi- ers dating back to 1981. It has been designed for a wide variety of applications, establishing a new standard for audio performance, user-friendliness and utility in custom installations.
The Model 5125 occupies three rack spaces in a standard 19” equipment rack. For rack mounting, you must use the Parasound RMK33 rack mounting kit (purchased separate- ly). We recommend that you use the 8 insulated shoulder washers with the four mounting bolts which are included with the RMK33.
Page 6
ÚÔÑÚ ÞÑŠ ÔR ŒT Š Š ÔŒÜÕ T Š Û ÑŠ Ó ŒT Š ÜÚT RÛ Connection Precautions Disconnect the AC cord before making or changing any input, trigger, or speaker wire connec- tions. Make sure there is no strain or tension on any wires that could cause them to pull loose. Audio In Jacks Connect the cables from your preamplifier or multi-room controller’s output jacks to the Model 5125’s channel 1-5 audio Input jacks.
5125. Use the two channel amplifier for the surround back channels. For example, if your two channel amplifier is the Parasound Model 275 rated at 75 watts/ channel, use the 275 for the surround back channels and your 5125 for the other five channels.
Page 8
Some components, including most Parasound Surround Controllers, may use a 3.5mm mini jack for trigger output, so we have also included a 3.5mm plug - 2.5mm adapter for your convenience.
Page 9
REAR PANEL CONNECTIONS AND CONTROLS continued 12V Out Jack The Trigger Out jack lets you loop or “daisy-chain” the incoming trigger voltage to an additional Model 5125 or other component. Note: The Model 5125 trigger circuit draws a negligible 15 mA from the controller. The total load on your controller’s trigger output(s) is the sum of the trigger current drawn by each of the com- ponents you’ve looped together.
FRONT PANEL CONTROLS AND INDICATORS Power Power Button Press the Power button once to turn the Model 5125 on, press it again to turn it off. The Power button is inoperative when the Auto Turn On switch is set to Audio or 12V. Protect Indicator The Protect indicator will illuminate red if the Model 5125 experiences an external fault condi- tion and the unit will stop playing.
PROBLEMS AND REMEDIES Maintaining Your Model 5125 Your Parasound Model 5125 power amplifier requires no periodic maintenance and functions at its best when providing you with many hours of enjoyment. It has no user-serviceable parts inside. To avoid the risk of electric shock, do not remove its top cover. The exterior can be cleaned with a soft cloth pre-moistened only with a few drops of water or glass cleaner.
IF YOU REQUIRE ASSISTANCE Call your Parasound dealer first. If the dealer can’t help you with your problem we encourage you to call Parasound’s Technical Service Department, toll-free at 1-866-770-8324, Monday - Friday, 8am - 4pm Pacific time. We can suggest other diagnostic tests you can easily per- form.
Page 16
We invite you to visit www.parasound.com for the most up-to-date information on your unit and to find out about other Parasound products. Learn why Parasound has been a quality and value favorite of magazine reviewers, sound professionals and listeners like you since we were founded in 1981.
