External View - Kenwood R-A100 Service Manual

Indicator
(B12-0311-04)
ON/STANDBY
INPUT TAPE 2
(MONITOR)
PHONES TIMER
CLOCK MODE SET
Phone jack
(E11-0282-05)
Metallic cabinet
(A01-3457-01)
Lock terminal board
(E70-0052-05)
ANTENNA
R
FRONT
Lock terminal board
(E70-0053-05)

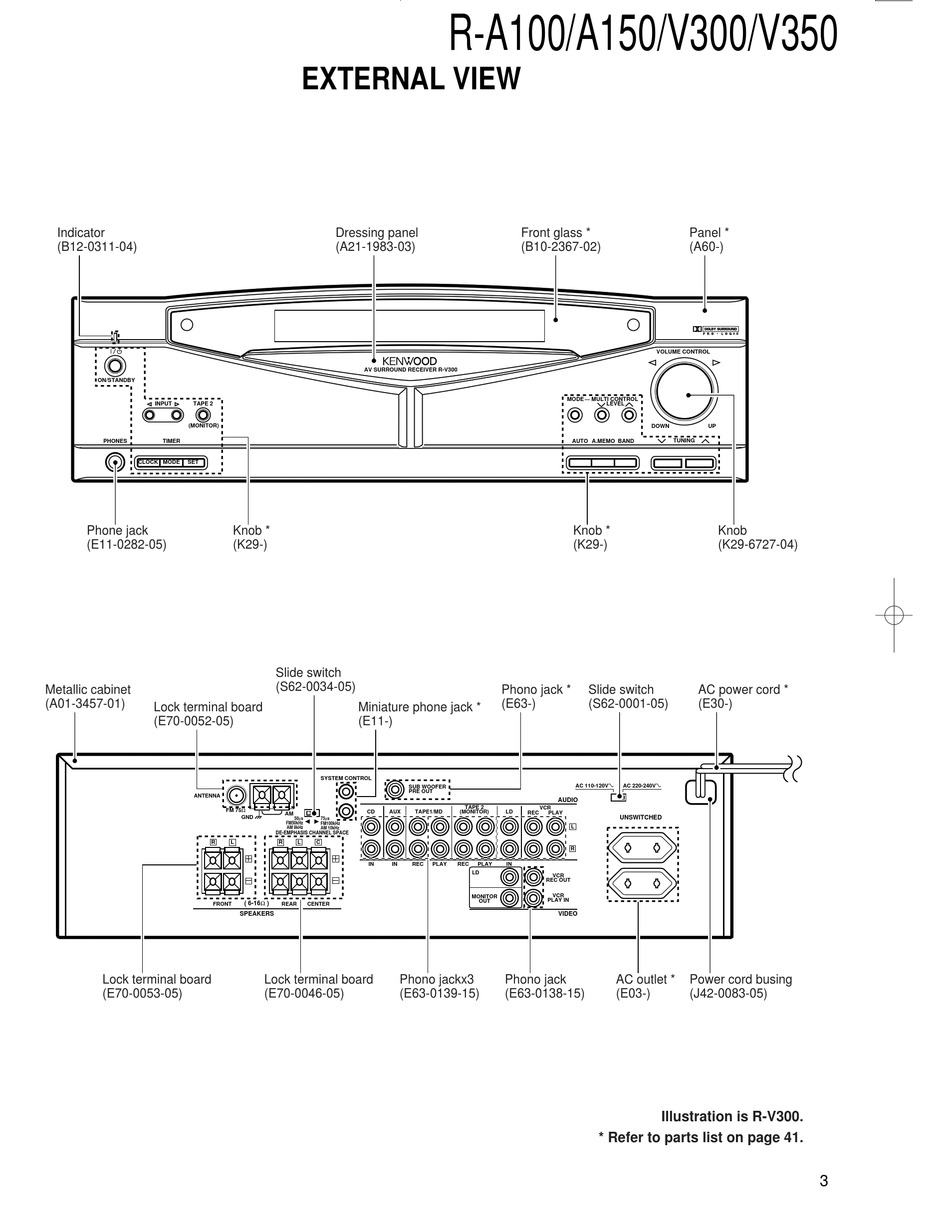

EXTERNAL VIEW

Dressing panel
(A21-1983-03)
AV SURROUND RECEIVER R-V300
Knob *
(K29-)
Slide switch
(S62-0034-05)
Miniature phone jack *
(E11-)
SYSTEM CONTROL
FM 75Ω
CD AUX
AM
GND
50µs 75µs
FM50kHz
FM100kHz
AM 9kHz AM 10kHz
DE-EMPHASIS CHANNEL SPACE
L R L C
+ +
IN IN
− −
( 6-16Ω )
REAR CENTER
SPEAKERS
Lock terminal board Phono jackx3
(E70-0046-05) (E63-0139-15)
R-A100/A150/V300/V350
Front glass *
(B10-2367-02)
MODE
AUTO A.MEMO BAND
Knob *
(K29-)
Phono jack *
(E63-)
AC 110-120VÓ
SUB WOOFER
PRE OUT
AUDIO
TAPE 2
VCR
TAPE1/MD (MONITOR) LD
REC PLAY
L
R
REC PLAY REC PLAY IN
LD
VCR
REC OUT
VCR
MONITOR
PLAY IN
OUT
VIDEO
Phono jack
(E63-0138-15)
Panel *
(A60-)
VOLUME CONTROL
MULTI CONTROL
LEVEL
DOWN UP
TUNING
Knob
(K29-6727-04)
Slide switch AC power cord *
(S62-0001-05) (E30-)
AC 220-240VÓ
UNSWITCHED
AC outlet * Power cord busing
(E03-) (J42-0083-05)
Illustration is R-V300.
* Refer to parts list on page 41.
3
