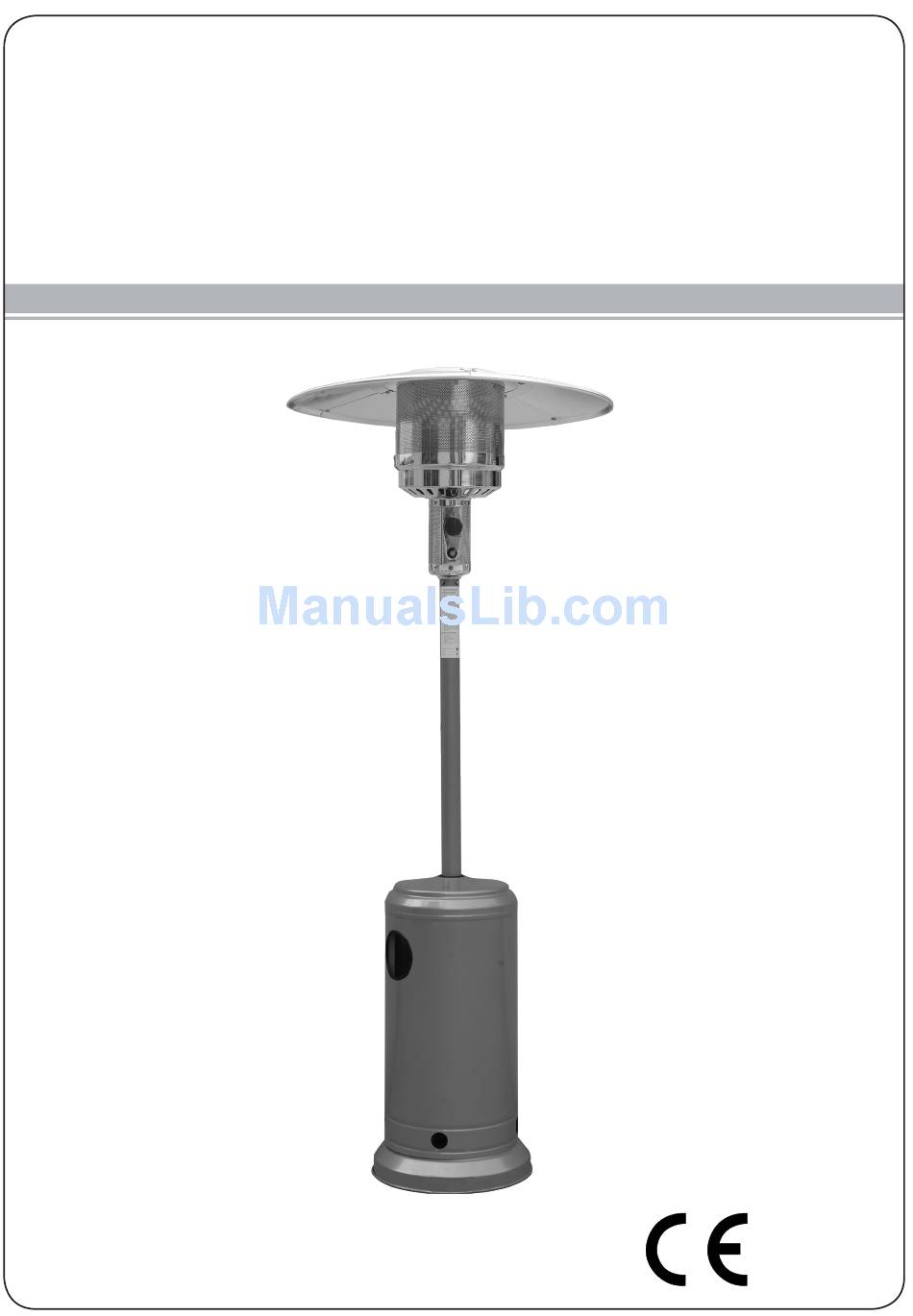

- Page 1 PATIO HEATER INSTRUCTION MANUAL Keep the instructions for future reference 0063...
- Page 2 WARNlNG SAFETY RULES PLEASE READ THE FOLLOWING SAFETY RULES PRlOR TO OPERATION OF THE HEATER FOR YOUR SAFETY If you smell gas: 1．Shut off gas to the appliance. 2．Extinguish any open flame. 3． If odor continues, immediately call your gas supplier or your fire Department.
- Page 3 warning Read the instructions before installation and use. -This appliance must be installed and the gas cylinder stored in accordance with the regulations in force; -Do not obstruct the ventilation holes of the cylinder housing; -Do not move the appliance when in operation; -Shut off the valve at the gas cylinder or the regulator before moving the appliance;...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution ………………………………………………………. Heater Stand and Location ………………………………… Gas Requirements ………………………………………….. Leakage Test ………………………………………………… Operation and Storage ……………………………………... Cleaning and Care ………………………………………….. Parts and Specifications ..………………………………….. Assembly Parts and Procedures ………………………….. Problems Check List ………………………………………... -
Page 5: Caution
CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION. Do not use the patio heater for indoors, as it may cause personal injury or property damage. This outdoor heater is not intended to be installed on recreational vehicles and/or boats. Installation and repair should be done by a qualified service person. -
Page 6: Heater Stand And Location
HEATER STAND AND LOCATION The heater is primarily for outdoor use only. Always ensure that C E ILIN G adequate fresh air ventilation is provided. 100 cm Always maintain proper clearance to combustible materials, i.e. top 100 cm and sides 100 cm minimum. Heater must be placed on level firm ground. -
Page 7: Operation And Storage
maximum Variable control knob Igniter lgniter... -
Page 8: Cleaning And Care
CLEANING AND CARE • Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive. • Remove debris from the burner to keep it clean and safe for use. • Cover the burner unit with the optional protective cover when the heater is not in use. PARTS AND SPECIFICATIONS 813 mm Reflector... - Page 9 A. Construction and characteristics Transportable terrace/garden heater with tank housing Casing in steel with powder-coating or stainless steel Gas hose connections with metal clamp (screw caps for Germany) Heat emission from reflector B. Specifications Use propane or butane gas only Max.
-
Page 10: Assembly Parts And Procedures
ASSEMBLY PARTS Tools needed: Open end wrench 10 & 13 mm Adjustable opening wrench (2) 20 cm long Slip joint pliers 23 cm long Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test Parts supplied: Stand with LPG cylinder housing and 3 post brackets. 9 Cup Nuts (M6 mm), 9 Small Screws (M6 x 10 mm), 9 Small Flat Washers (Ø... - Page 11 ASSEMBLY PROCEDURES STEP 1 STEP 1 1-1. Put the 3 pcs post brackets on each position on the base as shown in the picture. 1-2. Use 3 Medium Bolts(M8x15) to join the post brackets and stand. Post bracket Bolt Stand STEP 2 STEP 2 2-1.
- Page 12 STEP 4 STEP 4 4-1. Remove the 4 bolts from the burner. 4-2. Put the gas hose through into the post. Bolt 4-3. Fix the burner unit to the post by the 4 bolts. STEP 5 STEP 5 5-1. Check whether the connection of vertical post and burner are Reflector Spacer assembled according to instructions, and all bolts and nuts are tightened.
-
Page 13: Problems Check List
STEP 7 STEP 7 7-1. Bring up the tank housing and rest it on the post plate. 7-2. Connect the regulator to the gas tank and tighten it with adjustable wrench. 7-3. Connect the end thread of inlet gas hose to the regulator. 7-4.
