Hotwire

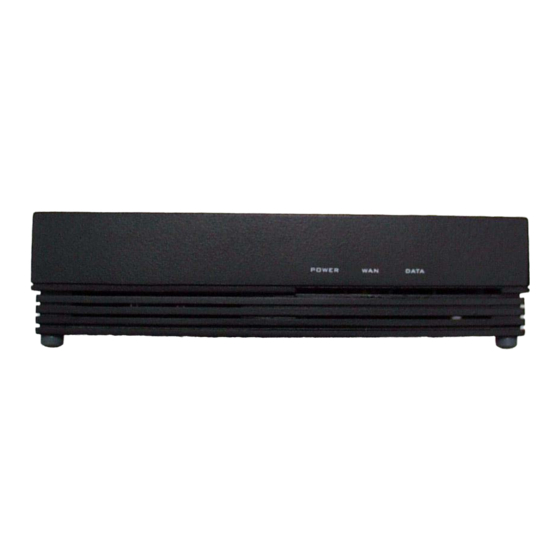

6205 ADSL Modem
Installation Instructions
Document Number 6205-A2-GZ40-10
September 2004
Introduction
Congratulations on becoming the owner of a Hotwire
the Internet via the modem's state-of-the-art ADSL connection.
This document will show you how to set up the Hotwire 6205 ADSL Modem, and how to customize its
configuration to get the most out of this product.
Features
•
The Hotwire 6205 ADSL Modem offers up to 8 Mbps downstream and 800 kbps upstream.
•
A "Plug-N-Play" USB port provides Internet connectivity to your PC.
•
The Hotwire 6205 ADSL Modem supports Windows 98FE/SE, Windows 2000, Windows Millennium,
and Windows XP.
System Requirements
In order to use the Hotwire 6205 ADSL Modem for Internet access, you must have the following:
•
ADSL service subscription from your Internet Service Provider (ISP).
•
One computer containing a free USB (Universal Serial Bus) port.
•
USB driver provided in this package
Caution:
Do not open the housing!
Use only the cables provided with this device and do not perform any modifications on them
Review the Important Safety Instructions on page 13
6205-A2-GZ40-10
®
ADSL USB Modem. You will now be able to surf
September 2004
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paradyne Hotwire 6205
Summary of Contents for Paradyne Hotwire 6205
-
Page 1: Installation Instructions
Congratulations on becoming the owner of a Hotwire the Internet via the modem’s state-of-the-art ADSL connection. This document will show you how to set up the Hotwire 6205 ADSL Modem, and how to customize its configuration to get the most out of this product. -
Page 2: Package Contents
Package Contents Your Hotwire 6205 ADSL Modem package includes: • Hotwire 6205 unit • RJ11 ADSL cable • USB Cable • CD-ROM September 2004 6205-A2-GZ40-10... -
Page 3: Front Panel
RJ11 outlet, for ADSL line connection. 6205-A2-GZ40-10 Description Your Modem is powered ON Your Modem is powered OFF Up — Connected successfully Handshaking — The modem is trying to connect Down — Disconnected Data transfer over ADSL line September 2004... -
Page 4: Connecting The Cables
1. Unplug the phone cable from the phone jack of your phone and plug it into the “WALL” jack of the Y- Line Filter. 2. Plug the ADSL cable into the “ADSL” jack of the Y-Line Filter and the Modem. 3. Plug another phone cable into the “PHONE” jack of the Y-Line Filter and your phone. -
Page 5: Usb Driver Installation
1. Insert the provided CD. The CD should automatically start the driver installation. If autorun is disabled, double-click “Setup.exe” in the root directory of the CD. 2. Click on OK when the Information pop-up window appears. 3. Click on Next when the modem setup windows appears. 6205-A2-GZ40-10 September 2004... - Page 6 4. Choose the proper driver type: MPoA Bridge/Routed or PPPoA/PPPoE. Then click Next. September 2004 6205-A2-GZ40-10...
- Page 7 6205-A2-GZ40-10 September 2004...
- Page 8 Click on OK and plug in your USB modem. 7. After you attach the USB modem to your computer, there will be a small triangle icon on the right-bottom taskbar of your screen. If there is no ADSL connection, it will be red. If the ADSL connection is established, it will be green.
- Page 9 8. If you install PPPoA/PPPoE, there will be a dial-up icon in your desktop to connect your ISP. Please contact your ISP to get the correct user name and password for Internet access. 6205-A2-GZ40-10 September 2004...
-
Page 10: Usb Driver Uninstallation
USB Driver Uninstallation 1. Click on Uninstall from Windows Start menu. 2. Keep your modem connected and click on OK. 3. Click on Finish to complete the Uninstallation. September 2004 6205-A2-GZ40-10... - Page 11 4. Unplug your USB modem and click on OK. 6205-A2-GZ40-10 September 2004...
-
Page 12: Device Status
Device Status This chapter describes how to obtain Hotwire 6205 system information when you double-click the small triangle icon on the right-bottom of the taskbar. After you click the icon, you’ll see the status page, which will tell you that the modem is idle, handshaking or operational. -
Page 13: Important Safety Instructions
Support -> Technical Manuals -> Declarations of Conformity. FCC Part 15 Declaration An FCC Declaration of Conformity may be downloaded from the Paradyne World Wide Web site at www.paradyne.com. Select Support -> Technical Manuals -> Declarations of Conformity. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 14: Notice To Users Of The United States Telephone Network
03 represents a REN of 0.3. If the modem causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the Telephone Company will notify the customer as soon as possible. - Page 15 CANADA – EMI NOTICE: This Class B digital apparatus meets all requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la classe B respecte toutes les exigences du règlement sur le matérial brouilleur du Canada. Japan Notices 6205-A2-GZ40-10 September 2004...
