Paradyne HotWire 8800 DSLAM Installation Instructions

Replacement Air Filter for the
HotWire 8800 DSLAM

Installation Instructions

Document Number 8800-A2-GN10-00
May 1997
What is an Air Filter?
Installing the Replacement Air Filter
8800-A2-GN10-00
TM
The air filter prevents dust from entering the HotWire 8800 Digital Subscriber Line
Access Multiplexer (DSLAM) chassis. Install an air filter when the 8800 chassis is
in a dusty or unfiltered environment. Once the filter is installed, you should
inspect and/or replace the air filter periodically, or whenever the fan alarm is
active.

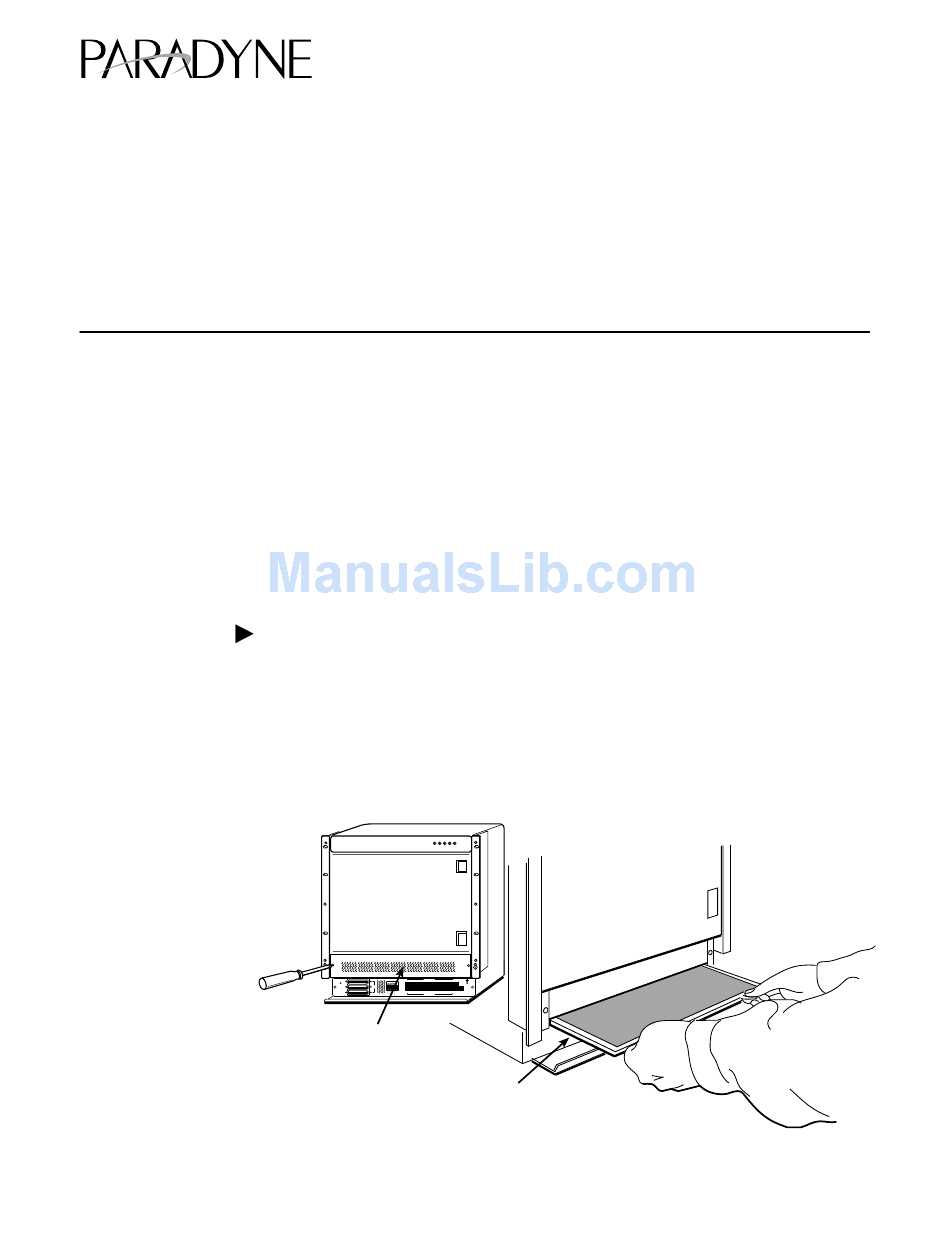

Procedure
To install the replacement air filter:
1. Unfasten the screws on the cover plate and remove it.
2. Remove the old air filter by sliding it out.
3. Slide the replacement air filter into the air filter channel guides.
4. Replace the cover plate and fasten screws.
