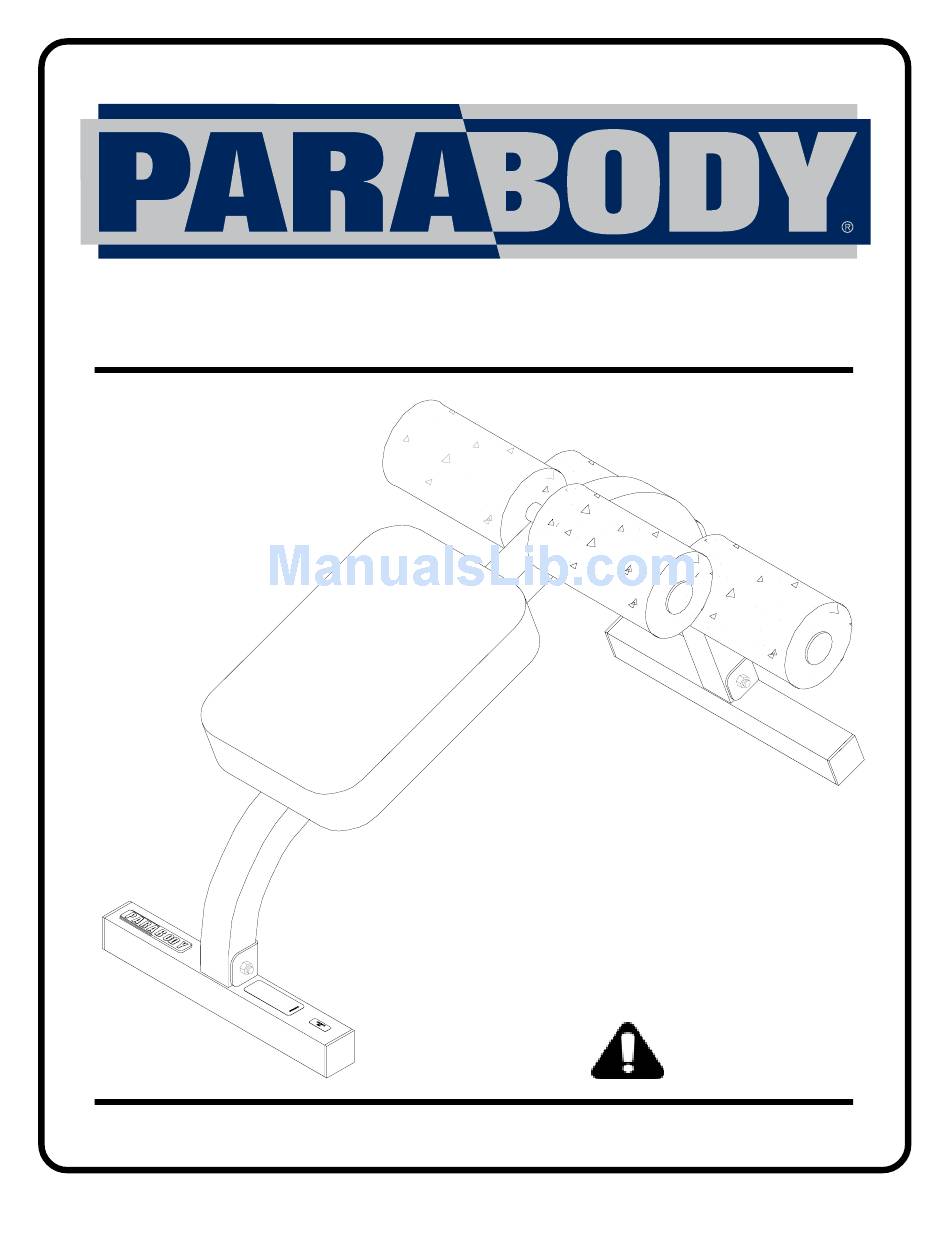

- Page 1 855 AB CRUNCH BENCH USER’S GUIDE CLASS H PART # 7303901 REV. A WARNING: Read and follow all directions for each step to insure proper assembly of this product. Version: 855108 Revision: 06/18/02...
- Page 2 7. Inspect cables and their connections before using machine. Pay particular attention to the cable ends. DO NOT attempt to fix. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician. 8. Make sure all spring loaded pull pins are fully engaged in the adjustment position and fully tighten thumbscrew before use.
-
Page 3: Tools Required For Assembly
Please note: * Thank you for purchasing the ParaBody 855 AB Crunch Bench. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. * This product must be assembled on a flat, level surface to assure its proper function. DO NOT securely tighten any frame connections until the entire frame has been assembled, unless otherwise stated. -
Page 4: Parts List
DESCRIPTION PART # BENCH FRAME LEA6560109 TUBE LEA6560009 PAD ASSEMBLY LEA6597421 3/8” LOCK WASHER LEA3114502 3/8” LOCK NUT LEA3114702 3/8 X 2-3/4” BOLT LEA3235211 3/8 X 2-3/4” 6 FIGURE 1 STEP 1: • Insert four 2” SQ. END CAPS (7) into the ends of the TUBES (2)&(11) as shown in FIGURE 1. •... - Page 5 FIGURE 2 STEP 2: • SECURELY assemble the PAD (3) to the BENCH FRAME (1) using two 3/8” X 2-3/4” BOLTS (6), two 3/8” LOCK WASHERS (4). See FIGURE 2. 3/8 X 2-3/ 4”...
- Page 6 FIGURE 3 STEP 3: • Slide the four ROLLER PADS (9) onto two 3/4 X 16” TUBES (8) using four STARLOCK COLLARS (10) as shown in FIGURE 3. THIS CONCLUDES THE ASSEMBLY OF THE 855 AB CRUNCH BENCH...
- Page 7 Please note: * We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy water. Touch-up paint can be purchased from your ParaBody customer service representative at (800) 328-9714. * Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
-
