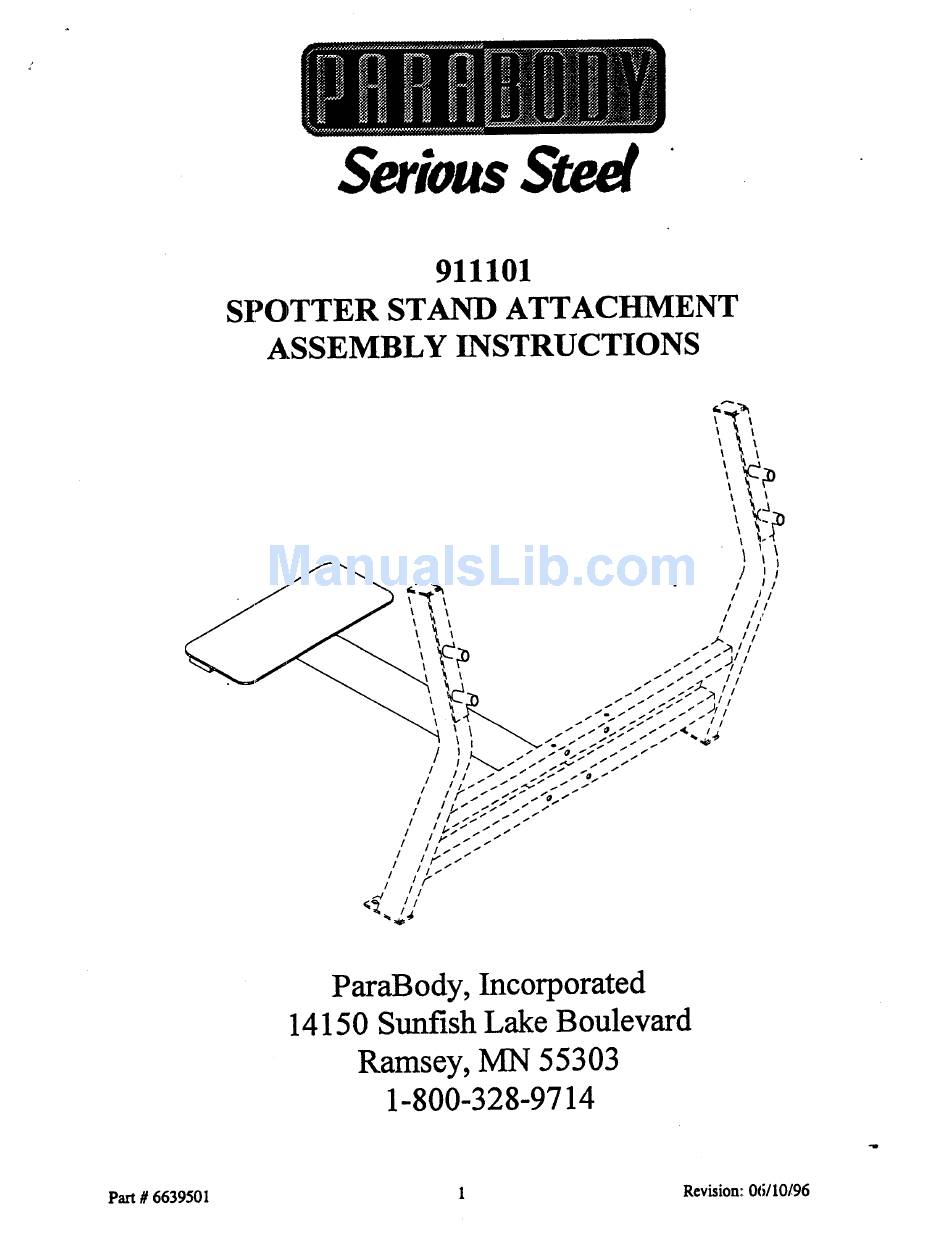

- Page 1 Serious Steel 911101 SPOTTER STAND ATTACHMENT ASSEMBLY INSTRUCTIONS ParaBody, Incorporated 14150 Sunfish Lake Boulevard Ramsey, MN 55303 1-800-328-9714 Revision: 06/10196 Part # 6639501...
- Page 2 911101 SPOTTER STAND ATTACHMENT ASSEMBLY PARTS ]LIST SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY HARDWARE: ITEM NAME/DESCRIPTION 1/2 X 3-1/4 IN BOLT 3 X 2 INEND CAP ... WELDMENTS/PARTS: ITEM NAME/DESCRIPTION NOTE: BOLT LENGTH IS MEASURED FROM ~ UNDERSIDE OF THE I:I~AD OF ’rE[:E BOLT LENGTH BOLT LENGTH RULER:’,...
- Page 3 911101 SPOTTER STAND ATTACHMENT ASSEMBLY INSTRLICTIONS Loosen and remove hardware that attaches the BENCH FRAME WELDMENT to the LOWER CROSS SUPI[’ORT of the UPRIGHT FRAME WELDMENT. Insert two (2) 3 X 2 IN END CAPS into the ends of the SPOTTER STAND ATTACHMENT as shown on drawing.
