Page 1: Assembly Instructions

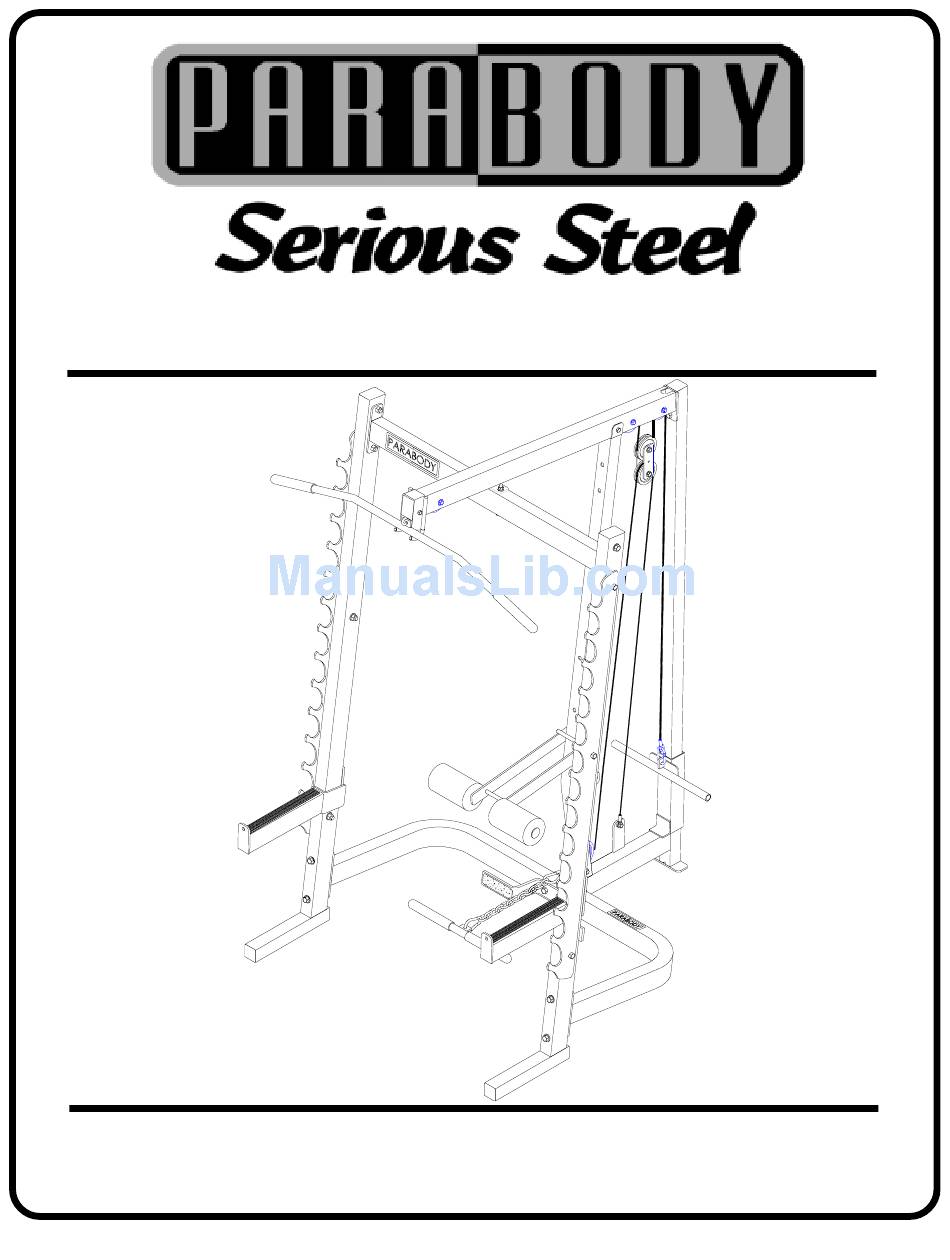

893104 PRO SYSTEM ASSEMBLY INSTRUCTIONS Part # 6817401 Revision:6/8/99... -
Page 2: Tools Required For Assembly
2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714. - Page 3 PART # DESCRIPTION 6816103 TOP BOOM 6815703 UPRIGHT FRAME 6815203 KNEE SUPPORT 6814803 UPRIGHT SUPPORT 6815003 FRONT UPRIGHT 6816302 FOOT PLATE 6798103 UPPER CROSS SUPPORT 6801102 LAT BAR SUPPORT 6275302 LAT BAR 6274402 LOW ROW BAR 6807602 LEFT SAFETY RAIL 6807702 RIGHT SAFETY RAIL 6546302...
- Page 4 STEP 2: • Attach two NON-SKID STRIPS (24) to the FOOT PLATE (6) as shown in FIGURE 2. FIGURE 3 STEP 3: • Insert four 2” SQ. END CAPS (22) & two 3 X 2” END CAPS (19) to the ends of the FRONT UPRIGHTS (5) as shown in FIGURE 3. •...
-
Page 5: Step
1/2 X 3-1/4” 36 FIGURE 4 STEP 4: • LOOSELY assemble the FOOT PLATE (6) and the UPRIGHT FRAME (2) to the UPRIGHT SUPPORT (4) using two 1/2” X 3-1/4” BOLTS (36) and two 1/2” LOCK NUTS (44) as shown in FIGURE 4. •... -
Page 6: Step
FIGURE 5 STEP 5: • LOOSELY assemble the UPPER CROSS SUPPORT (7) to the top set of holes of the FRONT UPRIGHTS (5) as shown in FIGURE 5 using two 1/2 X 3” BOLTS (35), two 1/2” WASHERS (43), and two 1/2” LOCK NUTS (44). •... -
Page 7: Step
FIGURE 6 STEP 6: • Attach six 3-1/4 X 1-3/4” GLIDES (26) to the LEFT & RIGHT SAFETY RAILS (11 & 12) as shown in FIGURE 6, using the following steps: • Thoroughly clean all surfaces where the 3-1/4 X 1-3/4” GLIDES (26) are to be attached. •... - Page 8 FIGURE 8 STEP 8: • LOOSELY assemble the TOP BOOM (1) to the UPRIGHT FRAME (2) using one 1/2 X 2-1/2” BOLTS (34), one 1/2 X 3” BOLT (35), two 1/2” WASHERS (43), and one 1/2” LOCK NUT (44) as shown in FIGURE 8. •...
-
Page 9: Step
FIGURE 10 STEP 10: • Route one CABLE (18) through the TOP BOOM (1) as shown in FIGURE 10. (NOTE: Make sure CABLE is routed over bolt!) • SECURELY assemble three 3-1/2” PULLEYS (16) into the slots of the TOP BOOM (1) using three 3/8 X 2-3/4” BOLTS (32), six 3/8” FLANGE SPACERS (39), and three 3/8”... -
Page 10: Step
FIGURE 11 STEP 11: • Attach the CABLE (18) from the TOP BOOM (1) to the CARRIAGE (13) using one 1/4” QUICK LINK (48) as shown in FIGURE 11. (IMPORTANT! Securely tighten QUICK LINK.) • Place one 3-1/2” PULLEY (16) into the loop of the CABLE (18) below the second and third PULLEY of the TOP BOOM (1) as shown in FIGURE 11. -
Page 11: Figure
FIGURE 12 STEP 12: • Route the end of the second CABLE (18) through the slot of the UPRIGHT FRAME (2) then SECURELY assemble one 4-1/2” PULLEY (17) to the UPRIGHT FRAME (2) using two 3/8 X 2-3/4” BOLTS (32), two 3/8” FLANGE SPACERS (39), two 3/8” WASH- ERS (40), and two 3/8”... - Page 12 FIGURE 14 STEP 14: • SECURELY assemble the CABLE (18) to the plate on the UPRIGHT FRAME (2) using one 3/8 X 1-1/4” BOLT (30), two 3/8” WASHERS (40), and one 3/8” LOCK NUT (42). See FIGURE 14. • SECURELY tighten the bolts of the PULLEY BLOCK ROUND FIGURE 15 STEP 15:...
- Page 13 UPRIGHT FRAME (2) as shown in FIGURE 16. Thank you for purchasing the Parabody 893104 PRO SYSTEM. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
