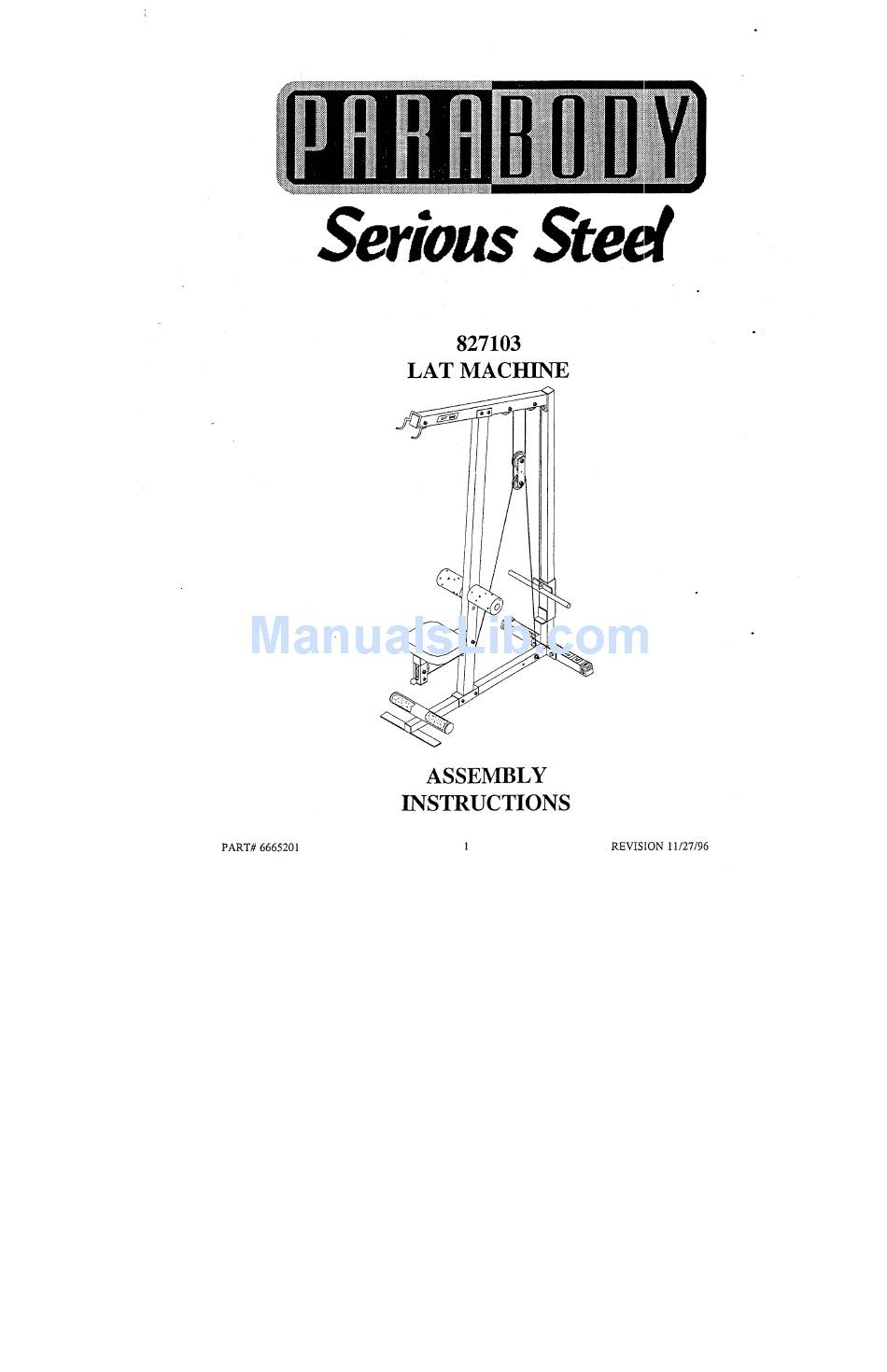

- Page 1 Serious 827103 LAT MACHINE ASSEMBLY INSTRUCTIONS REVISION 11/27/96 PART# 6665201...
- Page 2 827103 LAT MACHINE ASSEMBLY INSTRUCTIONS SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY HARDWARE: ITEM NAlVIE/DESCRIPTION 3/8 IN WASHER 1/2 IN WASHER 3/8 IN LOCK WASHER 1/2 IN LOCK WASHER 3/8 IN LOCK NUT ... 1/2 IN LOCK NUT ...
- Page 3 827103 LAT ~IACHINE NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT. .iiiiiii BOLT LENGTH BOLT LENGTH RULER: Insert one (1) 2" END CAP and two (2) 2-1/2" OD END CAPS into the open ends of the BASE.
