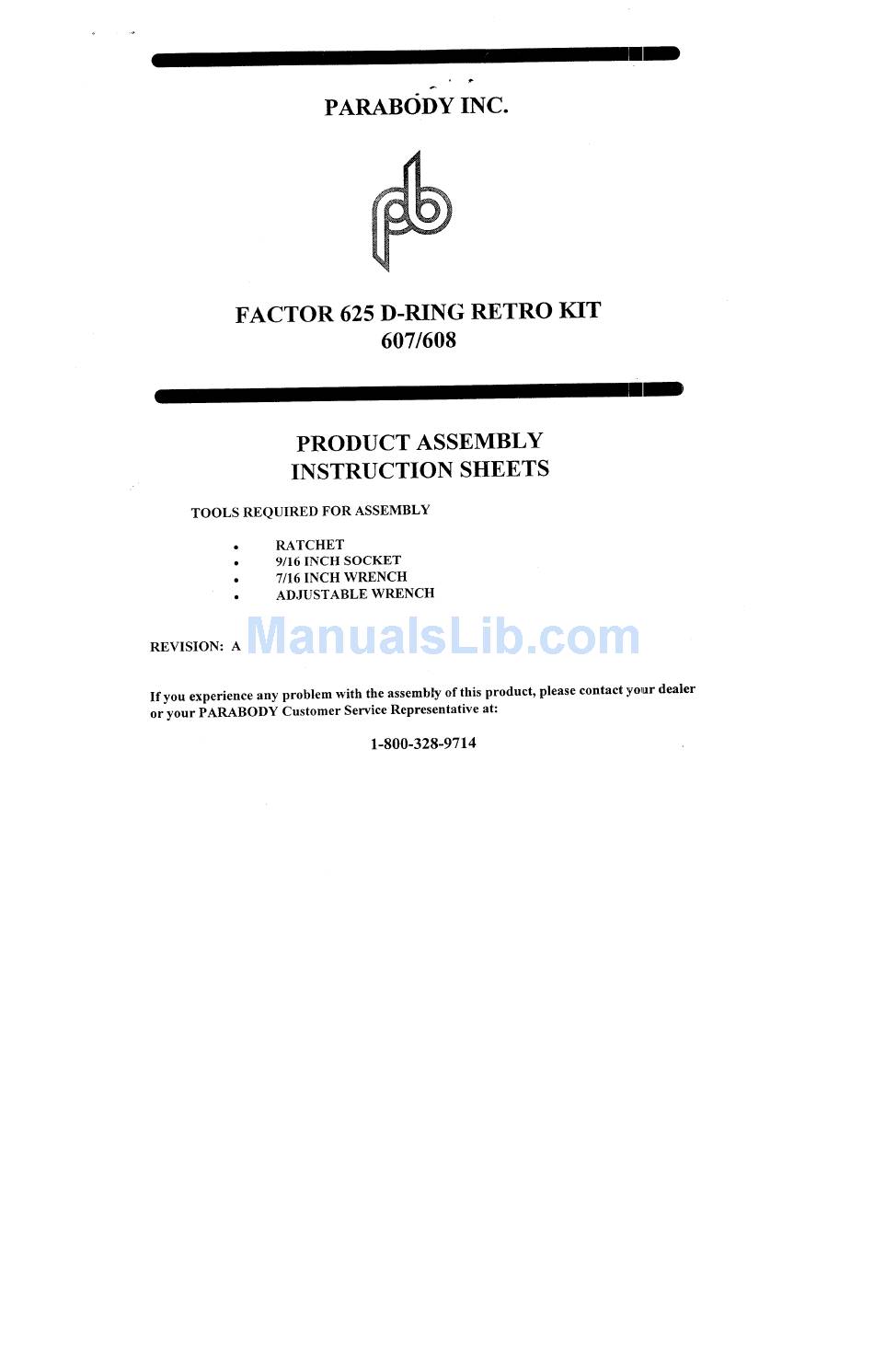

PARAB6DY INC.
FACTOR 625 D-RING RETRO KIT
607/608
PRODUCT ASSEMBLY
INSTRUCTION SHEETS
TOOLS REQUIRED FOR ASSEMBLY
RATCHET
9/16 INCH SOCKET
7/16
INCH WRENCH
ADJUSTABLE
WRENCH
REVISION: A
If you experience any problem with the assembly of this product, please contact yo~ar dealer
or your PARABODY
Customer Service Representative
at:
1-800-328-9714
Advertisement
Related Manuals for ParaBody 607
Summary of Contents for ParaBody 607
- Page 1 INSTRUCTION SHEETS TOOLS REQUIRED FOR ASSEMBLY RATCHET 9/16 INCH SOCKET 7/16 INCH WRENCH ADJUSTABLE WRENCH REVISION: A If you experience any problem with the assembly of this product, please contact yo~ar dealer or your PARABODY Customer Service Representative 1-800-328-9714 607/608...
- Page 2 607/608 FACTOR 625 D-RING HARDWARE/PARTS: ITEM NAME/DESCRIPTION D-RING WLDMNT ROTARY CABLE LEG PRESS/ROTARY CABLE ... ~ ..~..( 6406101) PEC/D-RING CABLE ..X..( 6405801) ... MULTI PRESS CABLE ... LAT CABLE SWIVEL D-RING CABLE CLIP ...
- Page 3 607/608 FACTOR 625 D-RING RETRO KIT ASSEMBLY INSTRUCTIONS STEP 1: D-RING’INSTALLATION To assemble the new D-RING to the FACTOR ¯ Remove all the CABLES from the old D-RING. ¯ Loosen, and remove the two (2) 1/4-20 NUTS, and the 1/4 IN. WASHER RING CABLE.
- Page 4 607/608 FACTOR 625 D-RING RETRO KIT ASSEMBLY INSTRUCTIONS Replace the remaining CABLES in the following’or~er using the steps outlined in STEP 2: (PLEASE REPLACE ONE CABLE AT A TIME, REPLACING IN A CLOCKWISE DIRECTION AROUND THE D-RING. SEE DRAWING) ¯...
