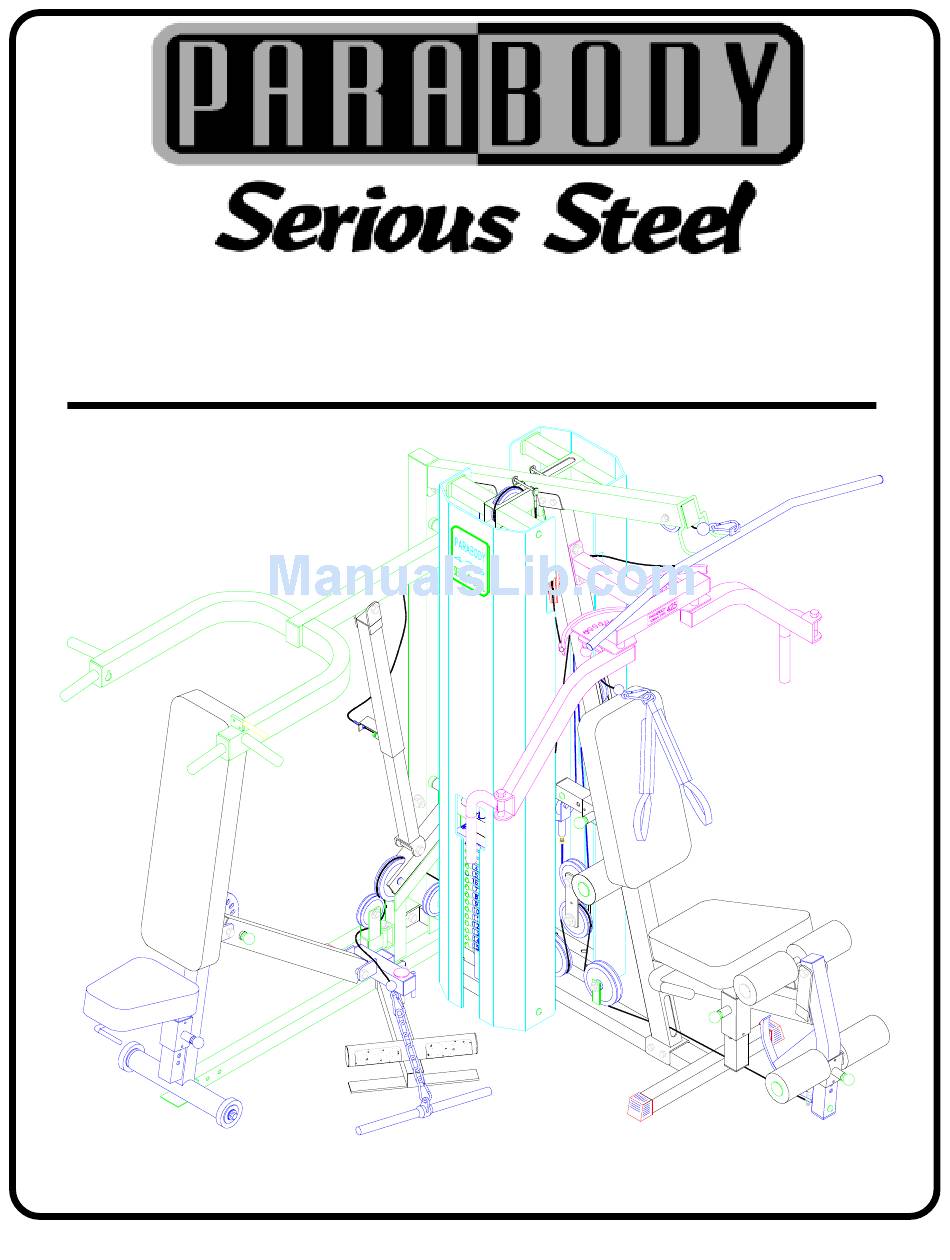

426103 ELASTIC CORD
CONVERSION KIT
Part # 6860801
1
Revision: 10/12/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 426103 and is the answer not in the manual?

Questions and answers

Related Manuals for ParaBody 426103

Summary of Contents for ParaBody 426103

  • Page 1 426103 ELASTIC CORD CONVERSION KIT Part # 6860801 Revision: 10/12/99...

  • Page 2: Table Of Contents

    PART # DESCRIPTION 3102903 3/8 X 2-1/2” BOLT 6122702 3/8 X 1/2” SPACER 3201501 SWIVEL SNAP 6271801 22” ELASTIC CORD 3118701 2” PULLEY FIGURE 1 STEP 1 • Remove the top of the front SHROUD & rear SHROUD by removing the four 3/8” X 1” BUTTON HEAD CAP SCREWS. See FIGURE 1. FIGURE 2 STEP 2 •...

  • Page 3: Clevis Pin

    STEP 3 • Remove the three 1/4” CAP NUTS and each TENSION CORD from the TOP BOOM as shown in FIGURE 3. STEP 4 • Remove the three TENSION CORDS from the D-RING by removing the three KEYHOLE CLEVIS, CLEVIS PINS, and COTTER PINS as shown in 4.

  • Page 4: Figure 6

    4-1/2” PULLEY 3/8” WASHER 3/8” X 2” BOLT FIGURE 5 STEP 5 • Remove the 3/8 X 2” BOLT, two 3/8” WASHERS, one 2-7/8” L-BRACKETS, one 4-1/2” PULLEY, and one 3/8” LOCK NUT from the upper flat on the BASE as shown in FIGURE 5. BASE 4-1/2”...
  • Page 5 BASE FIGURE 7 STEP 7 • Position two 3/8 X 1/2” SPACERS (2) inside the bracket on the BASE and slide one 3/8” THREADED SHAFT (9) through the bracket. See FIGURE 7. • Assemble two 3/8” HEX NUTS (8), two SWIVEL SNAP (3), and two 3/8” LOCK NUTS (7) to the 3/8” THREADED SHAFT (9) as shown in FIGURE 7.

  • Page 6: 3/8" Hex Nut

    3/8” LOCK NUT 3/8” WASHER FIGURE 8 STEP 8 • Remove the 3/8 X 2-1/4” BOLT, two 3/8” WASHERS, one 3/8” LOCK NUT, and 3-1/2” PULLEY from the bracket on the TOP BOOM as shown in FIGURE 8. 8 3/8” HEX NUT 3/8”...
  • Page 7 8 3/8” HEX NUT FIGURE 10 STEP 10 • Position two 3/8 X 1/2” SPACERS (2) inside the rear bracket of the TOP BOOM and slide one 3/8” THREAD SHAFT (9) through the bracket. See FIGURE 10. • SECURELY assemble two 2” PULLEYS (5) to the rear bracket on the TOP BOOM using one 3/8” THREADED SHAFT (9), two 3/8” WASHERS, two 3/8”...

  • Page 8: Lat Cable

    TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE FIGURE 12 STEP 12 • Assemble the 22” ELASTIC CORD (4) from the PRESS CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 12.
  • Page 9 TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE FIGURE 13 STEP 13 • Assemble the 22” ELASTIC CORD (4) from the LEG CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 13.
  • Page 10 TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE FIGURE 14 STEP 14 • Assemble the 22” ELASTIC CORD (4) from the LAT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 14.
  • Page 11 4 PRESS CABLE BASE FIGURE 15 STEP 15 • Assemble the ELASTIC CORD (4) from the PRESS CABLE to the SWIVEL SNAP (3) on the BASE as shown in FIGURE 15.
  • Page 12 BASE LEG CABLE 4 LAT CABLE 4 FIGURE 16 STEP 16 • Assemble the ELASTIC CORDS (4) from the LAT & LEG CABLES to the corresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 16.
  • Page 13 3/8” X 1” BUTTON HEAD CAP SCREWS. See FIGURE 18. The installation of the 426103 Elastic Cord Conversion Kit is complete. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at SHROUD 3/8”...
  • Page 14 425103 with 832 LEG PRESS OPTION INSTALLED • If the 445 WEIGHT STACK OPTION IS INSTALLED PROCEED TO PAGE 27. • If the 832 LEG PRESS OPTION & 445 WEIGHT STACK OPTION ARE INSTALLED PROCEED TO PAGE 35. FIGURE 3 CAP NUT CORD STEP 3...
  • Page 15 COTTER KEYHOLE CLEVIS CLEVIS D-RING FIGURE 4 STEP 4 • Remove the TENSION CORDS, CLEVIS PINS and COTTER PINS as shown in FIGURE 4.

  • Page 16: Base

    BASE 4-1/2” PULLEY 2-7/8” L-BRACKET 3/8” WASHER 3/8” X 2” BOLT FIGURE 5 STEP 5 • Remove two 3/8 X 2” BOLTS, four 3/8” WASHERS, two 2-7/8” L-BRACKETS, two 4-1/2” PULLEYS, and two 3/8” LOCK NUTS from the upper flats on the BASE as shown in FIGURE 5. BASE 3/8”...
  • Page 17 3-1/2” PULLEY 3/8 X 2” BOLT 3/8” WASHER BASE 3/8” WASHER 3/8” LOCK NUT FIGURE 7 STEP 7 • Remove one 3-1/2” PULLEY, one 3/8 X 2” BOLT, two 3/8” WASHERS and one 3/8” LOCK NUT from the BASE as shown in FIGURE 7. FIGURE 8 BASE 8 HEX NUT...
  • Page 18 3/8” LOCK NUT 3/8” WASHER FIGURE 9 STEP 9 • Remove the 3/8 X 2-1/4” BOLT, two 3/8” WASHERS, one 3/8” LOCK NUT, and 3-1/2” PULLEY from the bracket on the TOP BOOM as shown in FIGURE 9. 8 3/8” HEX NUT 3/8”...

  • Page 19: Leg Cable

    8 3/8” HEX NUT FIGURE 11 STEP 11 • Position two 3/8 X 1/2” SPACERS (2) inside the rear bracket of the TOP BOOM and slide one 3/8” THREAD SHAFT (9) through the bracket. See FIGURE 11. • SECURELY assemble two 2” PULLEYS (5) to the rear bracket on the TOP BOOM using one 3/8” THREADED SHAFT (9), two 3/8” WASHERS, two 3/8”...

  • Page 20: Figure 14

    STEP 13 • Assemble four 72” ELASTIC CORDS to the KEYHOLE CLEVIS as shown in FIGURE 13. LEG PRESS CABLE LEG EXT CABLE LAT CABLE FIGURE 14 STEP 14 • Assemble the 72” ELASTIC CORD (4) from the PRESS CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 14. FIGURE 13 ELASTIC CORD...
  • Page 21 TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE LEG PRESS CABLE FIGURE 15 STEP 15 • Assemble the 72” ELASTIC CORD (4) from the LEG PRESS CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 15.

  • Page 22: Figure 16

    TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE LEG PRESS CABLE FIGURE 16 STEP 16 • Assemble the 72” ELASTIC CORD (4) from the LEG EXT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 16.

  • Page 23: Step 17

    TOP BOOM LEG EXT CABLE PRESS CABLE LAT CABLE LEG PRESS CABLE FIGURE 17 STEP 17 • Assemble the 72” ELASTIC CORD (4) from the LAT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 17.

  • Page 24: Press Cable

    LEG PRESS CABLE PRESS CABLE BASE FIGURE 18 STEP 18 • Assemble the ELASTIC CORDS (4) from the PRESS CABLE and the LEG PRESS CABLE to the corresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 18.

  • Page 25: Leg Cable

    BASE LEG CABLE 4 LAT CABLE 4 FIGURE 19 STEP 19 • Assemble the ELASTIC CORDS (4) from the LAT & LEG CABLES to the corresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 19.
  • Page 26 3/8” X 1” BUTTON HEAD CAP SCREWS. See FIGURE 20. The installation of the 426103 Elastic Cord Conversion Kit is complete. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at SHROUD 3/8”...
  • Page 27 425103 with 445 WEIGHT STACK OPTION • If the 832 LEG PRESS OPTION & 445 WEIGHT STACK OPTION ARE INSTALLED PROCEED TO PAGE 35. FIGURE 3 CAP NUT CORD STEP 3 • Remove the 1/4” CAP NUTS and each TENSION CORD from the TOP BOOM as shown in FIGURE 3.

  • Page 28: Cotter Pin

    COTTER PIN KEYHOLE CLEVIS CLEVIS PIN LAT CABLE (67248) LEG CURL/EXTENSION CABLE (67247) D-RING FIGURE 4 STEP 4 • CAREFULLY remove the TENSION CORDS by pulling the COTTER PIN and CLEVIS PIN from the KEYHOLE CLEVIS as shown in FIGURE 4. •...
  • Page 29 BASE FIGURE 7 STEP 7 • Position two 3/8 X 1/2” SPACERS (2) inside the bracket on the BASE and slide one 3/8” THREADED SHAFT (9) through the bracket. See FIGURE 7. • Assemble two 3/8” HEX NUTS (8), two SWIVEL SNAP (3), and two 3/8” LOCK NUTS (7) to the 3/8” THREADED SHAFT (9) as shown in FIGURE 7.
  • Page 30 3/8” LOCK NUT 3/8” WASHER FIGURE 8 STEP 8 • Remove the 3/8 X 2-1/4” BOLT, two 3/8” WASHERS, one 3/8” LOCK NUT, and 3-1/2” PULLEY from the bracket on the TOP BOOM as shown in FIGURE 8. 8 3/8” HEX NUT 3/8”...
  • Page 31 STEP 10 • Assemble two 72” ELASTIC CORDS to the KEYHOLE CLEVIS as shown in FIGURE 10. (NOTE: The LAT or LEG CABLE can be moved over one hole on the D-RING so the KEYHOLE CLEVIS are evenly spaced as shown in FIGURE 10.) LAT CABLE FIGURE 11 STEP 11...
  • Page 32 TOP BOOM LEG EXT CABLE LAT CABLE FIGURE 12 STEP 12 • Assemble the 72” ELASTIC CORD (4) from the LEG EXT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE...
  • Page 33 BASE LEG CABLE 4 LAT CABLE 4 FIGURE 13 STEP 13 • Assemble the ELASTIC CORDS (4) from the LAT & LEG EXT CABLES to the corresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 13.
  • Page 34 3/8” X 1” BUTTON HEAD CAP SCREWS. See FIGURE 15. The installation of the 426103 Elastic Cord Conversion Kit is complete. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at SHROUD 3/8”...
  • Page 35 425103 with 832 LEG PRESS OPTION & 445 WEIGHT STACK OPTION INSTALLED • If the 832 LEG PRESS OPTION IS INSTALLED PROCEED TO PAGE 14. • If the 445 WEIGHT STACK OPTION IS INSTALLED PROCEED TO PAGE 27. CAP NUT CORD FIGURE 3 STEP 3...
  • Page 36 KEYHOLE CLEVIS COTTER CLEVIS D-RING FIGURE 4 STEP 4 • Remove the TENSION CORDS, CLEVIS PINS and COTTER PINS as shown in FIGURE 4.
  • Page 37 BASE 4-1/2” PULLEY 2-7/8” L-BRACKET 3/8” WASHER FIGURE 5 STEP 5 • Remove two 3/8 X 2” BOLTS, four 3/8” WASHERS, two 2-7/8” L-BRACKETS, two 4-1/2” PULLEYS, and two 3/8” LOCK NUTS from the upper flats on the BASE as shown in FIGURE 5. BASE 3/8”...

  • Page 38: Threaded Shaft

    3-1/2” PULLEY 3/8 X 2” BOLT 3/8” WASHER BASE 3/8” WASHER 3/8” LOCK NUT FIGURE 7 STEP 7 • Remove one 3-1/2” PULLEY, one 3/8 X 2” BOLT, two 3/8” WASHERS and one 3/8” LOCK NUT from the BASE as shown in FIGURE 7. FIGURE 8 BASE 8 HEX NUT...
  • Page 39 3/8” LOCK NUT 3/8” WASHER FIGURE 9 STEP 9 • Remove the 3/8 X 2-1/4” BOLT, two 3/8” WASHERS, one 3/8” LOCK NUT, and 3-1/2” PULLEY from the bracket on the TOP BOOM as shown in FIGURE 9. 8 3/8” HEX NUT 3/8”...
  • Page 40 3/8” X 1” 10 FIGURE 11 STEP 11 • SECURELY assemble one 3/8 X 1” BOLT (10), one 3/8” WASHER (6), one 2” PULLEY (5) and one 3/8” LOCK NUT (7) to the bracket on the TOP BOOM as shown in FIGURE 11. LEG EXT CABLE LAT CABLE FIGURE 12...

  • Page 41: Leg Press Cable

    FIGURE 14 STEP 14 • Assemble three 72” ELASTIC CORDS to the KEYHOLE CLEVIS as shown in FIGURE 14. TOP BOOM LEG EXT CABLE LEG PRESS CABLE LAT CABLE FIGURE 15 STEP 15 • Assemble the 22” ELASTIC CORD (4) from the LEG EXT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 15.
  • Page 42 TOP BOOM LEG EXT CABLE LEG PRESS CABLE LAT CABLE FIGURE 16 STEP 16 • Assemble the 72” ELASTIC CORD (4) from the LAT CABLE around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 16.
  • Page 43 LEG PRESS CABLE BASE FIGURE 17 STEP 17 • Assemble the ELASTIC CORDS (4) from the PRESS CABLEand the LEG PRESS CABLE to the coresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 17.
  • Page 44 BASE LEG CABLE 4 LAT CABLE 4 FIGURE 18 STEP 18 • Assemble the ELASTIC CORDS (4) from the LAT & LEG CABLES to the corresponding SWIVEL SNAPS (3) on the BASE as shown in FIGURE 18.
  • Page 45 3/8” X 1” BUTTON HEAD CAP SCREWS. See FIGURE 20. The installation of the 426103 Elastic Cord Conversion Kit is complete. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at SHROUD 3/8”...

This manual is also suitable for:

Serious steel 426103
