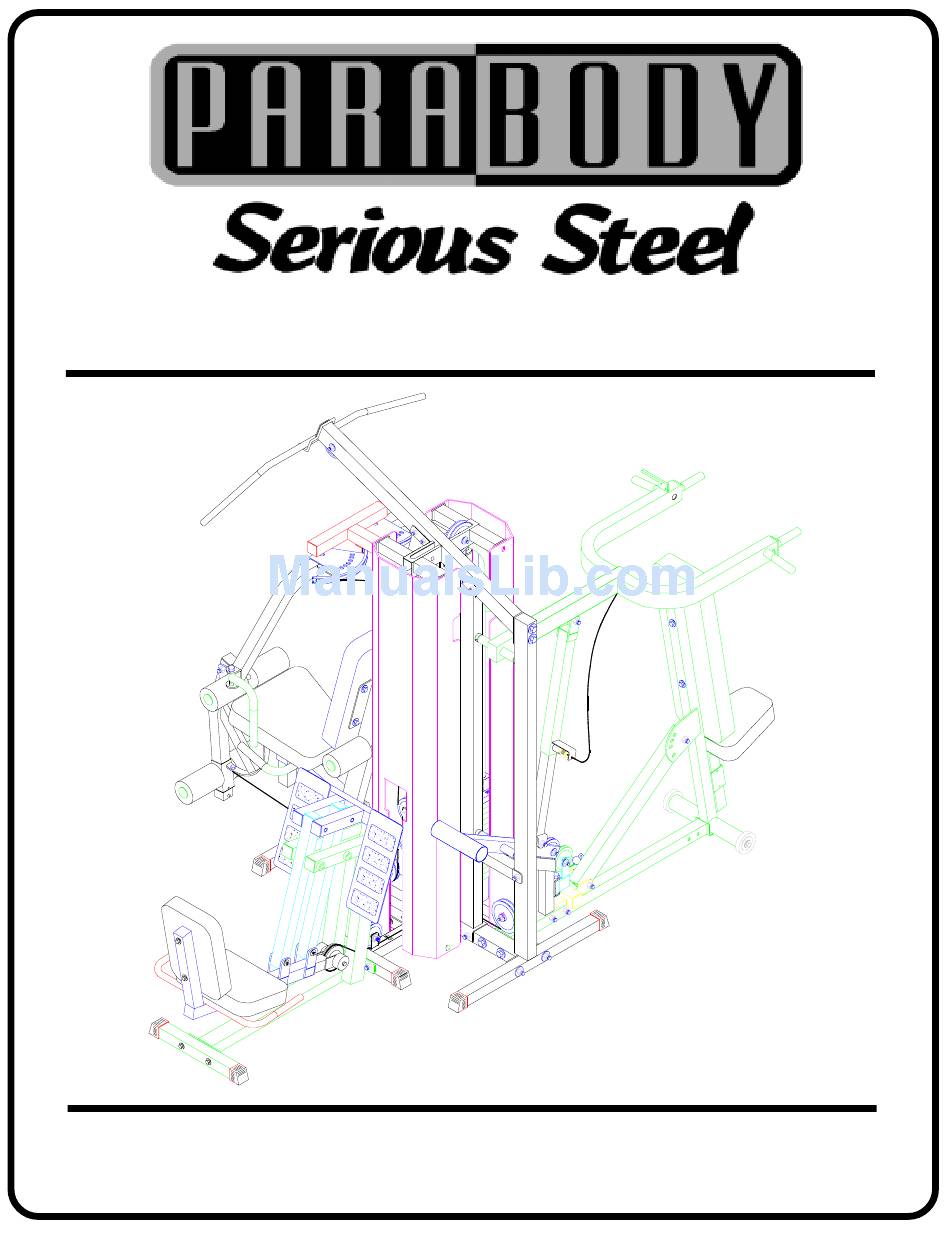

435104 LEG PRESS ADAPTER KIT ASSEMBLY INSTRUCTIONS Part # 6865101 Revision: 2/15/00... -
Page 2: Welcome To The World Of
2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714. -
Page 3: Parts List
GYM. See FIGURE 1. PARTS LIST PART # 3102701 3102501 3102802 3102502 3102801 3102902 3102910 3102909 PARABODY 425104 HOME GYM DESCRIPTION 3/8” HEX NUT 3/8” WASHER 3/8” LOCKNUT 1/2” WASHER 1/2” LOCKNUT 3/8 X 2-1/4” BOLT 1/2 X 3” BOLT 3/8 X 1”... - Page 4 REAR SHROUD FIGURE 2 STEP 2 • If the 445104 SECOND STACK OPTION is not installed, the rear SHROUD opening must be removed. Apply pressure to the bottom of the SHROUD where the “V” groove is and carefuly remove the weight stack opening on the SHROUD as shown in FIGURE 2.
- Page 5 ELASTIC CORD BASE HEX NUT 3/8” LOCK NUT SWIVEL SNAP 3/8” THREADED SHAFT 3/8 X 1/2” SPACERS (DISCARD) 3/8” LOCK NUT HEX NUT SWIVEL SNAP FIGURE 3 STEP 3 • Remove two 3/8” LOCK NUTS, two 3/8” HEX NUTS, two SWIVEL SNAP (68) (keep elastic cords attached), two 3/8 X 1/2”...
- Page 6 FIGURE 4 3/8” LOCK NUT SWIVEL SNAP 3/8” THREADED SHAFT STEP 4 • Assemble the two previously removed 3/8” HEX NUTS, two previously removed SWIVEL SNAPS, one 3-1/2” PULLEY (2), and two previously removed 3/8” LOCK NUTS to the previously removed 3/8” THREADED SHAFT as shown in FIGURE 4. BASE 4-1/2”...
- Page 7 BASE 3/8” WASHER FIGURE 6 STEP 6 • SECURELY assemble the previously removed 4-1/2” PULLEY to the BASE using one 3/8 X 2-1/4” BOLT (14), two previously removed 3/8” WASHERS, one previously removed 2-7/8” L-BRACKET, one SWIVEL SNAP (6), one 3/8” HEX NUT (9), and one previously removed 3/8”...
- Page 8 3/8” X 1” 16 FIGURE 7B (WITH 445104 SECOND STACK OPTION) STEP 7B • If the 445104 SECOND STACK OPTION is NOT installed proceed to STEP 8 . • SECURELY assemble one 3/8 X 1” BOLT (16), one 3/8” WASHER (10), one 2” PULLEY (5) and one 3/8” LOCK NUT (11) to the bracket on the TOP BOOM as shown in FIGURE 7B.
-
Page 9: Leg Press
FIGURE 9 STEP 9 • SECURELY attach the LEG PRESS to the FRONT LEG (1) using two 1/2” X 3” BOLTS (15), two 1/2” WASHERS (12), and two 1/2” LOCK NUTS (13). See FIGURE 9. • Route LEG PRESS CABLE (8) around the 3-1/2” PULLEY on the LEG PRESS and UNDER the 3-1/2” PULLEY on the FRONT LEG (1) as shown in FIGURE 9. - Page 10 BASE 1/2 X 3” 15 FIGURE 10 STEP 10 • SECURELY attach the FRONT LEG (1) to 425 BASE using two 1/2 X 3” BOLTS (15), two 1/2” WASHERS (12) and two 1/2” LOCK NUTS (13). See FIGURE 10. • Route LEG PRESS CABLE (8) under the 3-1/2” PULLEY on the 425 BASE as shown in FIGURE 10.
- Page 11 SEE DETAIL 11 STEP 11 • Run the LEG PRESS CABLE through the correct hole on the d-ring and attach one KEYHOLE CLEVIS to the end of the LEG PRESS CABLE. See FIGURE 11 & DETAIL 11. (NOTE: If the 445101 SECOND STACK kit is installed, evenly space the LAT & LEG EXT. CABLES on the D-RING) STEP 12 •...
-
Page 12: Leg Press Cable
FIGURE 12 STEP 12 • Assemble the 72” ELASTIC CORD (7) from the LEG PRESS CABLE (8) around the 2” PULLEY (5) in the TOP BOOM as shown in FIGURE 12. STEP 13 • Assemble the ELASTIC CORD(7) from the LEG PRESS CABLE to the corresponding SWIVEL SNAP (6) on the BASE as shown in FIGURE 13. - Page 13 To use, you must slightly push against the foot plates to take tension off the pin. Thank you for purchasing the Parabody 435104 Leg Press Adapter Kit. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
