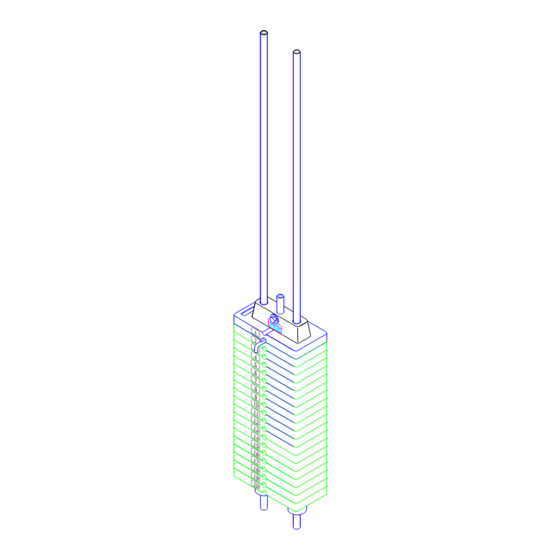

359101 50 LB. ADD-ON KIT

ASSEMBLY INSTRUCTIONS

Part # 6827301
1
Revision: 3/30/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 359101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ParaBody 359101

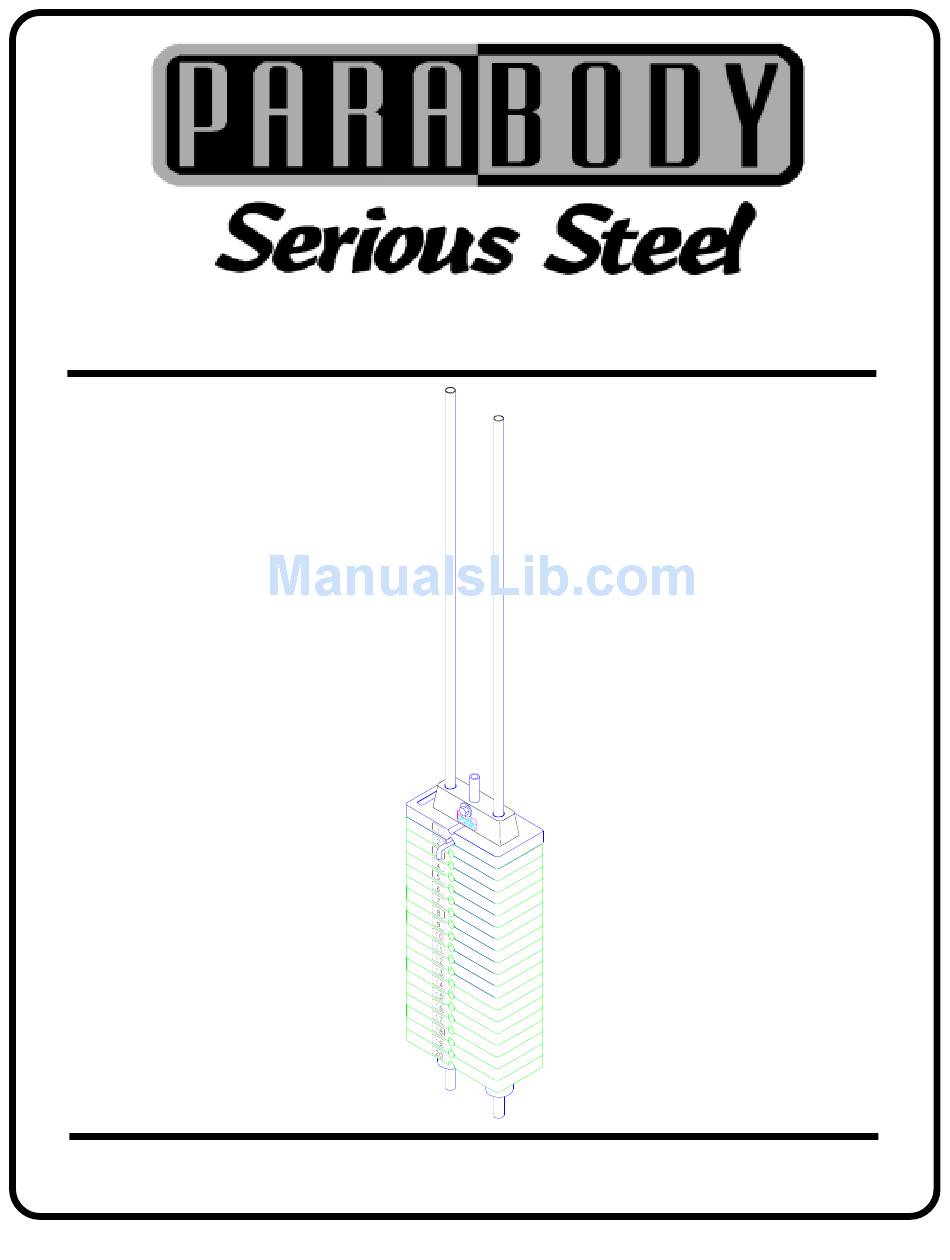

  • Page 1: Assembly Instructions

    359101 50 LB. ADD-ON KIT ASSEMBLY INSTRUCTIONS Part # 6827301 Revision: 3/30/99...
  • Page 2: Parts List

    PART # DESCRIPTION 6284501 20 HOLE WEIGHT STACK SHAFT 6382301 WEIGHT PLATE BUSHING 10 CT FIGURE 1 STEP 1: • Snap two WEIGHT PLATE BUSHINGS (3) into the top of all five WEIGHT PLATES (6) as shown in FIGURE 1. PARTS LIST PART # 6198501...
  • Page 3 • Unthread the CABLE from the WEIGHT STACK SHAFT of the HEAD PLATE as shown in FIGURE 2. • Remove or loosen the TOP BOOM or GUIDE ROD SUPPORT. (Refer to Home Gym instructions) • Tilt the GUIDE RODS back and remove the HEAD PLATE ASSEMBLY, fifteen WEIGHT PLATES, two WEIGHT STACK CUSHIONS, two 3/4”...
  • Page 4 WEIGHT STACK CUSHION Thank you for purchasing the Parabody 359101 50 LB. ADD-ON KIT. If unsure of proper use of equipment, call your local LifeFitness distributor or call the Parabody customer service department at (800) 328-9714. STEP 4: • SECURELY assemble the 20 HOLE WEIGHT STACK SHAFT (1) to the HEAD PLATE.
