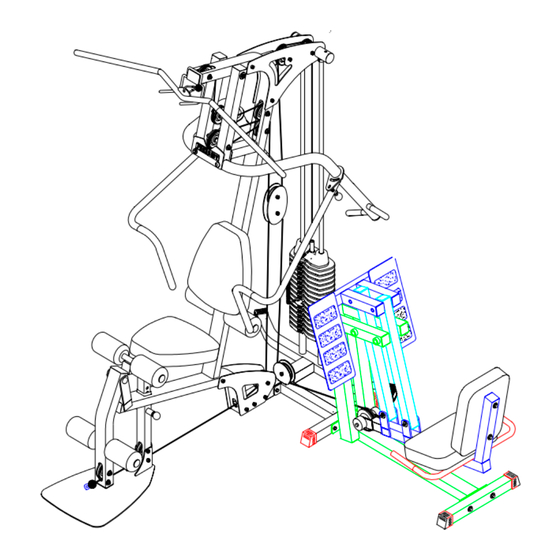

- Page 1 221 LEG PRESS ADAPTER KIT FOR 220 GYM SYSTEM USER’S GUIDE CLASS H PART # 7031101 REV. B WARNING: Read and follow all directions for each step to insure proper assembly of this product. Version: 221101 Revision: 03/05/01...
- Page 2 7. Inspect cables and their connections before using machine. Pay particular attention to the cable ends. DO NOT attempt to fix. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician. 8. Make sure all spring loaded pull pins are fully engaged in the adjustment position and fully tighten thumbscrew before use.
-
Page 3: Tools Required For Assembly
Please note: * Thank you for purchasing the ParaBody 221 Leg Press Adapter Kit. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. - Page 4 1’ 1’ 2’ 3’ 4’ 5’ 6’ 7’ 8’ 1 Square = 1’ X 1’ Minimum Required Usable Space Length Width Height Dimensions Including Leg Press (optional) Length Width 3’ 5’ 2’ 4’ = 82 inches (208.5 cm) 6’ 10” = 71 inches (180.5 cm) 5’11”...
-
Page 5: Parts List
3108102 QUICK DISCONNECT LINK NOTE: The LEG PRESS ATTACHMENT (100) must be assembled before connecting it to the PARABODY 220 GYM SYSTEM and can be attached to either side of the 220 GYM SYSTEM FIGURE 1 STEP 1: • Remove the LEG CABLE by removing the bolts shown in FIGURE 1. Discard the old LEG CABLE and the bolt holding the CABLE to the base. - Page 6 10 3/8 X 4” FIGURE 2 STEP 2: • Slide two 2” COVER CAPS (4) over the FRONT LEG (1) as shown in FIGURE 2 • SECURELY assemble the FRONT LEG (1) to the 220 Gym System using two 3/8 X 4” BOLTS (10), one previously removed 3/8”...
- Page 7 FIGURE 3 STEP 3: • Assemble the new LEG CABLE (2) using the previously removed bolts as shown in FIGURE 3. (NOTE: Make sure the LEG CABLE is running in the grooves of all pulleys and above the retaining bolts.)
- Page 8 FIGURE 4 STEP 4: • SECURELY assemble one 3-1/2” PULLEY (3) to the FRONT LEG (1) using one 3/8 X 1-3/4” BOLT (8) and one 3/8” LOCK NUT (7). See FIGURE 4. 3/8 X 1-3/4” 8...
- Page 9 3/8 X 3” 9 FIGURE 5 STEP 5: • SECURELY attach the 100 LEG PRESS to the FRONT LEG (1) using two 3/8” X 3” BOLTS (9), four 3/8” WASHERS (6), and two 3/8” LOCK NUTS (7). See FIGURE 5. •...
- Page 10 THIS CONCLUDES THE ASSEMBLY OF THE 221 LEG PRESS ADAPTER KIT Thank you for purchasing the Parabody 221 Leg Press Adapter Kit. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
- Page 11 Please note: * We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy water. Touch-up paint can be purchased from your Parabody customer service representative at (800) 328-9714. * Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
-
Page 12: Limited Warranty
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONLY. 1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired or replaced by ParaBody. - Page 13 Room 2610, Miramar Tower 132 Nathan Road, Tsimshatsui Kowloon, Hong Kong Phone: (852) 2891-6677 Fax: (852) 2575-6001 LIFE FITNESS www.parabody.com Life Fitness (UK) Ltd. Queen Adelaide Ely, Cambs CB7 4UB United Kingdom Phone CSS: (01353) 665507 Fax CSS: (01353) 666719 Life Fitness Benelux N.V.
